Define Inner Cut to Edge command creates a gap on the sweep.

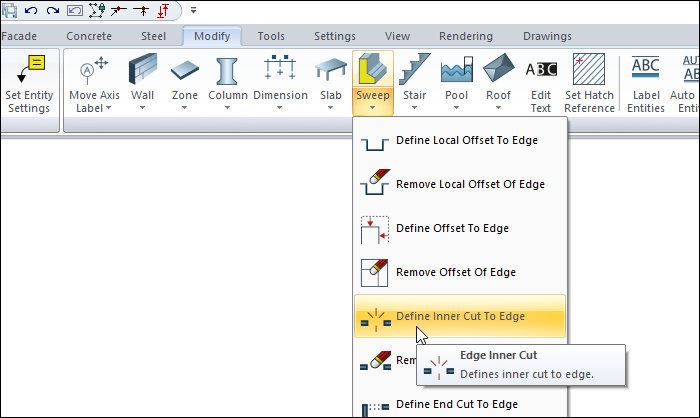

Location of Define Inner Cut to Edge Command
You can access it from the ribbon menu Modify tab under Entity Edit title.
Usage Steps
-
Click the Define Inner Cut to Edge icon.
-
Click the desired edge on the profile object you previously drew.
-
At this stage, enter the delay amount in the "Application Distance" box on the sweep operations toolbar.
-
Move the mouse to locate the opening on the edge and click with the left mouse button.
-
A space equal to the value entered in the Application Distance box is created.
-
After the gap is created, the gap distance can be changed by pressing the Esc key and sliding the mouse.
-
Quit the command by pressing the Esc key on the keyboard.
|
Usage step |
|---|
|

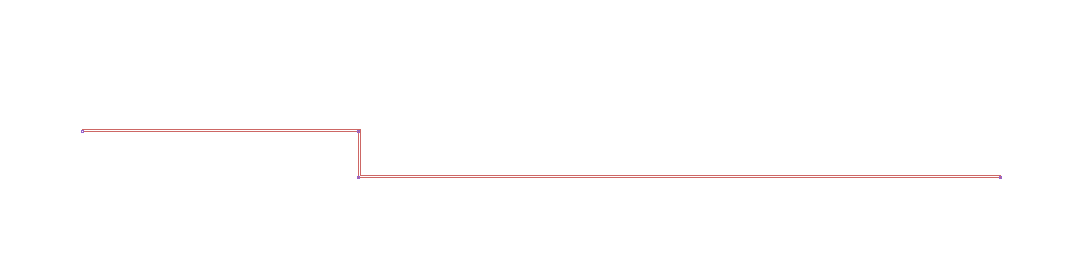

The initial version of the sweep
|
|

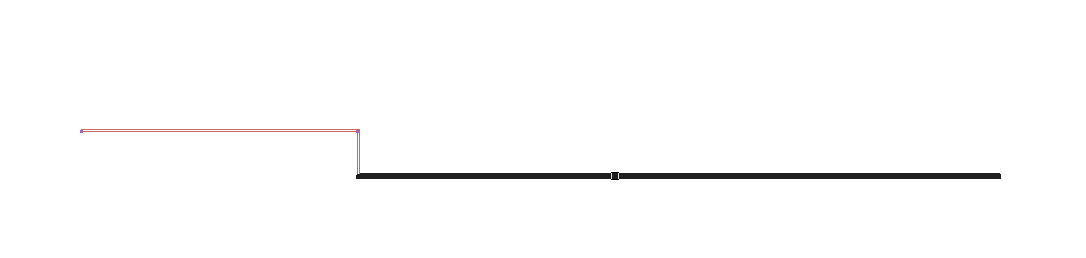

Selecting the edge to create the gap
|
|

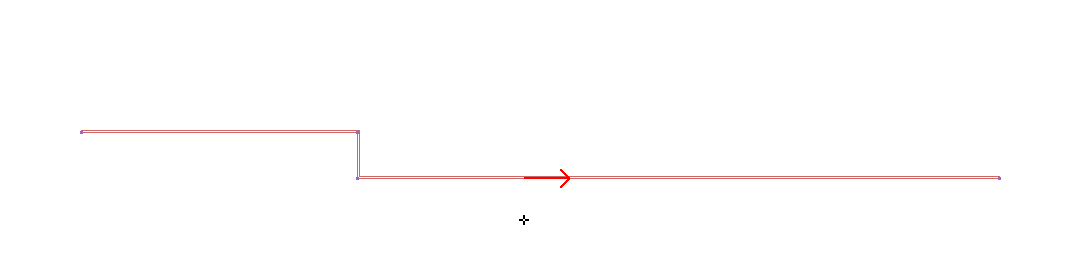

Determining the place of the gap to be opened by sliding the mouse
|
|

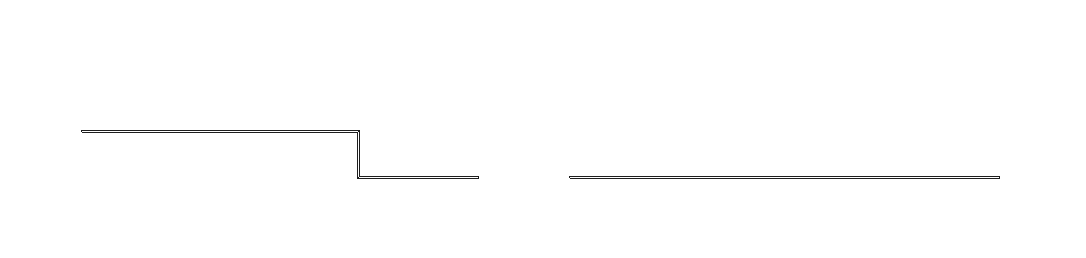

Creating a gap equal to the value entered in the application distance box by clicking the left mouse button
|
|

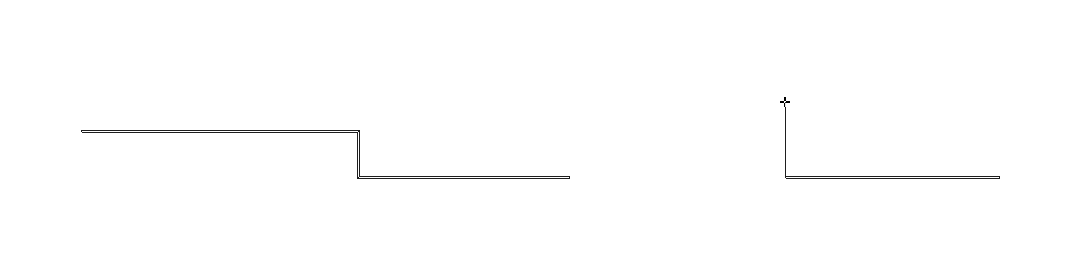

Changing the gap distance created by pressing the Esc key and sliding the mouse after the gap is created
|
|

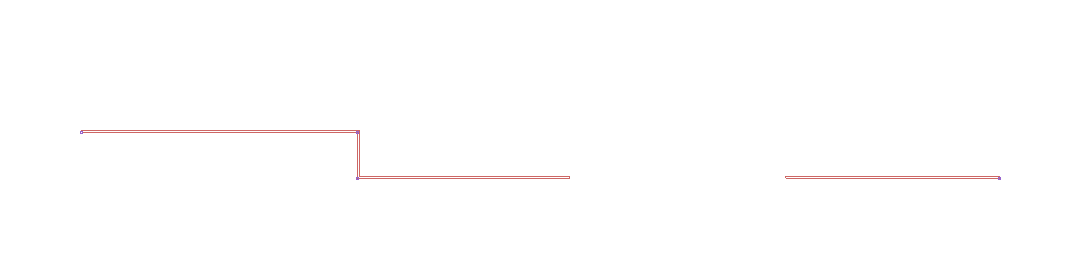

Final version of the sweep
|
