Creating a Concrete Slab
Concrete slab is created with the Concrete Slab command. Concrete slab is the load-transfer element drawn between steel beams and on secondary beams.
Location of Concrete Slab Command

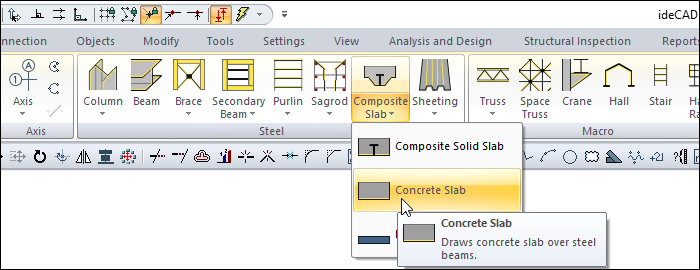

You can access it under the ribbon menu, Steel tab, Steel title
Usage Steps
Click the Concrete Slab icon from the ribbon menu .
The slab for steel toolbar will open.
Click on the settings icon on the far right. It contains the opened concrete thickness, material and load information parameters.
Choose the first of the steel beams.
You have selected the steel beams to form a closed polygon and finish by right clicking on the last beam.
Your concrete slab will be formed.
Usage step |
|---|

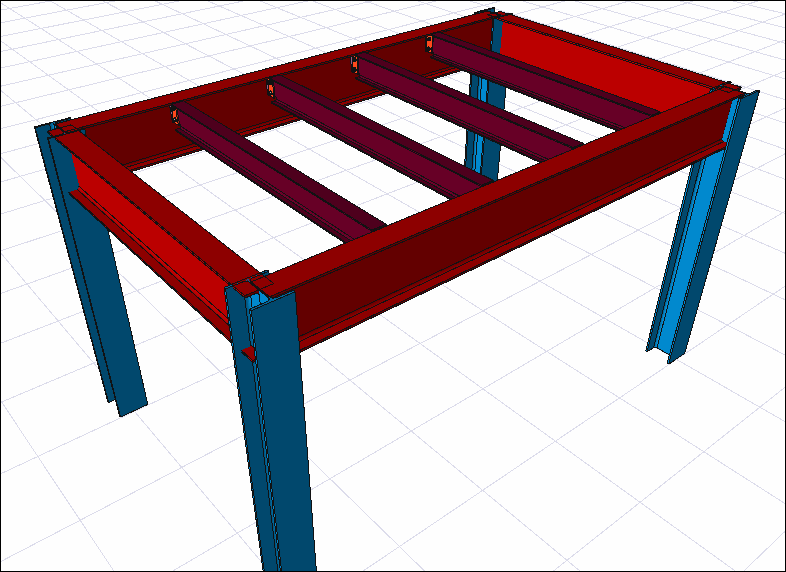

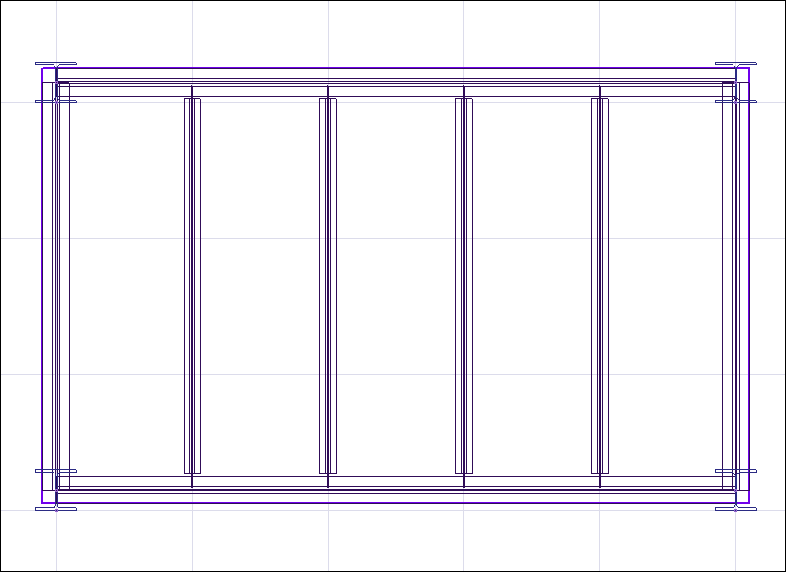

Area to create concrete slab  |

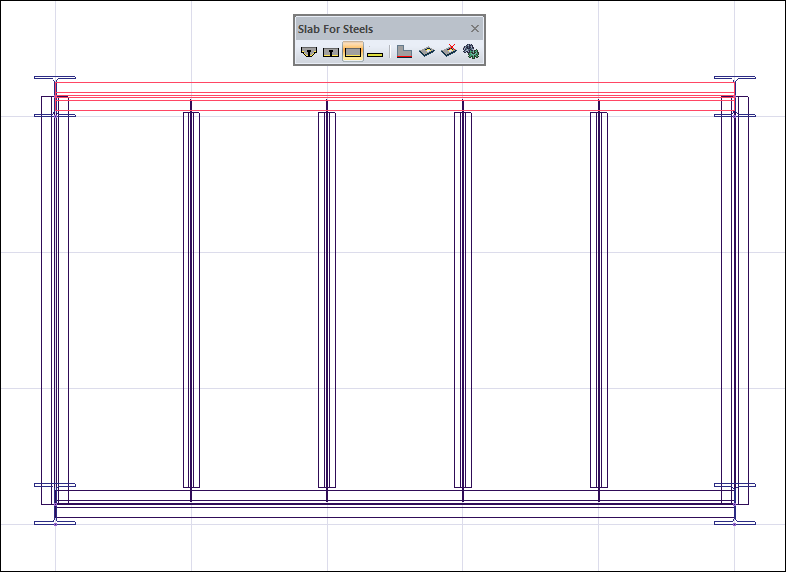

Choosing the first steel beam  |

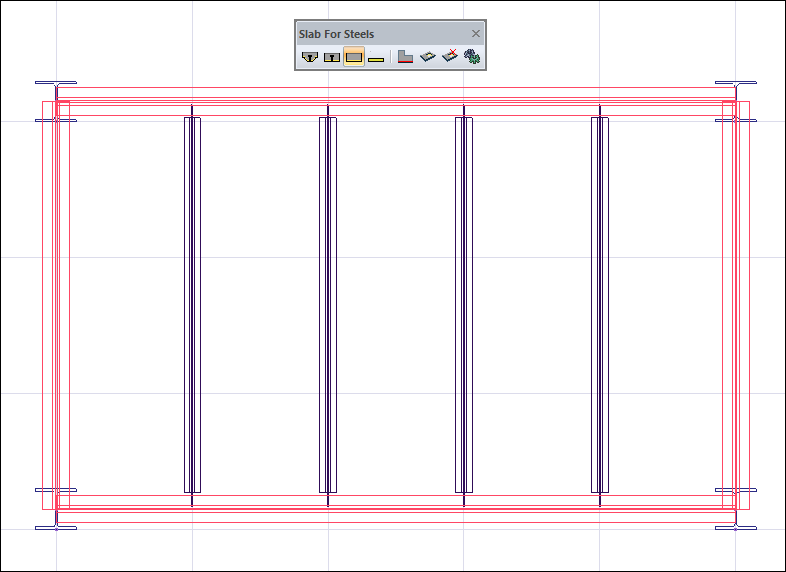

Choosing the second, third and fourth steel beam to form a closed polygon  |

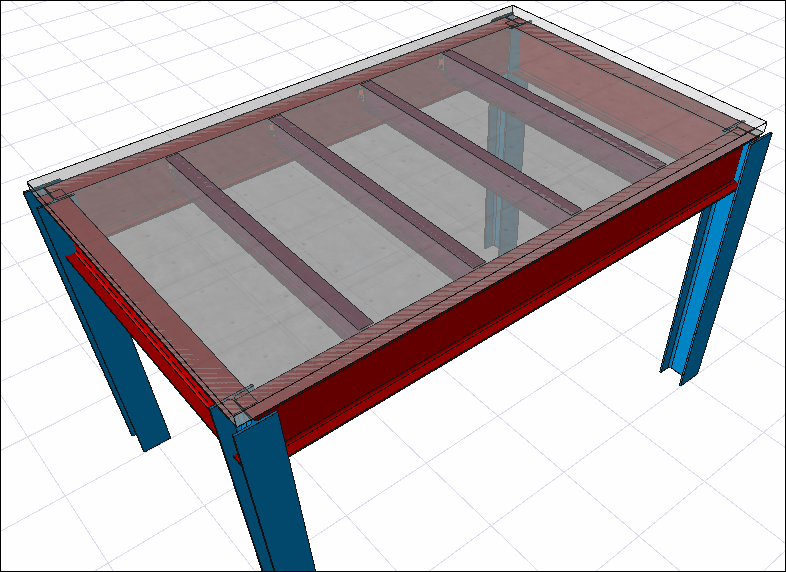

The formation of the concrete slab   |
