Drawing a Continuous Slab Edge

With the Continuous Slab Edge command, slab edge is defined in arc or circular form by using multiple points.

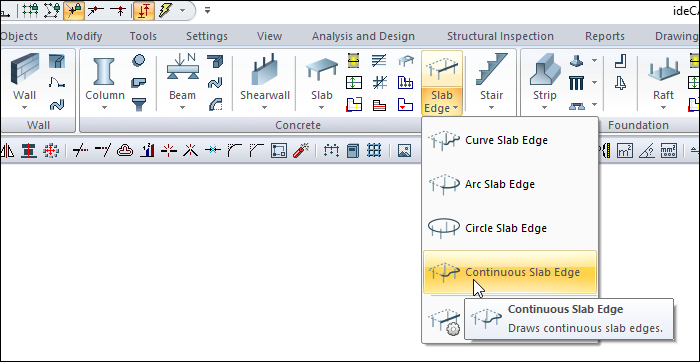

Location of Continuous Slab Edge Command

You can access it under the Concrete tab in the ribbon menu under the Concrete heading.

Usage Steps

  • Click the continuous slab edge icon.

  • Create the starting point of your continuous slab edge by clicking the left mouse button.

  • Drag the mouse. Click the waypoint to form an arc. You can click more than one waypoint according to your system.

  • Create the end point of your continuous slab edge by clicking the left mouse button and complete your form.

  • End the command by clicking the right mouse button.

  • You will have a continuous slab edge.

  • Exit the command by pressing the Esc key on the keyboard. You can now define slab.

Usage step

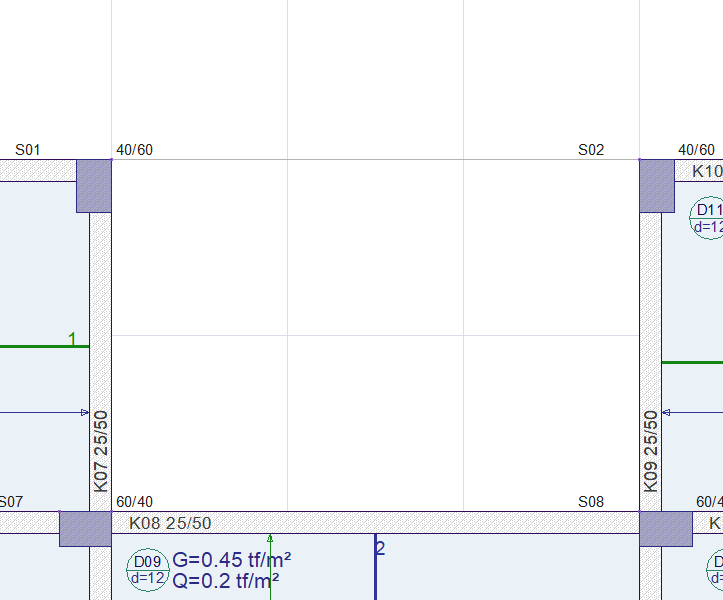

Area to be drawn continuous slab edge

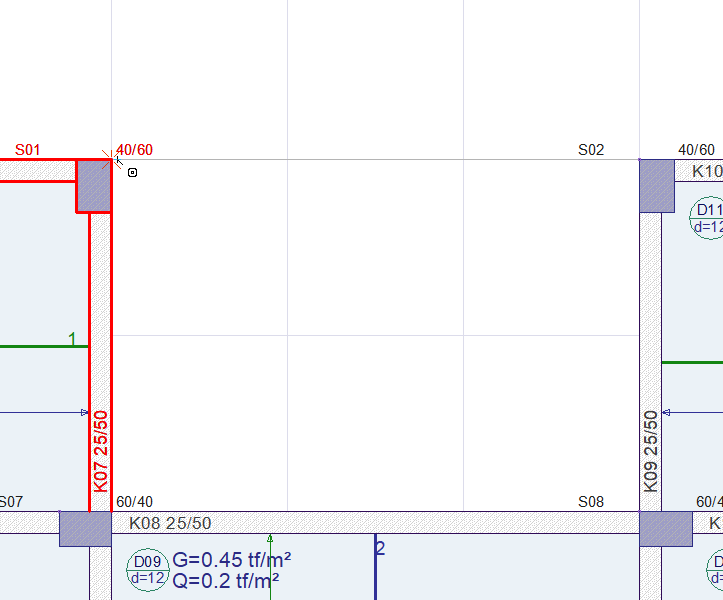

Determining the starting point of the slab edge

Determination of the second point

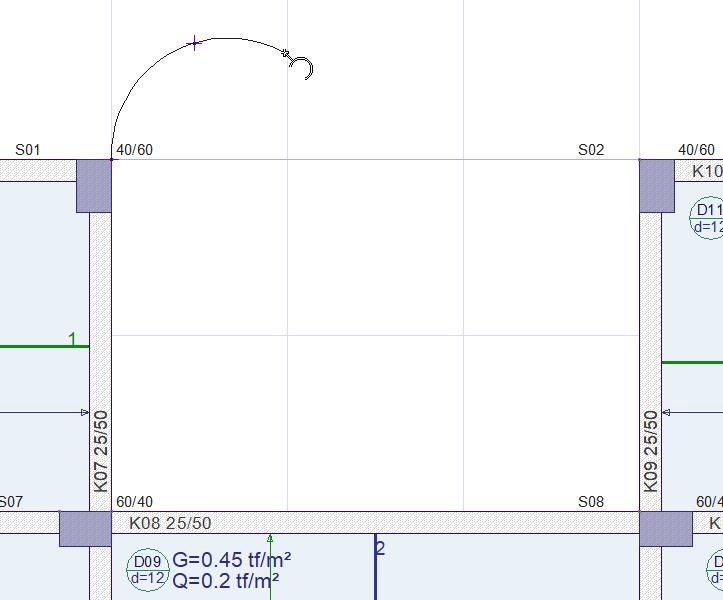

Determining the third point

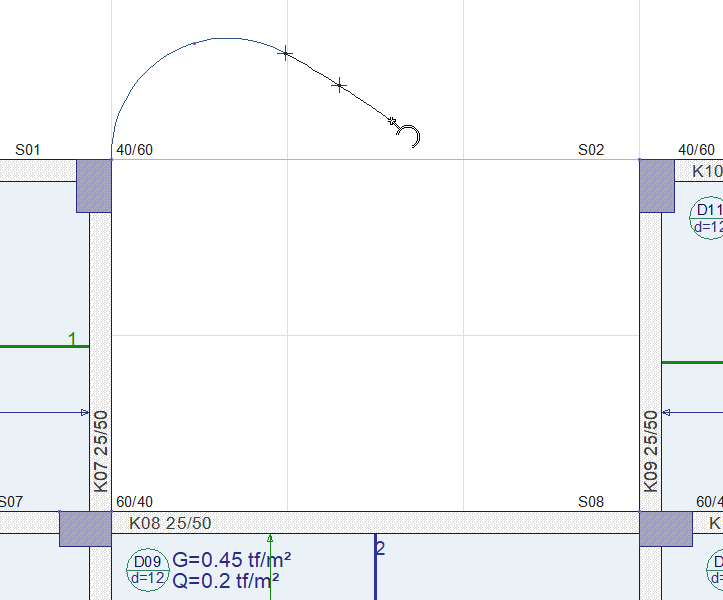

Determination of the fourth point

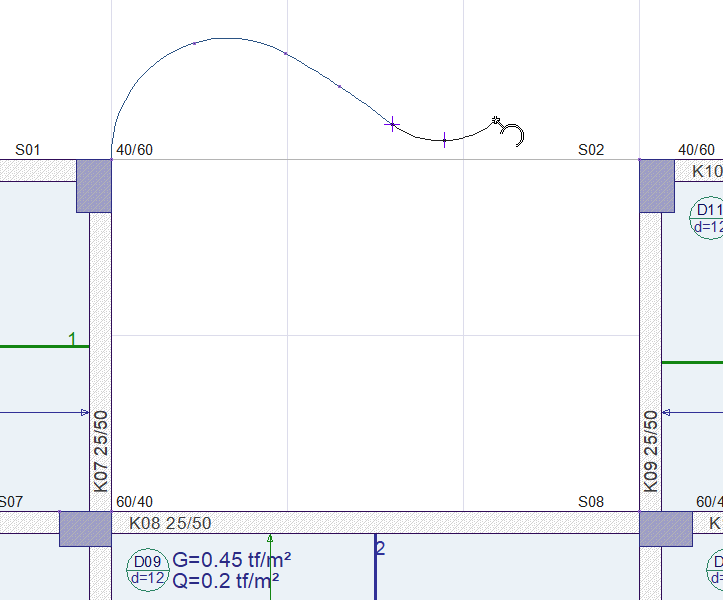

Determination of the fifth point

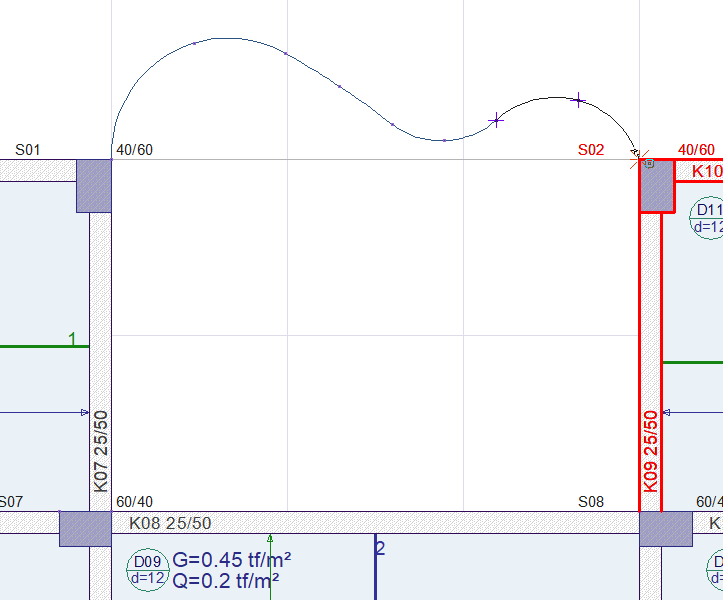

Determining the point where the continuous slab edge will end

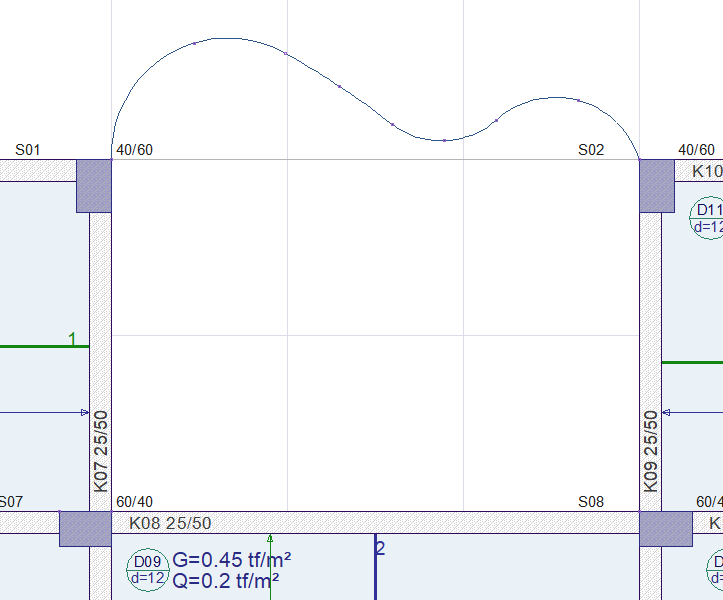

Formation of a continuous slab edge
