Vertical Frame Plane

Vertical frame planes are created in the desired amount in the vertical alignment of the selected axis by selecting the axis. One of the orthographic or perspective projection type is selected.

Location of Display Vertical Frame Command

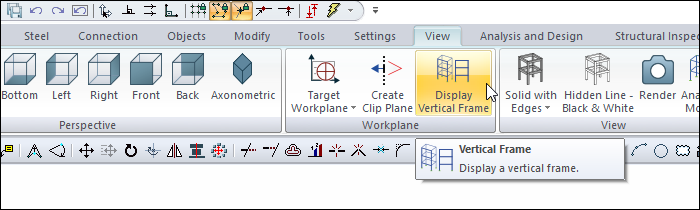

You can access it from the View tab , Workplane heading in the ribbon menu .

Usage Steps

  • Click the Display Vertical Frame command.

  • Click an axis on any floor

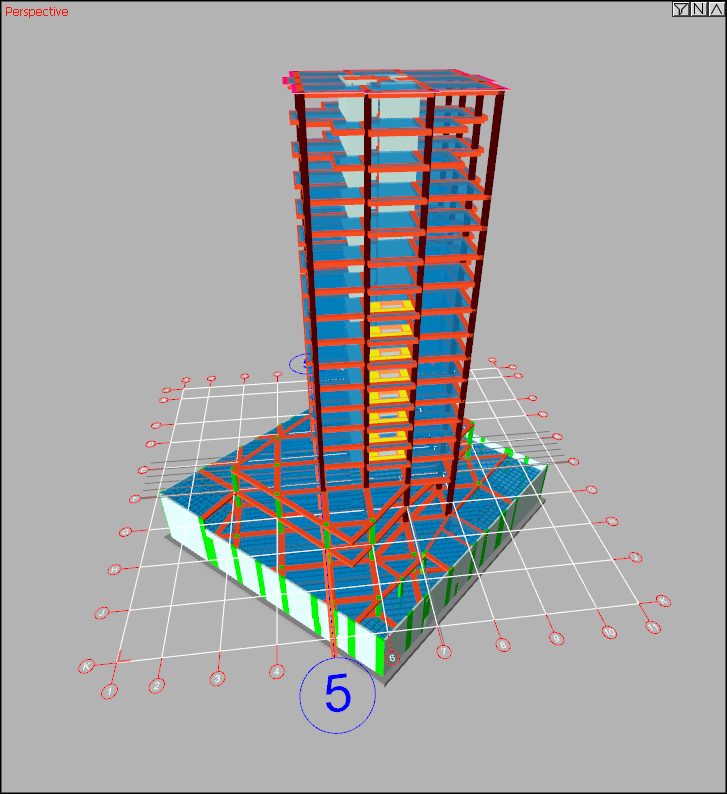

Sample application for vertical frame plane in 5 axis:

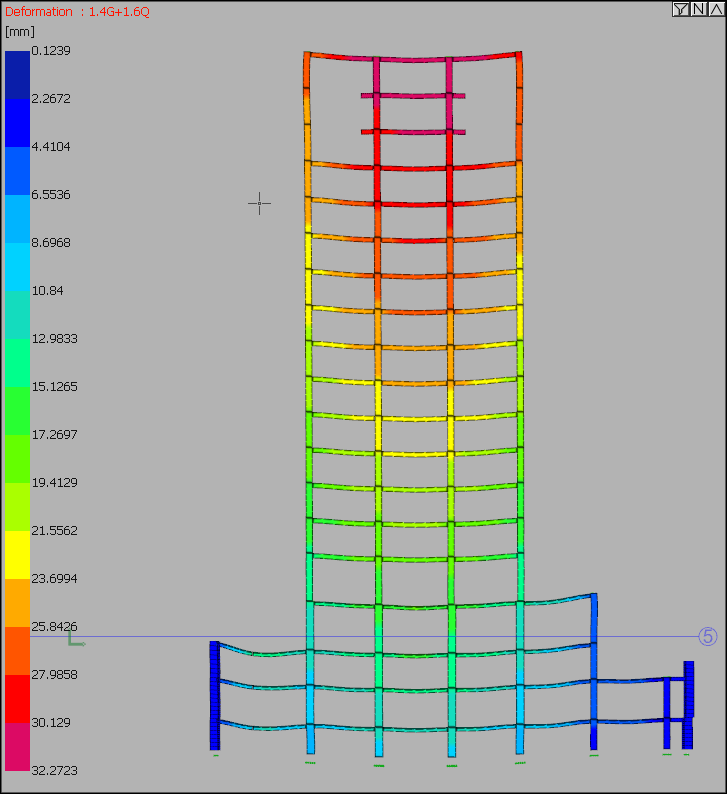

Vertical frame view in deformation mode in analysis model view:
