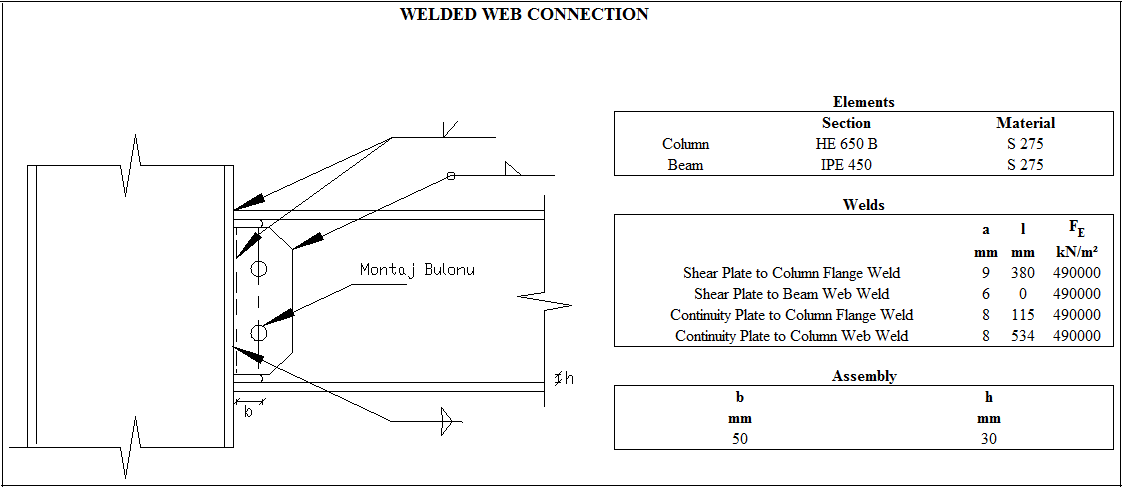

Welded Web Connection (WUF-W Moment Connection) Design Report

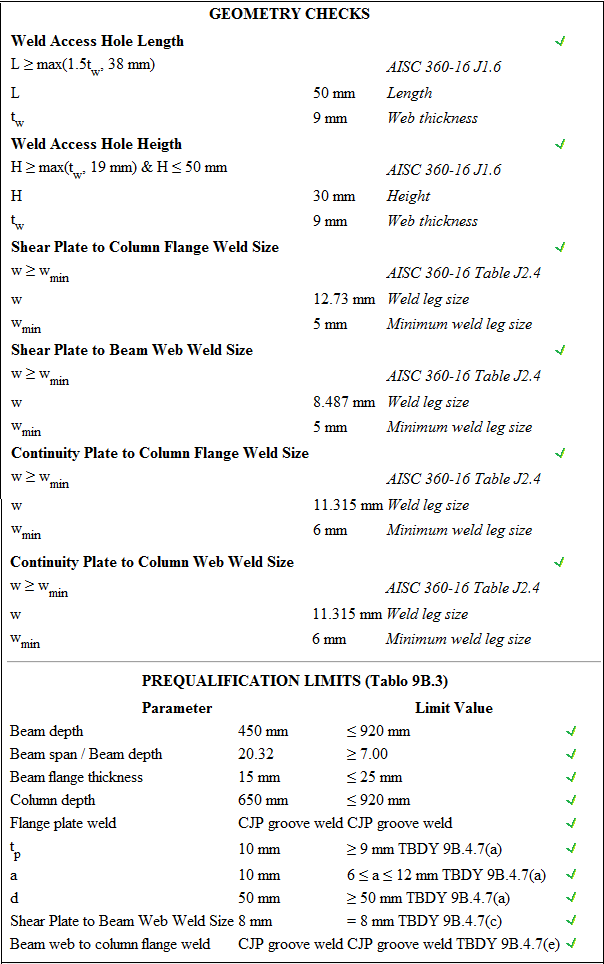

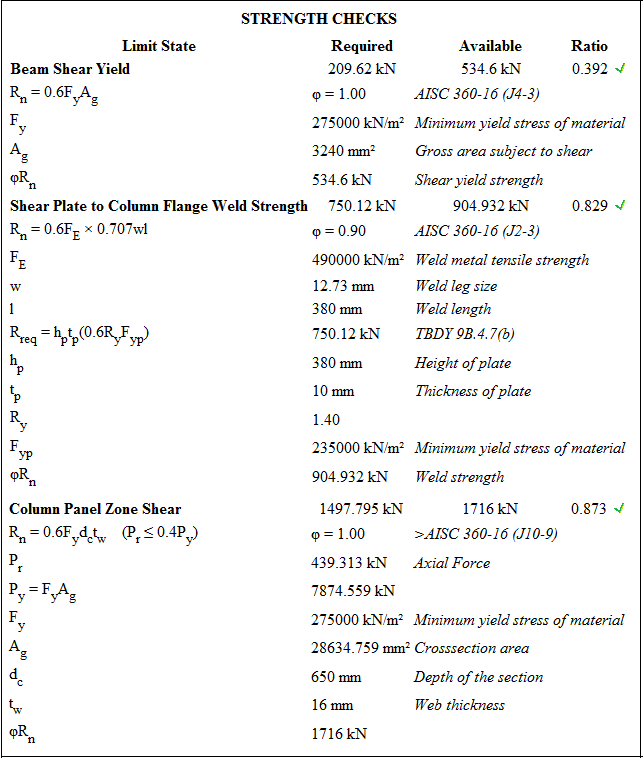

A sample of the welded web connection (WUF-W moment connection) design report according to AISC 358-16 & AISC 360-16 is given below.

• Design limit states of welded web connections are calculated automatically according to AISC 358-16 and AISC 360-16.
