Euler Bucking Analysis

The analysis is done with the Analysis Design command after defining the situation in which the information about the mode number, convergence value, number of iterations and for which loading state the analysis will be made.

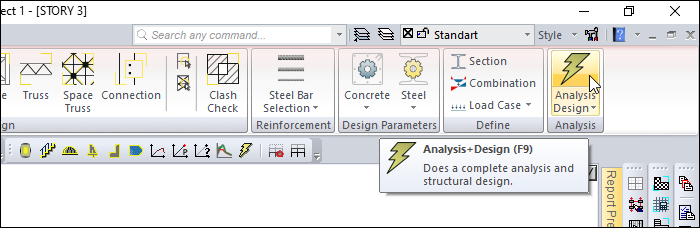

Location of Analysis Design Command

Ribbon menu Analysis and Design tab Analysis title under Analysis Design can be found on command.

Usage Steps

  • Define the case where the information about the mode number, convergence value, number of iterations and the loading state to be analyzed will be given.

  • Click the analysis design command.

  • Do you want to perform analysis option will open.

  • When the OK button is clicked, the analysis + design process will start.

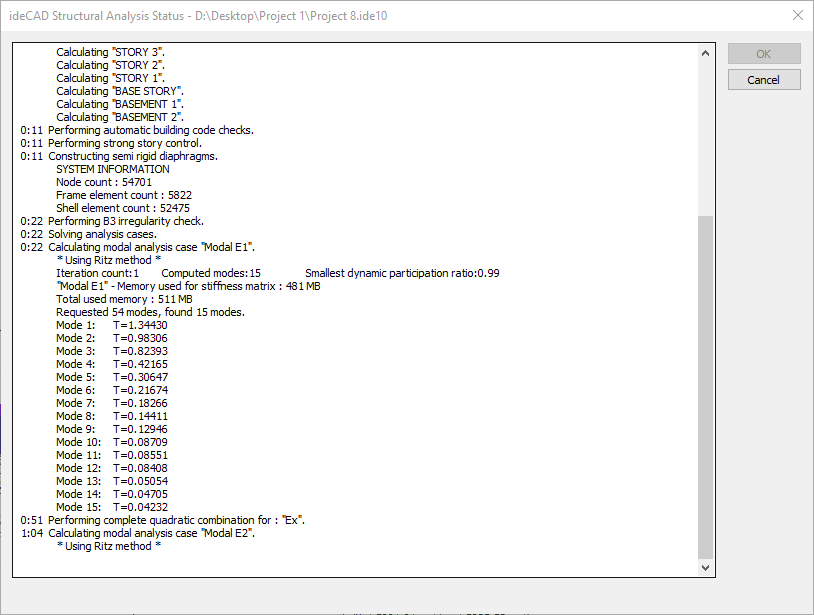

  • In the structural analysis status window, the steps and process times applied during the analysis + design process are given for information purposes.
