Creating a Steel Hand Rail on Line

With the Steel Hand Rail Macro on Line command, steel hand rails are created without the need for steel beams.

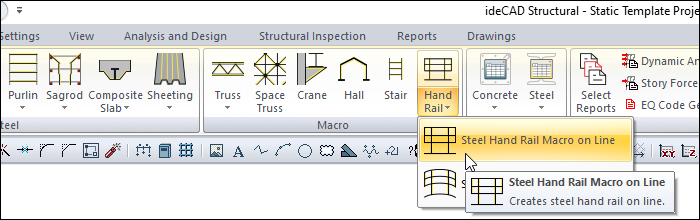

Location of Steel Hand Rail Macro on Line Command

You can access it under the ribbon menu Steel tab Macro .

Usage Steps

  • Click the steel hand rail macro on line command.

  • Create the starting point on the line you want to draw the hand rail by clicking the left mouse button.

  • Create the endpoint by clicking the left mouse button.

  • Your hand rail will be created.

Usage step

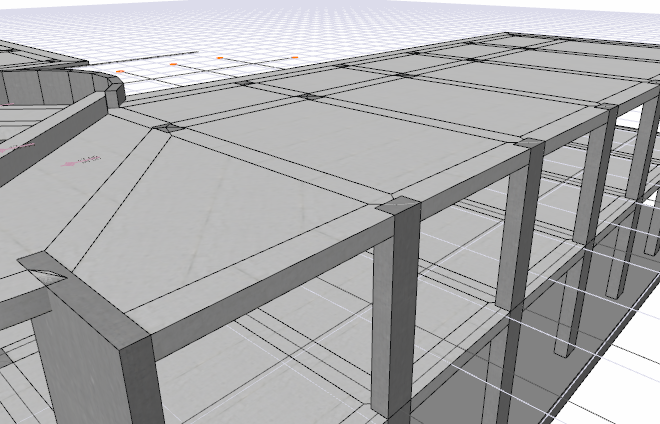

Area to create a steel hand rail

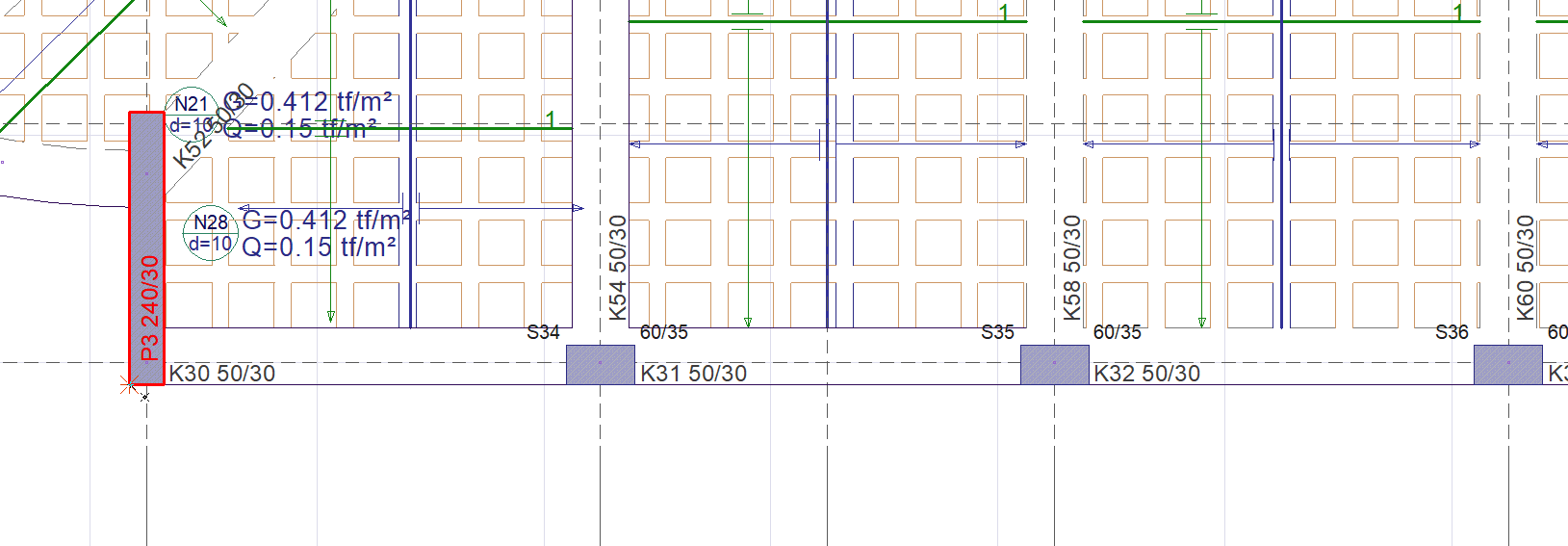

Determining the starting point by clicking the left mouse button

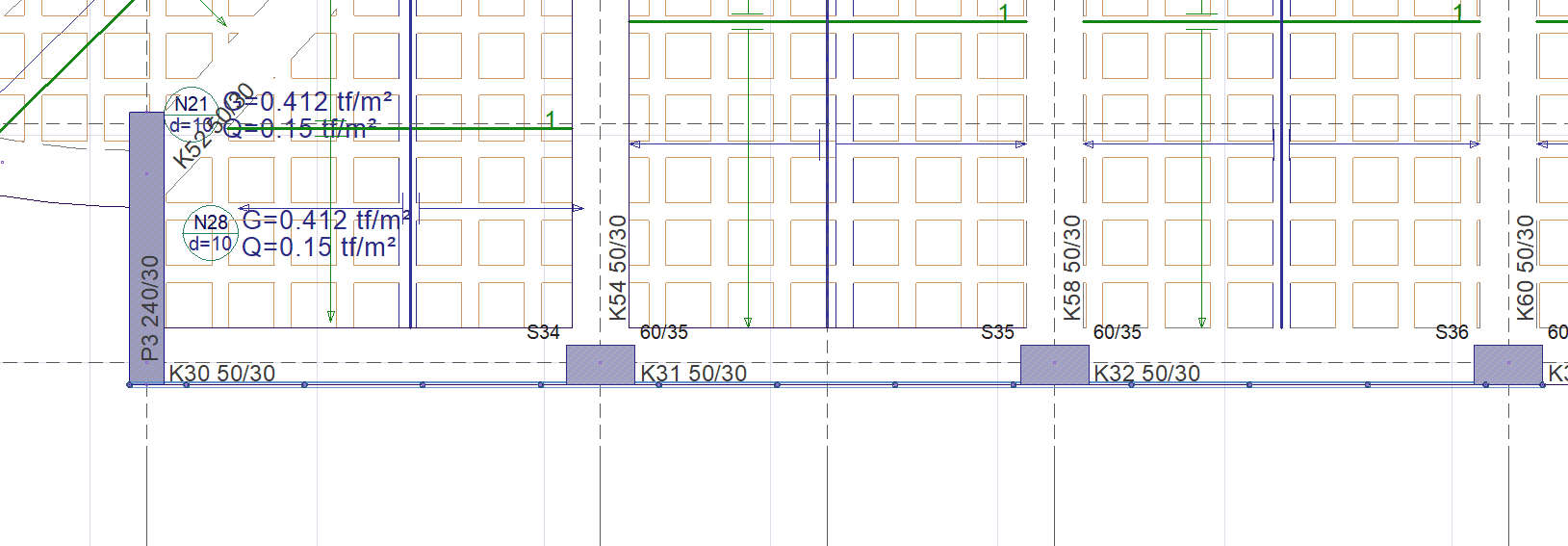

Determining the endpoint

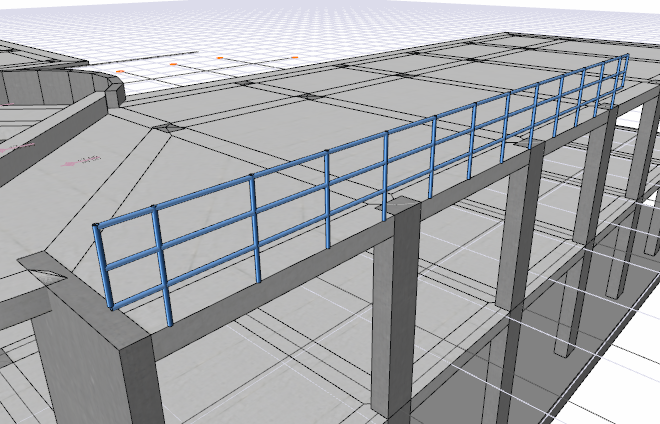

Formation of steel hand rail
