Creating a Hatch Hole
The Hatch Hole command is used to create holes on created hatches.
Location of the Hatch Hole Command
In the Architectural Program

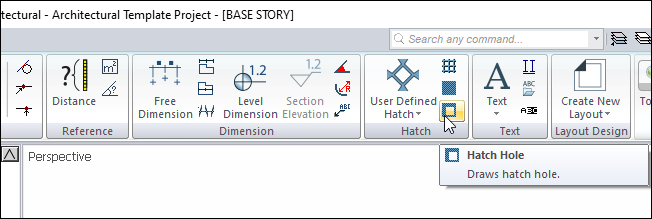

You can access it under the ribbon menu, Drawings tab, Hatch heading.
In the Structural Program

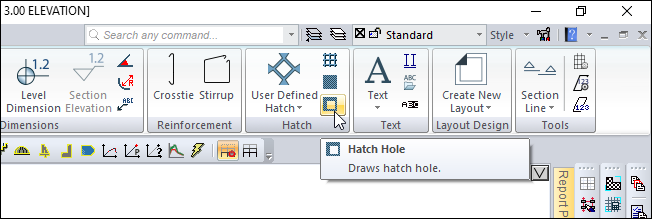

You can access it under the ribbon menu, Drawings tab, Hatch heading.
Usage Steps
To create a hole on the hatch:

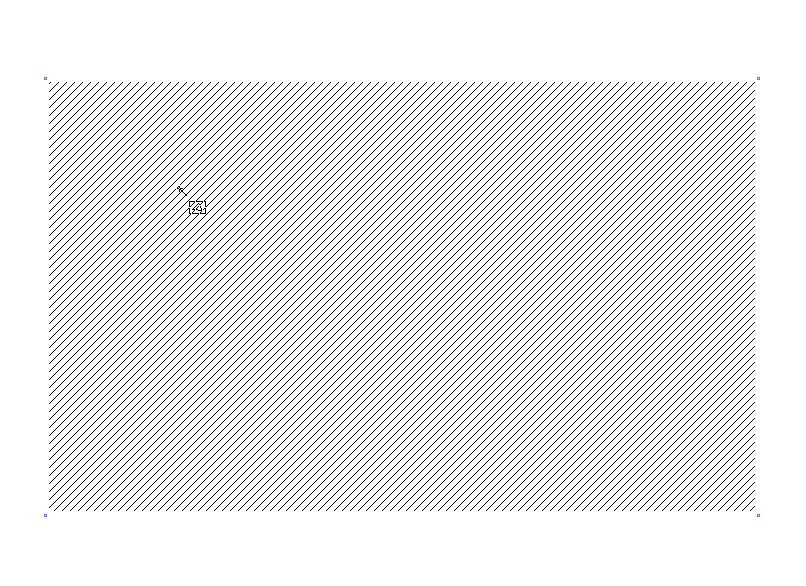

Create a hatch.
Click the Hatch Hole icon in the ribbon menu .
Move the mouse cursor over the hatch you want to blank. Create the hole polygon by clicking on the hatch with the left mouse button.
When the process is finished, a hole will be opened in the hatch.
Usage step |
|---|

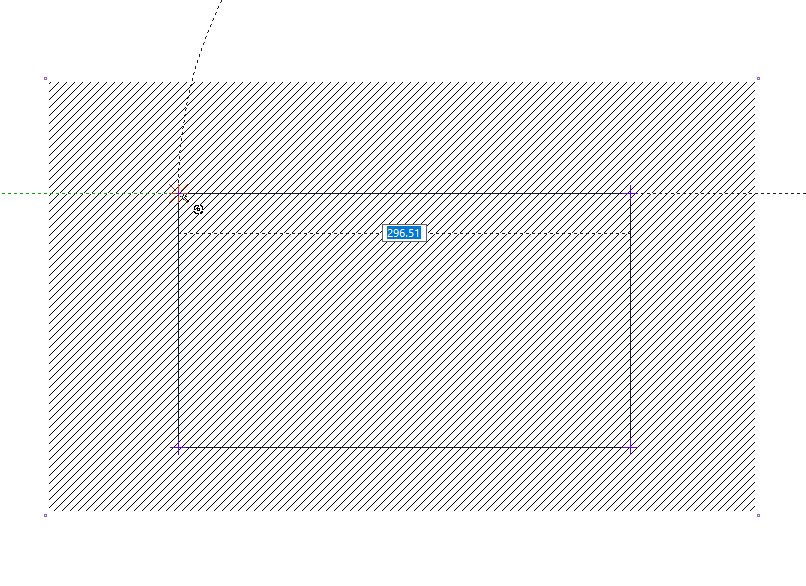

Determining the first point of the closed polygon to be created for the hatch hole  |

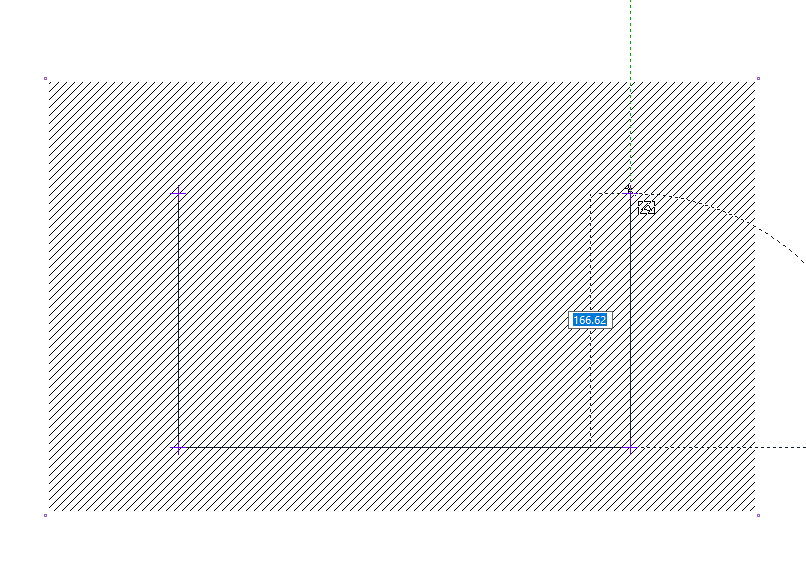

Determining the second point of the closed polygon  |

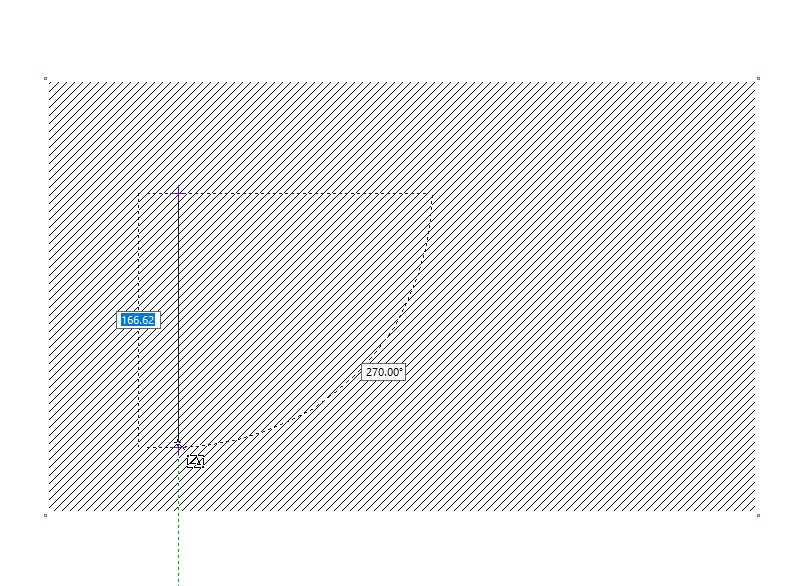

Determining the third point of the closed polygon  |

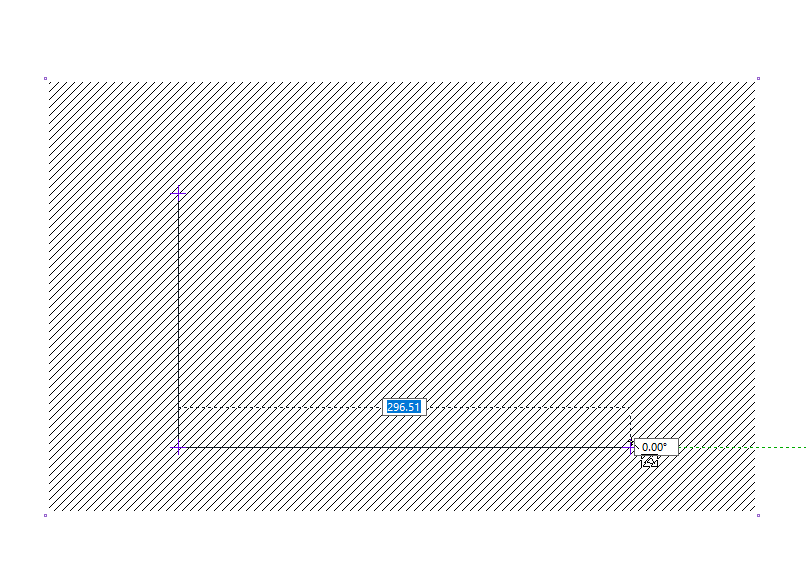

Determining the fourth point of the closed polygon  |
Determining the end point of the closed polygon  |

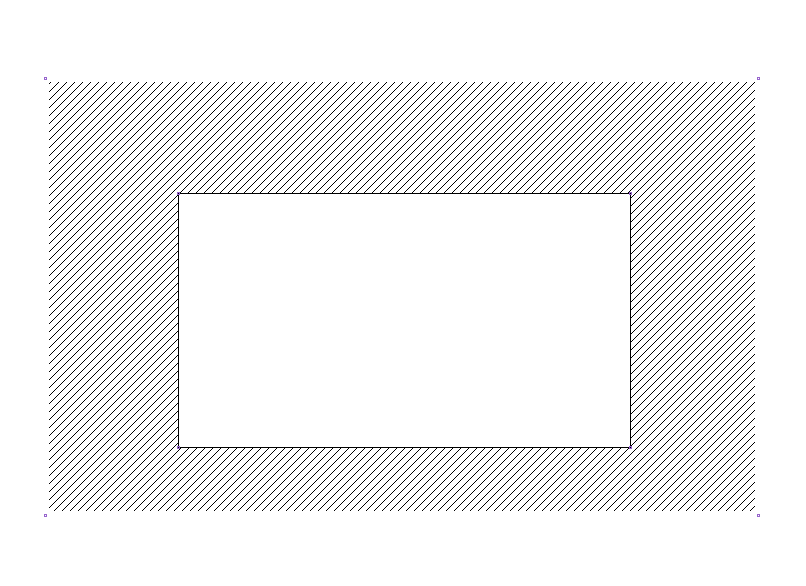

Creation of the hatch hole  |
