With the Splice Connection command, splice connection is defined in columns and beams.
Download ideCAD for Splice Connection

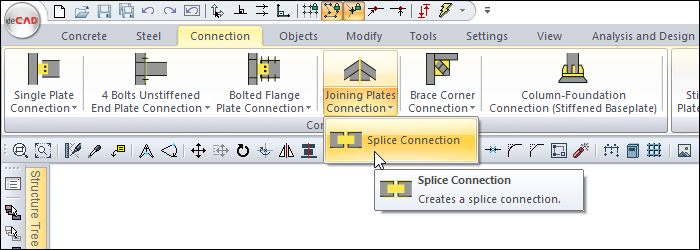

Location of the Splice Connection Command
You can access it under the Ribbon menu, Connection tab, Connection title.
Usage Steps
If Draw in Fast Mode is Active
-
Click on Splice Connection from the Connection menu.
-

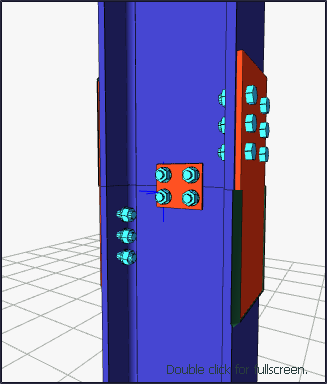

In 3D perspective view, move the mouse pointer closer to the element, close to the support
-

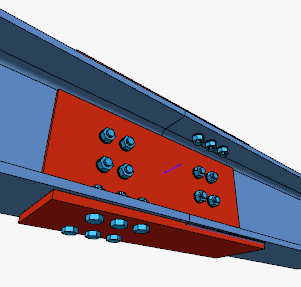

After this process, the virtual image of the connection will appear.
-
If the connection is suitable, create the connection by clicking the left mouse button.
-
The connection will occur with default settings.
If Draw in Fast Mode is Inactive
-
Click on Splice Connection from the Connection menu.
-
Click the column then the beam before the 3D perspective view.
-
The splice connection settings dialog will open.
-
The connection will occur when the wanted settings are made and the OK button is clicked.
Location of the Splice Connection Settings Dialog
If the draw in fast mode is active, the connection settings will be opened automatically.
If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.
Splice Connection Settings Dialog

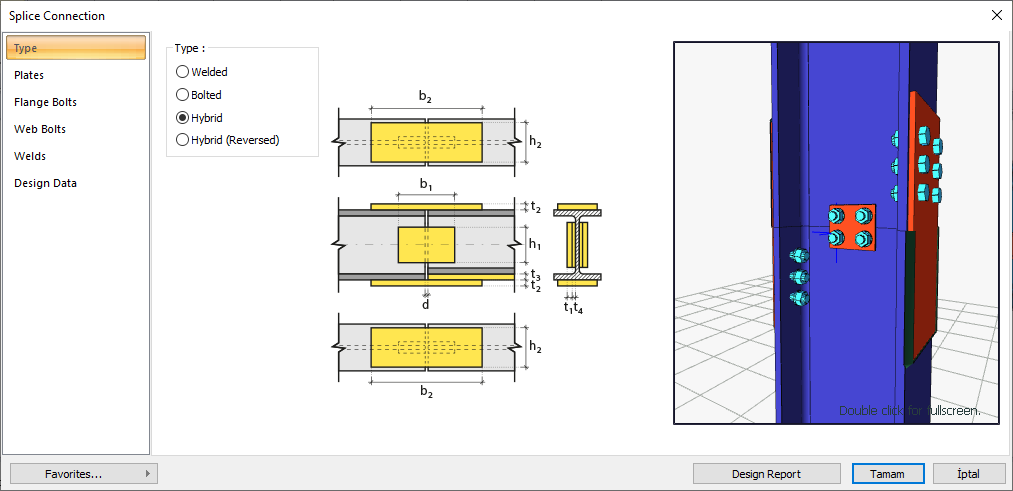

Type Tab
|
Specifications |
|---|
|
Type
For the connection, one of the welded, bolted, hybrid or hybrid (reversed) connection types is selected. |
|

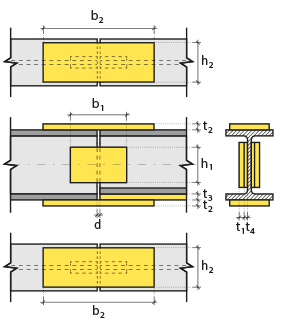

Schematic drawing
The connection is shown on the schematic drawing. |
|
Preview
There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

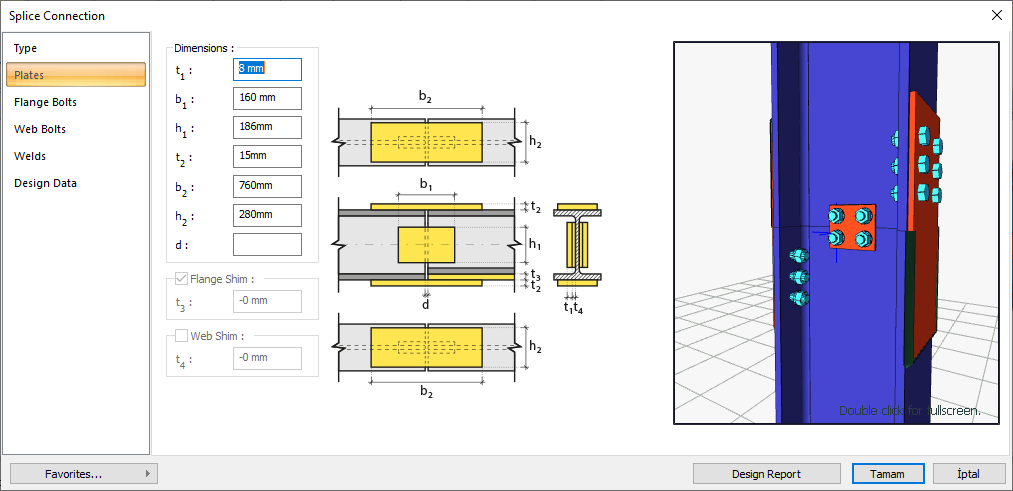

Plates Tab
|
Specifications |
|---|
|
Dimensions
Plate sizes are determined by entering values. The values to be entered are shown in the schematic drawing. |
|
Flange shim
Shim is a plate placed between the elements to be connected in bolted connections. If shim will be made, the option is checked and t 3 , thickness value is given. |
|
Web shim
Shim is a plate placed between the elements to be connected in bolted connections. If shim is to be made, the option is selected and t 4 , thickness value is given. |
|

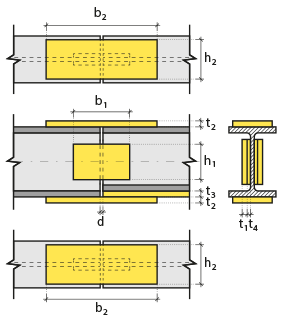

Schematic drawing
Connection and plate values are shown on the schematic drawing. |
|
Preview
There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

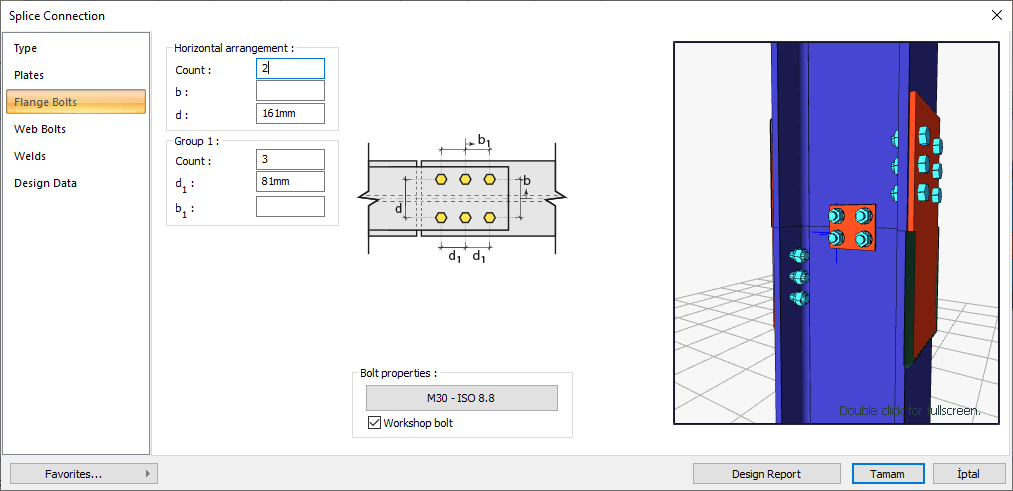

Flange Bolts Tab
|
Specifications |
|---|
|
Horizontal arrangement
The horizontal arrangement distance value and number of bolts are entered. The values to be entered are shown in the schematic drawing. |
|
Group 1
Bolt distance values are entered. The values to be entered are shown in the schematic drawing. |
|
Bolt properties
The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
|
Schematic drawing
Connection and bolt placement values are shown on the schematic drawing. |
|
Preview
There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |
Web Bolts Tab
|
Specifications |
|---|
|
Horizontal arrangement
The horizontal arrangement distance value and number of bolts are entered. The values to be entered are shown in the schematic drawing. |
|
Group 1
Bolt distance values are entered. The values to be entered are shown in the schematic drawing. |
|
Bolt properties
The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
|
Schematic drawing
Connection and bolt placement values are shown on the schematic drawing. |
|
Preview
There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

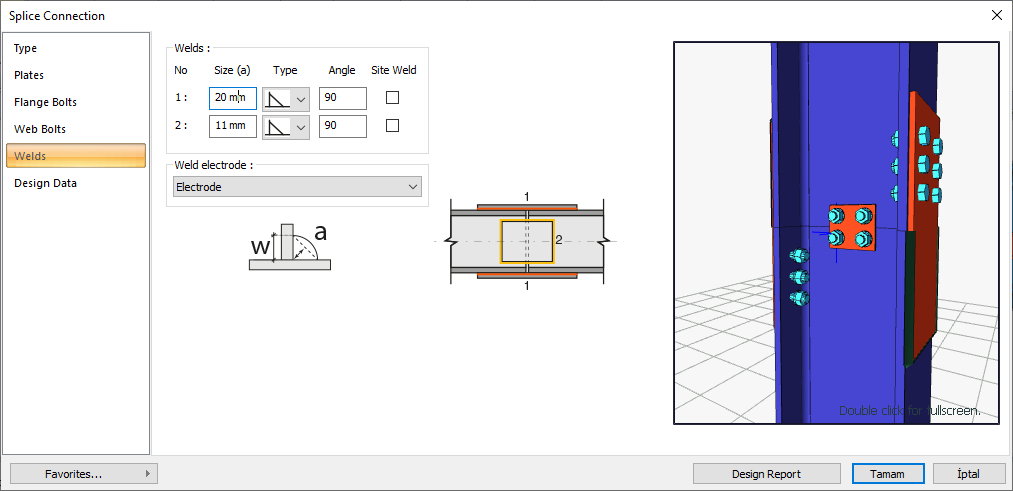

Welds Tab
|
Specifications |
|---|
|
Welds
The thickness, type and angle values of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered. |
|
Weld electrode
The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength. If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New". Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC. |
|

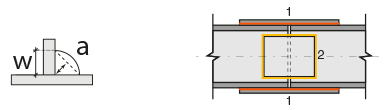

Schematic drawing
Connection and weld values are shown on the schematic drawing. |
|
Preview
There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

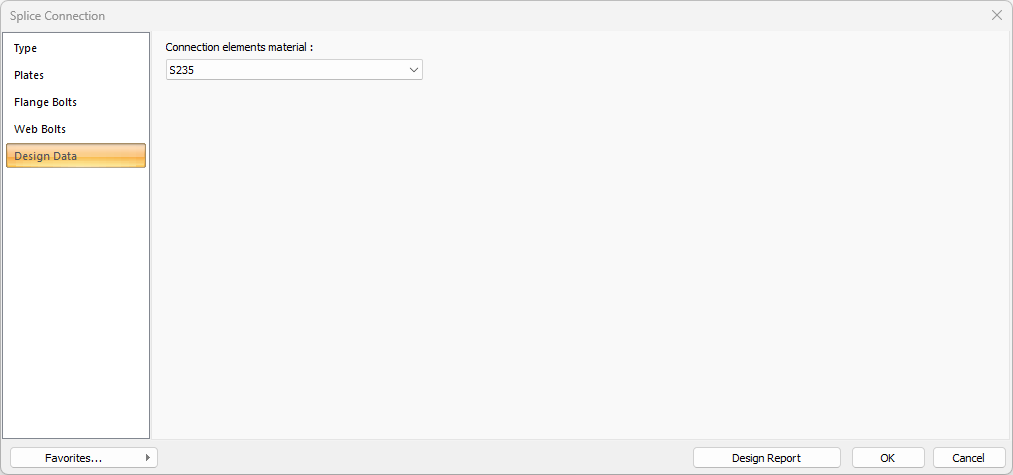

Design Data Tab
In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.
If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
