Zoom Window Command

With the Zoom Window command in plan and 2D drawing windows , the desired part of the drawing can be zoomed in by taking it into the window.

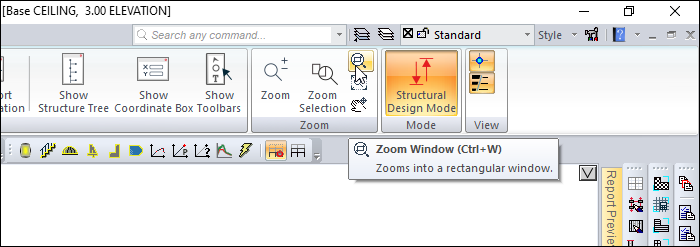

Location of the Zoom Window Command

You can access it from the ribbon menu, View tab, Zoom title.

Usage Steps

  • Click the Zoom Window icon.

  • The mouse cursor takes the form of a magnifying glass.

  • The area to be zoomed is enclosed in the window.

  • The area enclosed in the window will be zoomed in.

You can also access the zoom window command by pressing the Ctrl+W keys on the keyboard .

Usage step

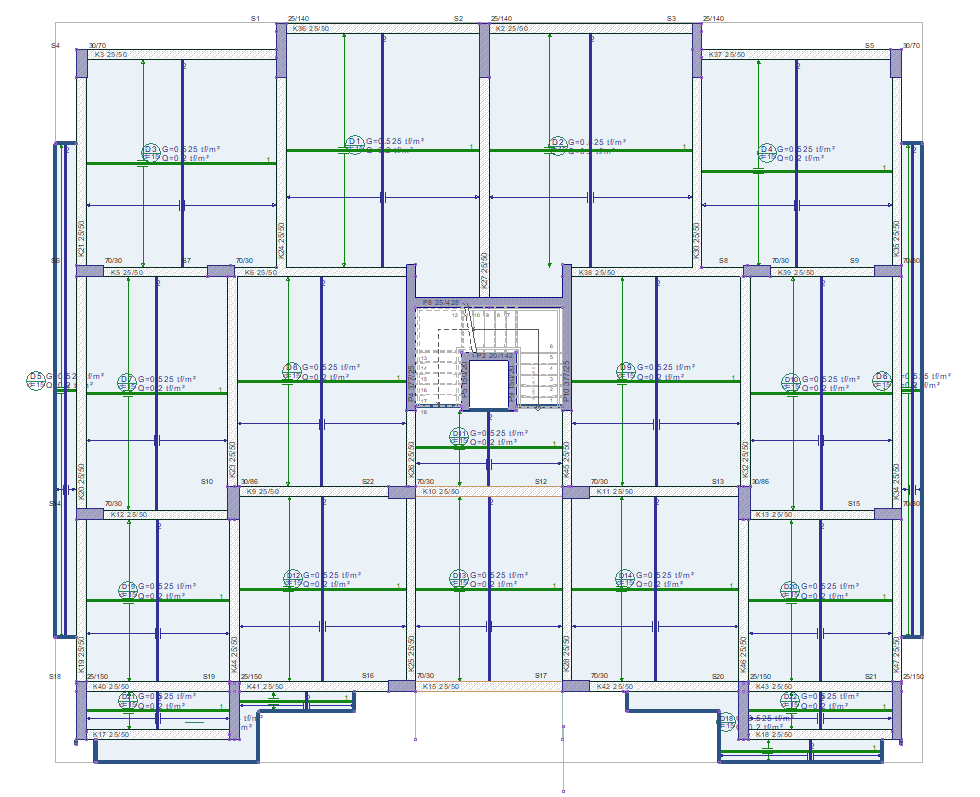

Zoom pre-window

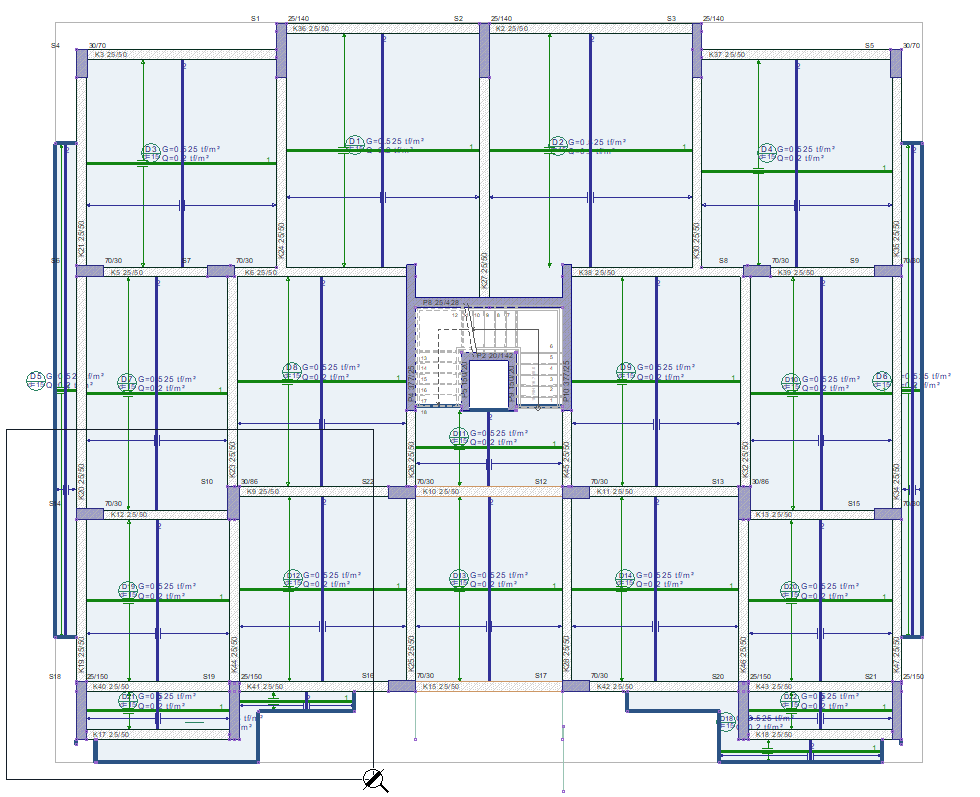

Determining the area to be approached

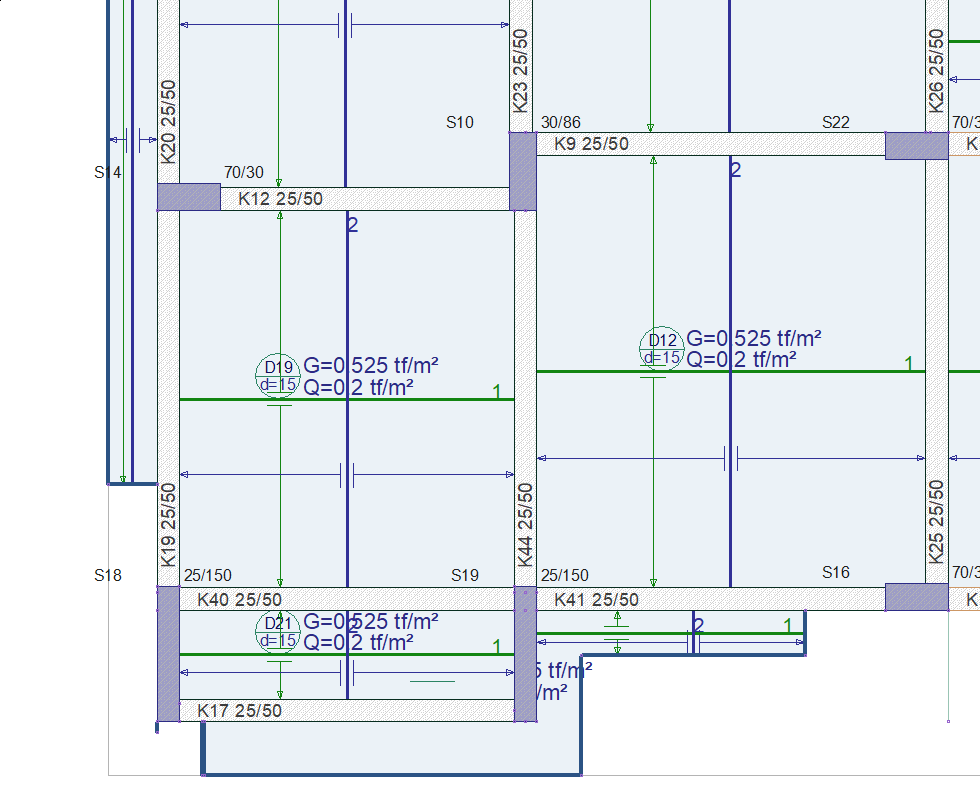

Zoom window post
