Creating a Ceiling Cornice | ideCAD Help Center

The ceiling cornice command creates an object in the slab by default, with a selected profile.

Click the ceiling cornice icon from the Sweep toolbar.

Icons
Sweep Draws a continuous form object according to the selected section.
Ceiling cornice Draws a ceiling cornice object.
Baseboard Draws a baseboard object.
Border on wall Draws a border on the wall object.
Cordon Draws a cordon object.
Roof gutter Draws a gutter around the roof object.
Dome gutter Draws a gutter around the dome object.
Free drawn Draws the sweep freely by giving a point without being attached to any object.
Path based Draws a sweep based on the path object.
Parent based Draws asweep while adhering to the contour of an object like zone etc.
Story top aligned It automatically adjusts the level of the sweep to be the same as the story ceiling level and draws the object at that level.
Story alignment free It takes the elevation of the sweep as much as the given level and draws the object at that level.
Sweep operations Opens an auxiliary toolbar with commands for changing sweep.
Section list It is the list that allows the section of the sweep to be determined. A profile is selected from the list while drawing the object.
Profiles Displays the folder of profiles saved in the project or to disk and allows sweep.
Settings Displays the settings of the sweep.

Icons

Sweep

Draws a continuous form object according to the selected section.

Ceiling cornice

Draws a ceiling cornice object.

Baseboard

Draws a baseboard object.

Border on wall

Draws a border on the wall object.

Cordon

Draws a cordon object.

Roof gutter

Draws a gutter around the roof object.

Dome gutter

Draws a gutter around the dome object.

Free drawn

Draws the sweep freely by giving a point without being attached to any object.

Path based

Draws a sweep based on the path object.

Parent based

Draws asweep while adhering to the contour of an object like zone etc.

Story top aligned

It automatically adjusts the level of the sweep to be the same as the story ceiling level and draws the object at that level.

Story alignment free

It takes the elevation of the sweep as much as the given level and draws the object at that level.

Sweep operations

Opens an auxiliary toolbar with commands for changing sweep.

Section list

It is the list that allows the section of the sweep to be determined. A profile is selected from the list while drawing the object.

Profiles

Displays the folder of profiles saved in the project or to disk and allows sweep.

Settings

Displays the settings of the sweep.

Click the ceiling cornice icon.
Parent Based and Story Top Aligned modes in the toolbar are automatically active.
If desired, one of the free drawn and path based drawing modes can be selected.
At the same time, the profiles to be used in the ceiling cornice object are listed in the Section box.
If wanted, a different profile can be selected from the Section box.
Mouse over the slab and left click.

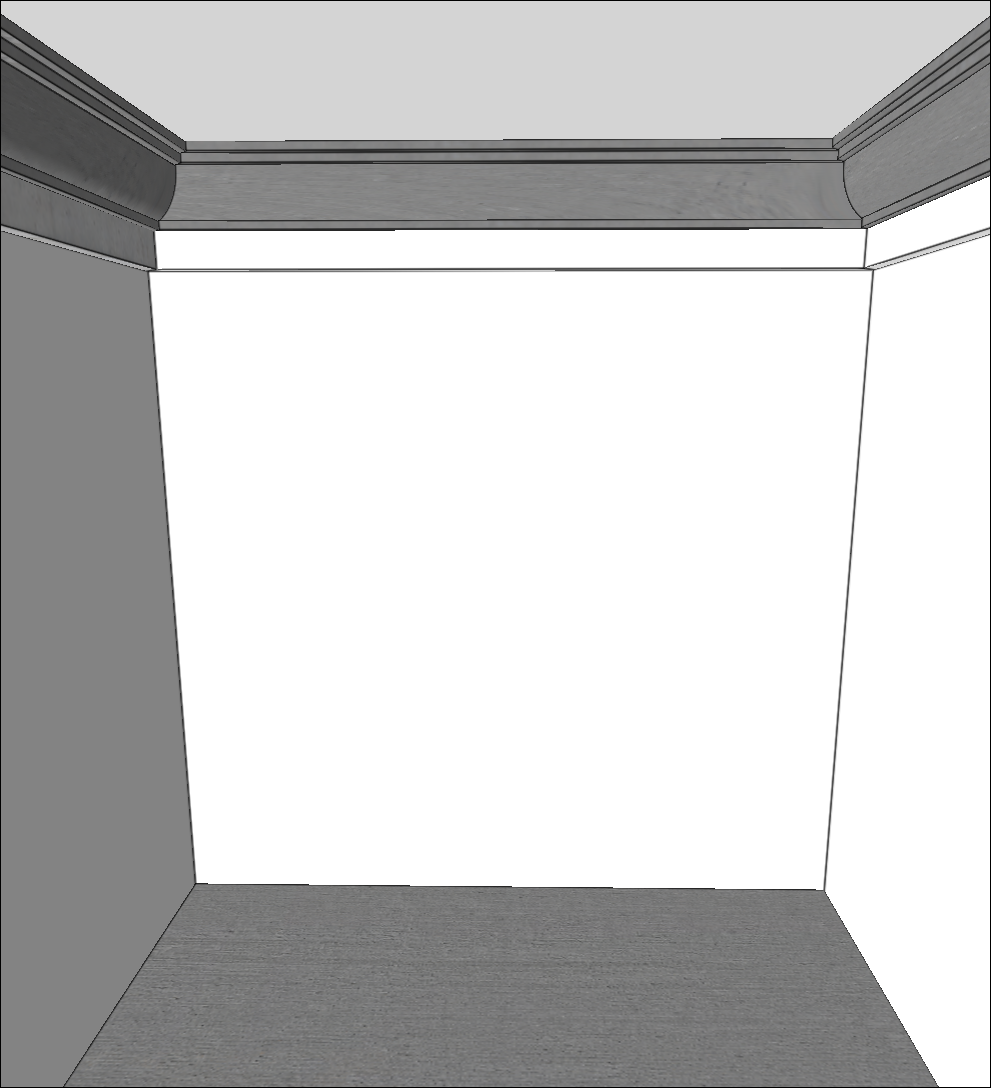

ceiling cornice will form under the slab.

Usage step

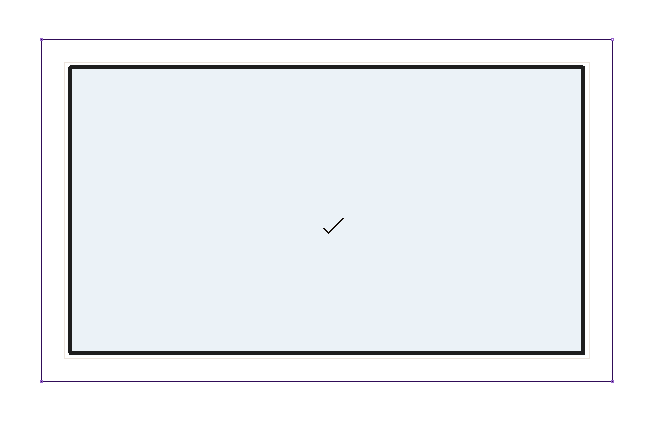

Moving the mouse over the slab

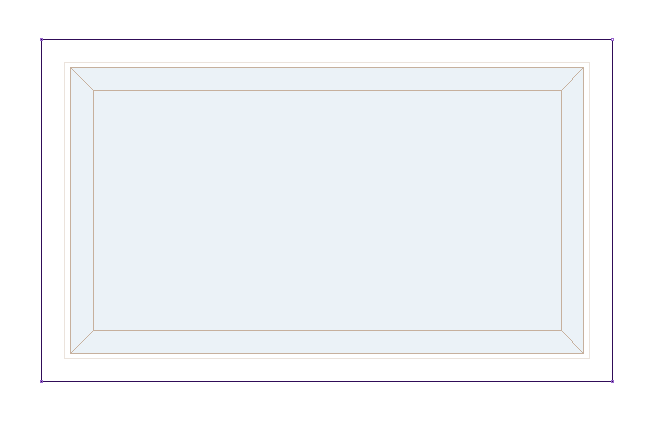

Ceating ceiling cornice by clicking the left mouse button
