Moving Zone Text

The zone texts are moved with the Move Zone Text command. Zone texts cannot be moved with the move command.

Location of Move Zone Text

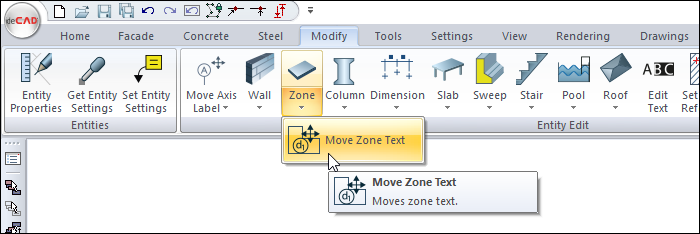

You can access it from the Ribbon menu Modify tab under Entity Edit title.

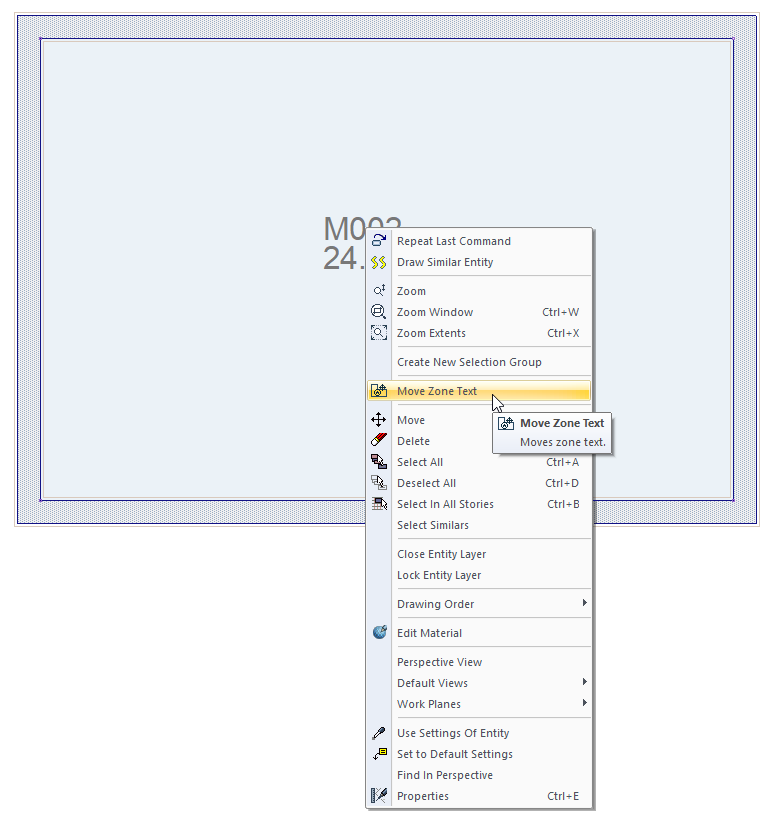

In addition, you can reach the Move zone text command from the menu that opens by clicking the right button of the mouse on the zone text you will move.

Usage Steps

  • Click the Move Zone Text icon in the ribbon menu .

  • Click on the zone text with the left mouse button. Move your mouse cursor to the point where you want to move the text on the zone. The zone text block will also move with the mouse.

  • When you click the left mouse button again, the zone text will be moved.

Usage step

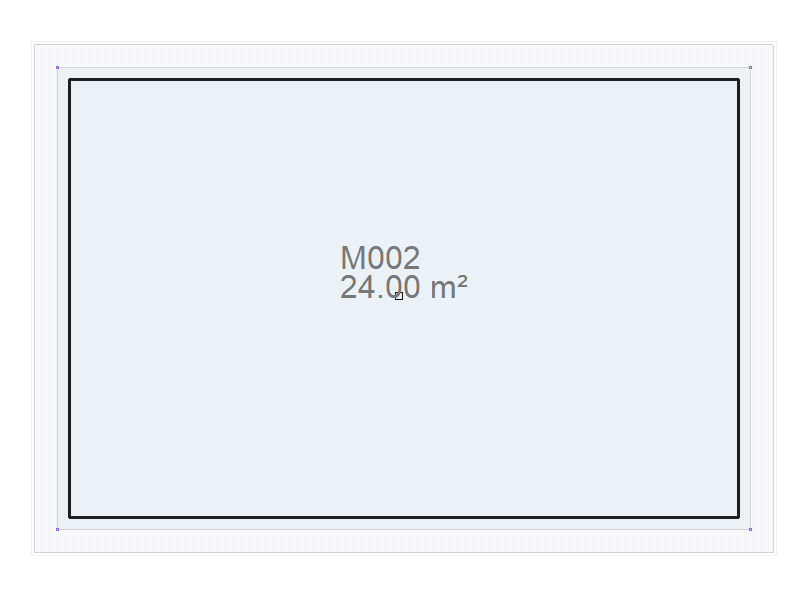

Selection of the zone text to be moved

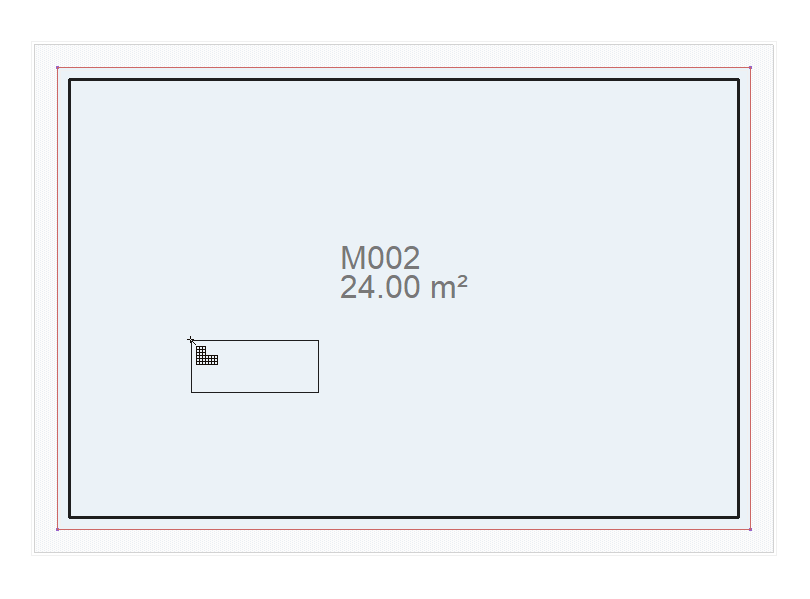

Determining the desired point to move

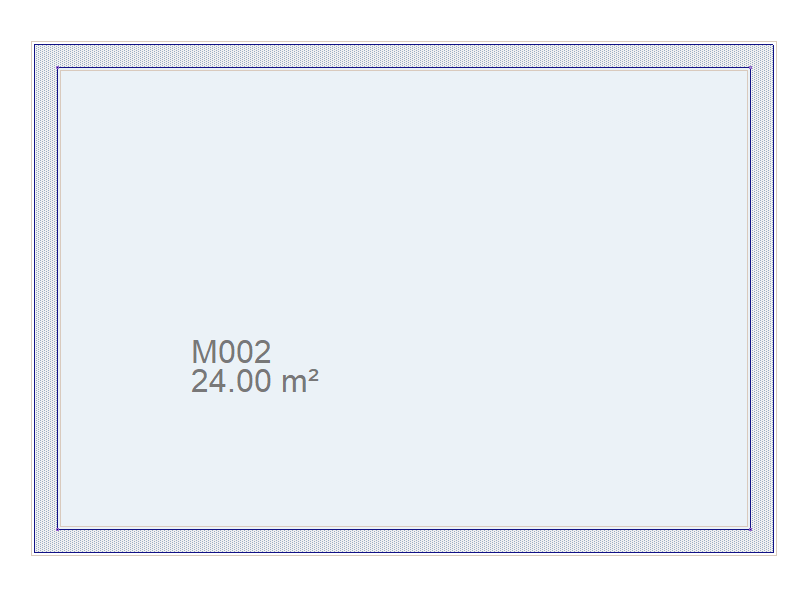

Placing the mouse by clicking the left button
