With the Zoom Selection command, it zooms in or out the view in plan and 2D drawing windows so that the selected object or all objects are visible on the screen.

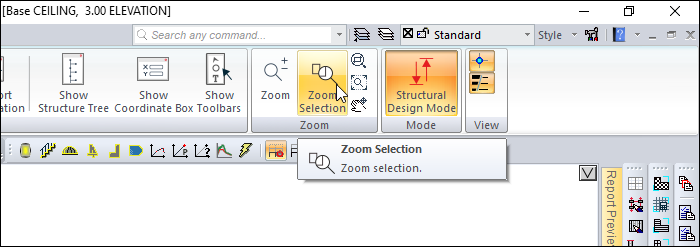

Location of Zoom Selection Command

You can access it from the ribbon menu, View tab, Zoom title.

Usage Steps

  • Click the Zoom Selection icon.

  • Select the object or objects to zoom in.

  • Complete the selection process by clicking the right mouse button.

  • The view will zoom in to the selected object or objects.

Usage step

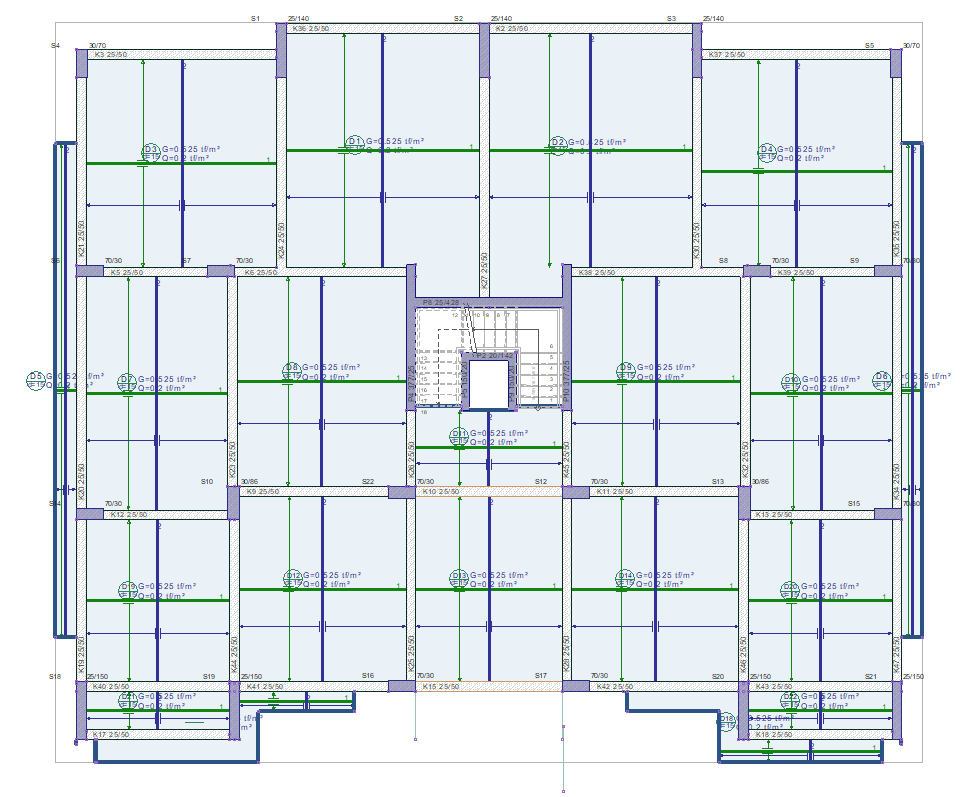

Before zoom selection

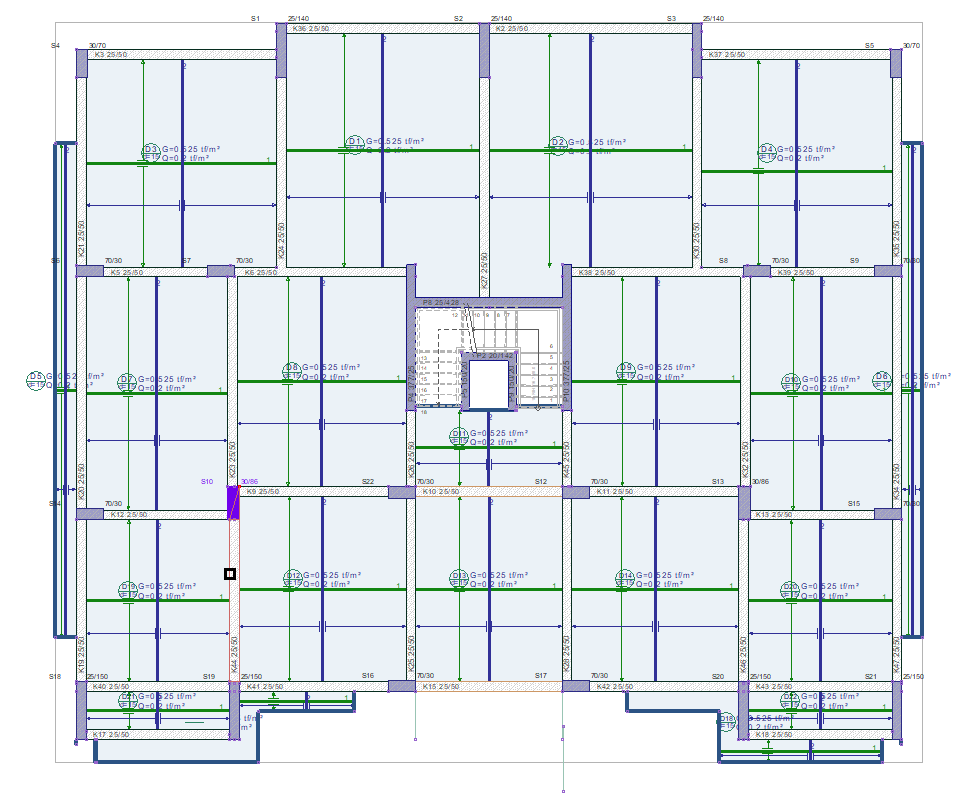

Selecting objects to zoom in

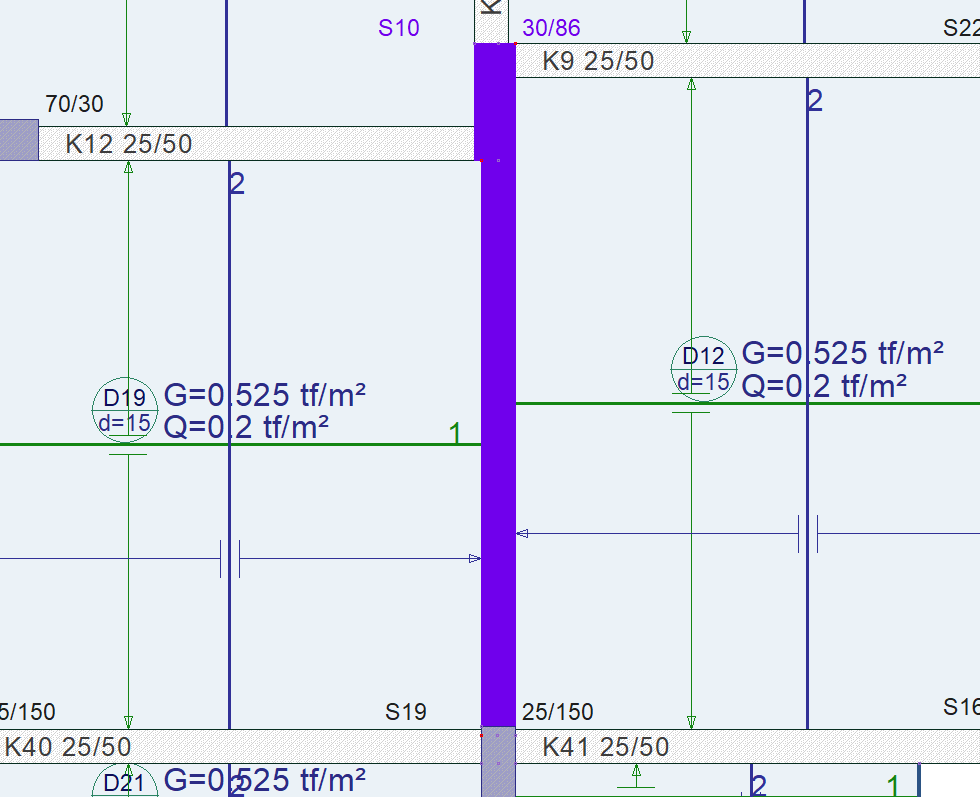

After zoom selection
