Set Trim Algorithm

With the Set Trim Algorithm command, the intersection algorithm is changed for angled object intersections. Object intersection is updated according to the changed trim method.

Location of the Set Trim Algorithm Command

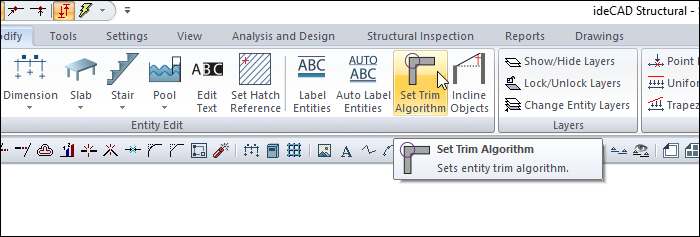

You can access it from the Ribbon menu Modify tab under the Entity Edit heading.

Usage Steps

  • Click the Set Trim Algorithm command.

  • Select your object whose trim method is to be changed by clicking with the left mouse button.

  • The trim method of your object will change.

Usage step

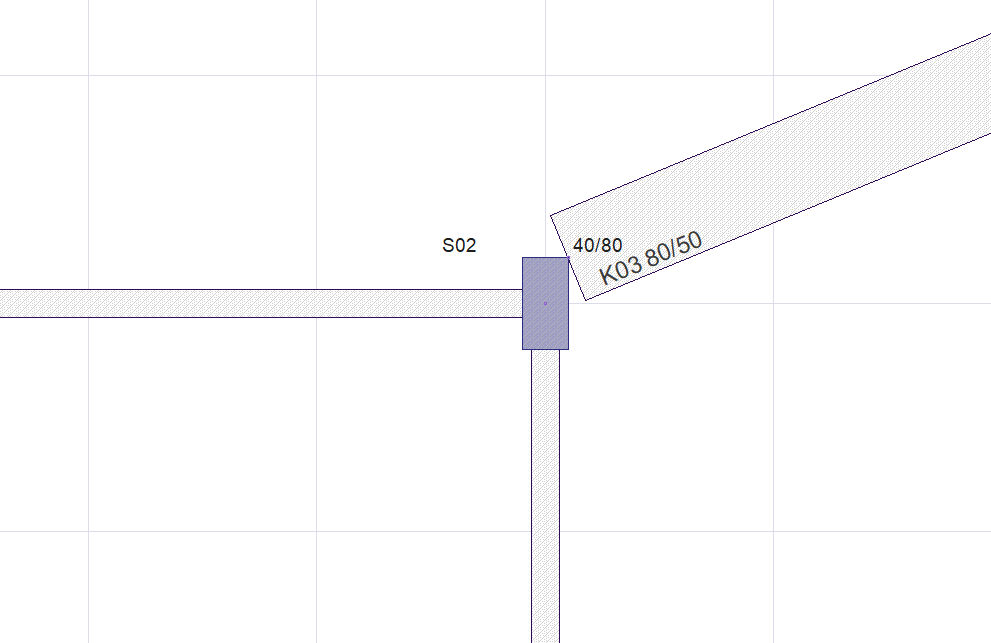

Intersection shape before the set trim algorithm

Choosing the beam to be trimmed

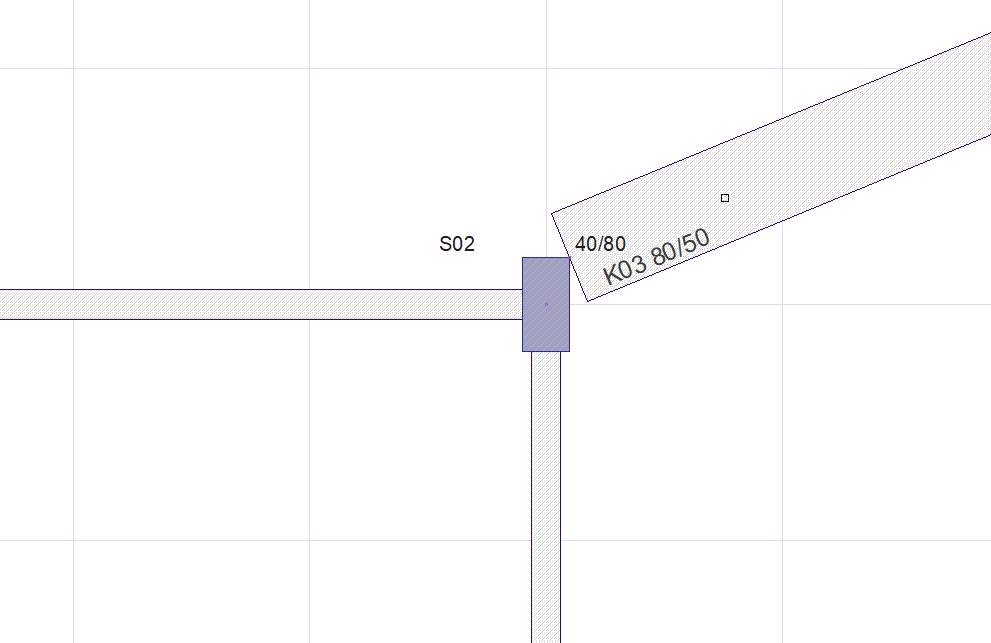

Intersection shape after the set trim algorithm
