Selected Detail Drawings

With the Selected Detail Drawings command, the formwork plan, view and 3D isometric drawings of the selected element or elements are created.

Location of the Selected Detail Drawings Command

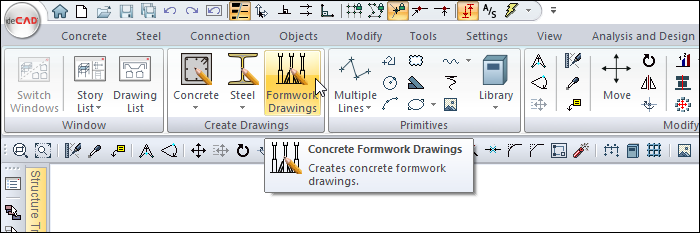

You can access it from the Drawings tab under the Create Drawing heading.

Usage Steps

  • Click the formwork drawings icon. The formwork scaffolding drawings dialog will open.

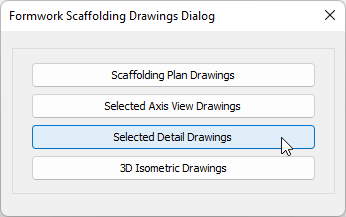

  • In the dialog that opens, click the Selected Detail Drawings button.

  • Scaffolding plan, view and 3D isometric drawings of the selected element or elements will be created.

Sample selected detail drawings

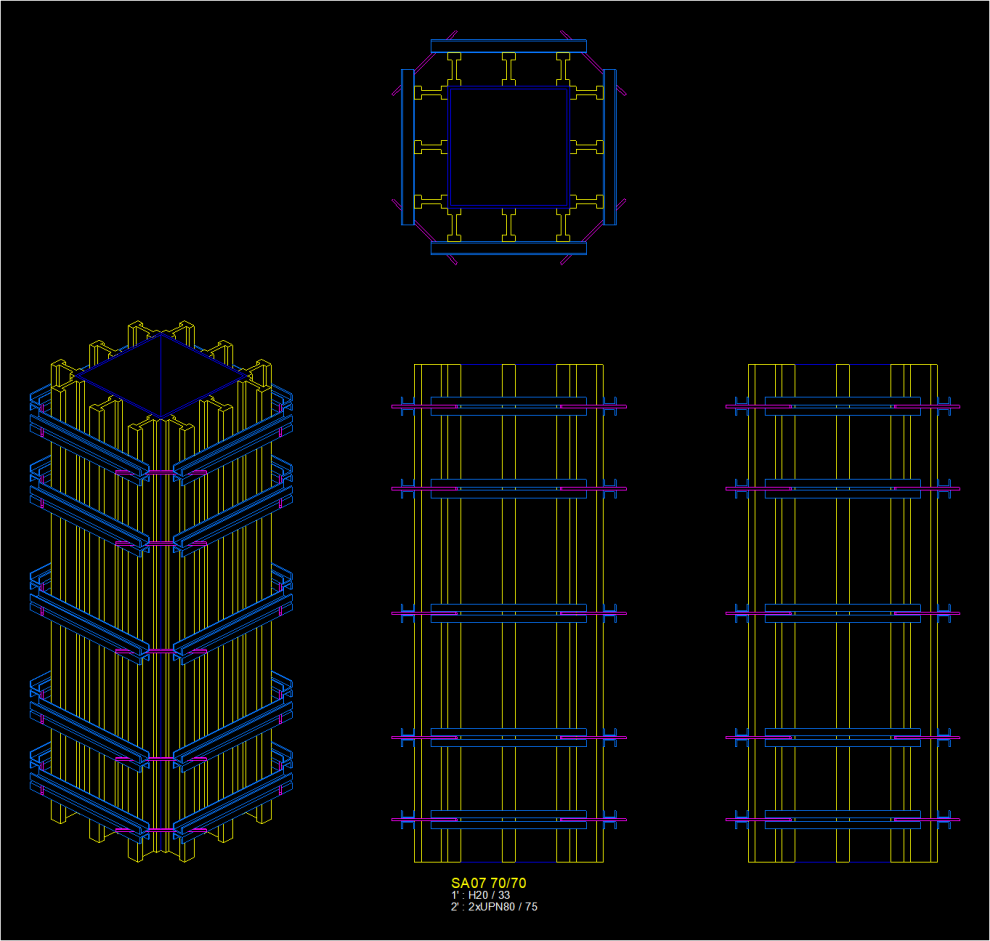

Column detail drawing

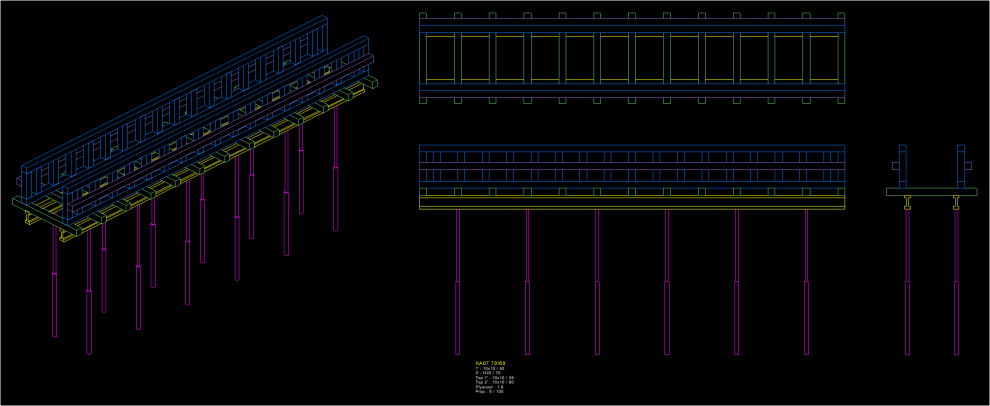

Beam detail drawing

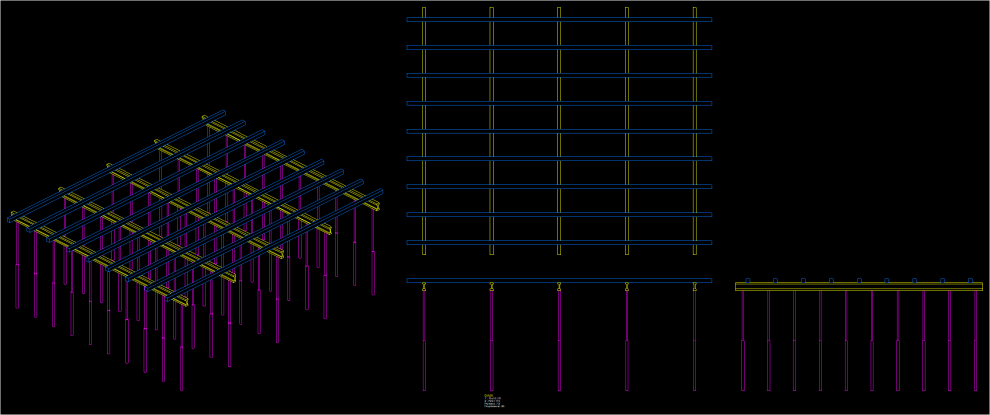

Slab detail drawing
