Defining a Spot Light

Spot light source is defined with the Spot Light command. Light color, elevation, heading and power are changed.

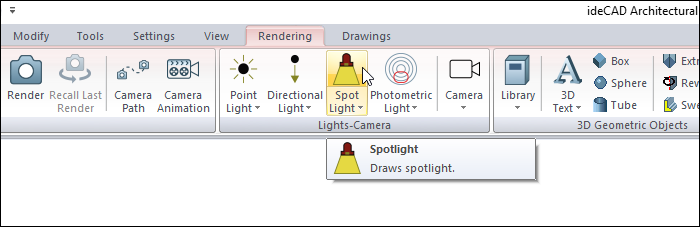

Location of the Spot Light Command

You can access it under the ribbon menu Rendering tab, Light - Camera title.

Usage Steps

  • Click the Spot Light icon.

  • Click the point where you want to define the spot light with the left mouse button.

  • Move the mouse to rotate the light source in the direction you want.

  • When it is in the direction you want, click the left mouse button.

  • The light source will settle.

Usage step

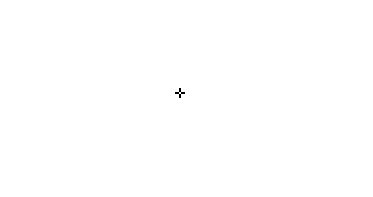

Determining the node where the spot light will be placed

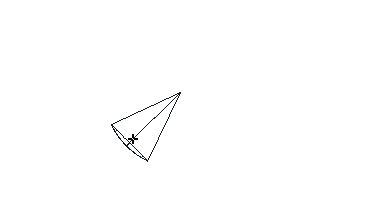

Determining the direction of the spot light

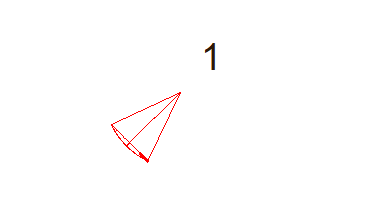

The formation of spot light
