With the Steel Joist command, joists of steel design are created.
Location of Steel Joist Command

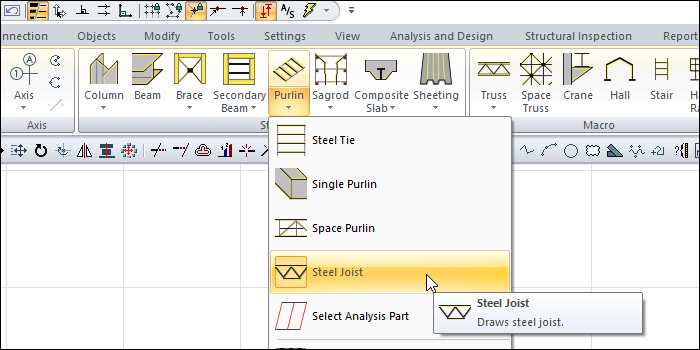

You can access it under the ribbon menu Steel tab, Steel heading.
Usage Steps
-
Click the Steel Joist icon from the ribbon menu .
-
Steel purlin toolbar will open.
-
Select a profile from the list by clicking on the profile list in the steel purlin toolbar.
-
Choose the first of the steel beams or truss overhead heads that the steel joist will form between.
-
When you select your second steel beam or truss head, the Steel Joist Settings dialog will open.
-
In the dialog, there are parameters such as the height of the steel joist module, the number of joists, the layout, etc. After making the settings, click the OK button.
-
Steel joists will be formed.
|
Usage step |
|---|
|

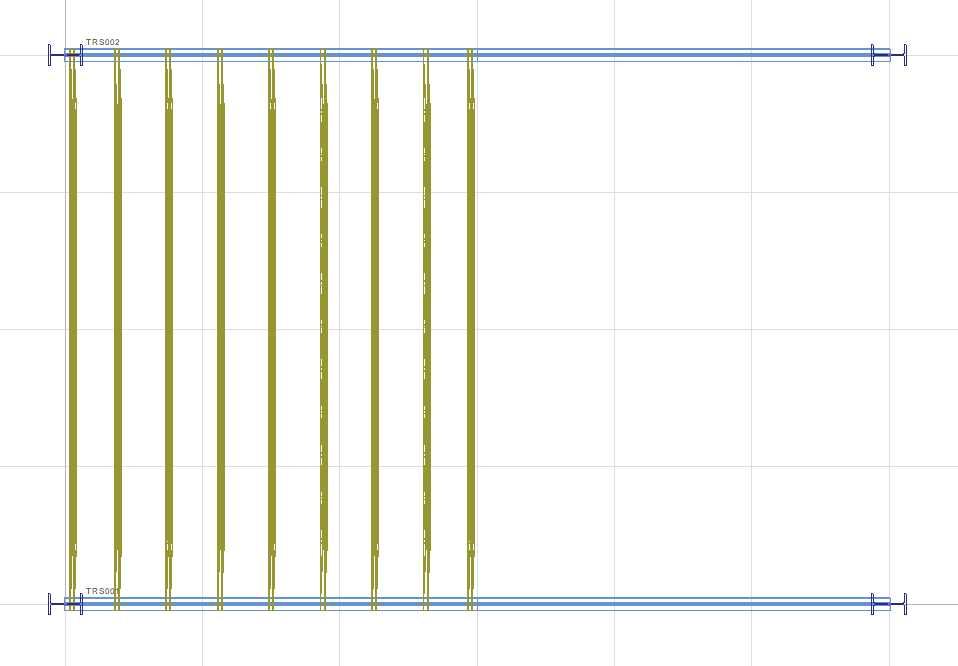

The area to be created in steel joist
|
|

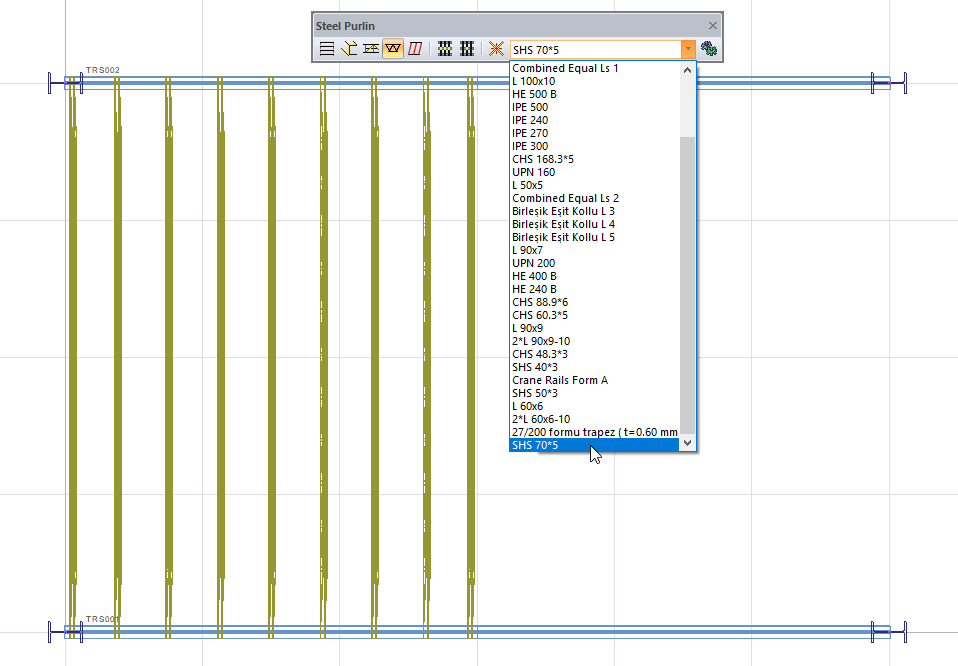

Selecting a profile from the profile list
|
|
Choosing the first of the steel beams or truss upper heads to be formed between the steel joists
|
|

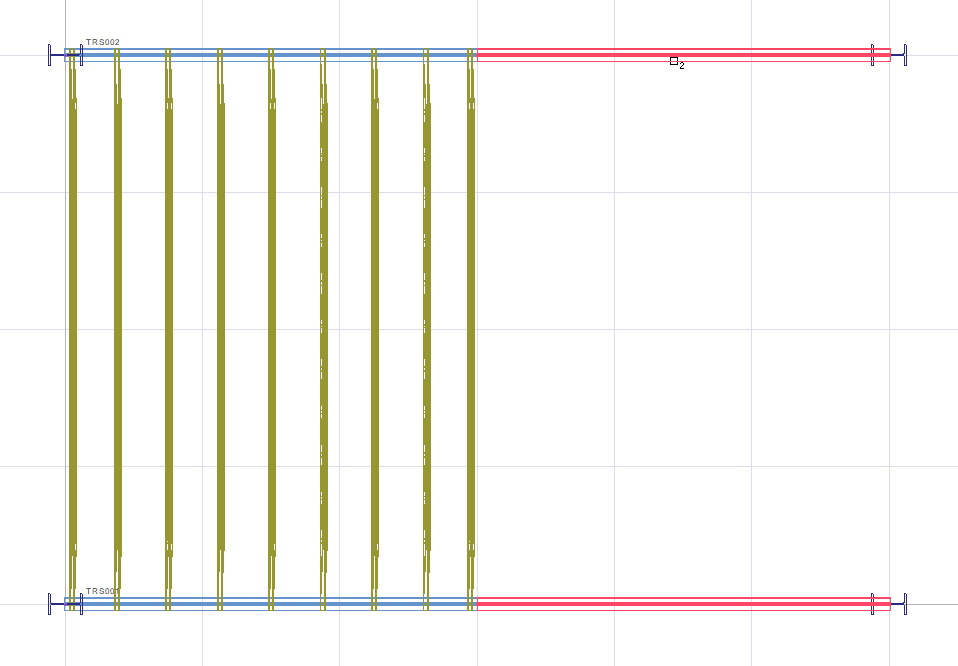

Choosing the second steel beam or truss head
|
|

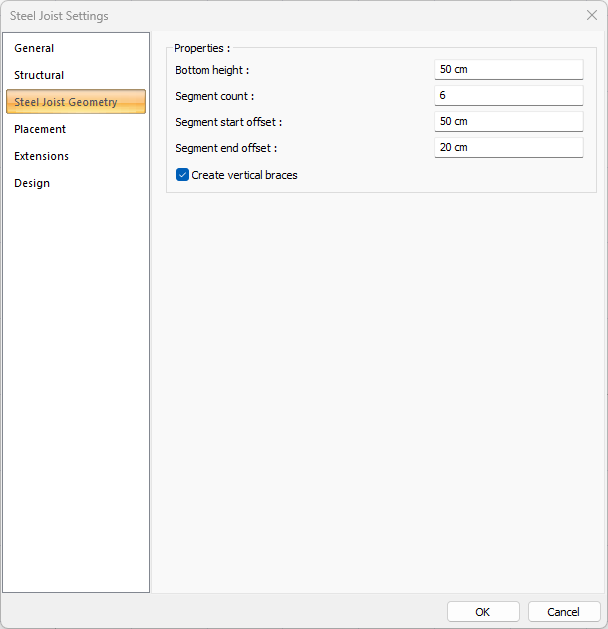

Editing settings in the steel joist settings dialog
|
|

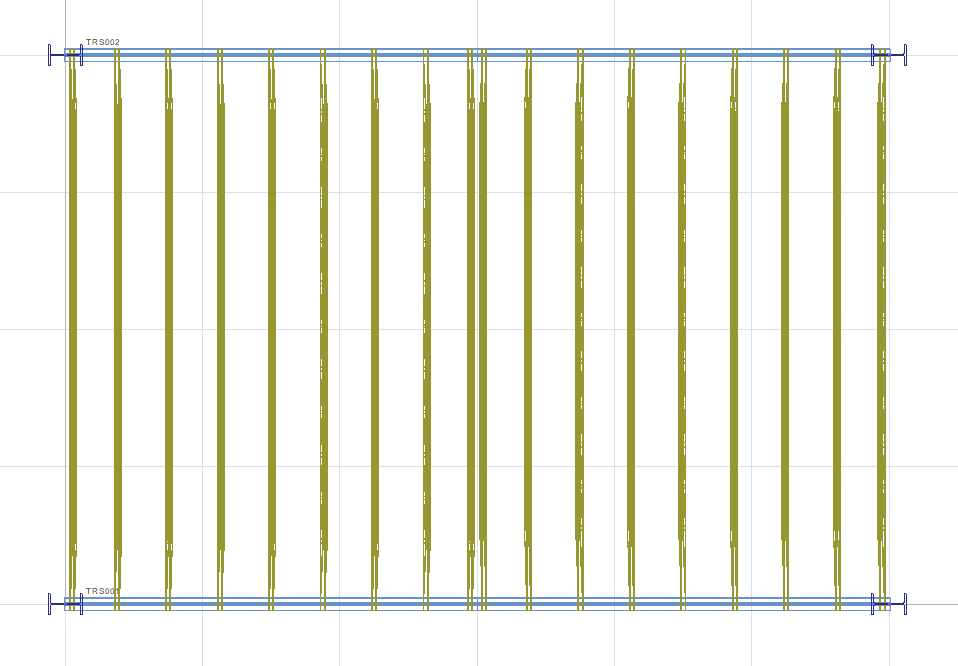

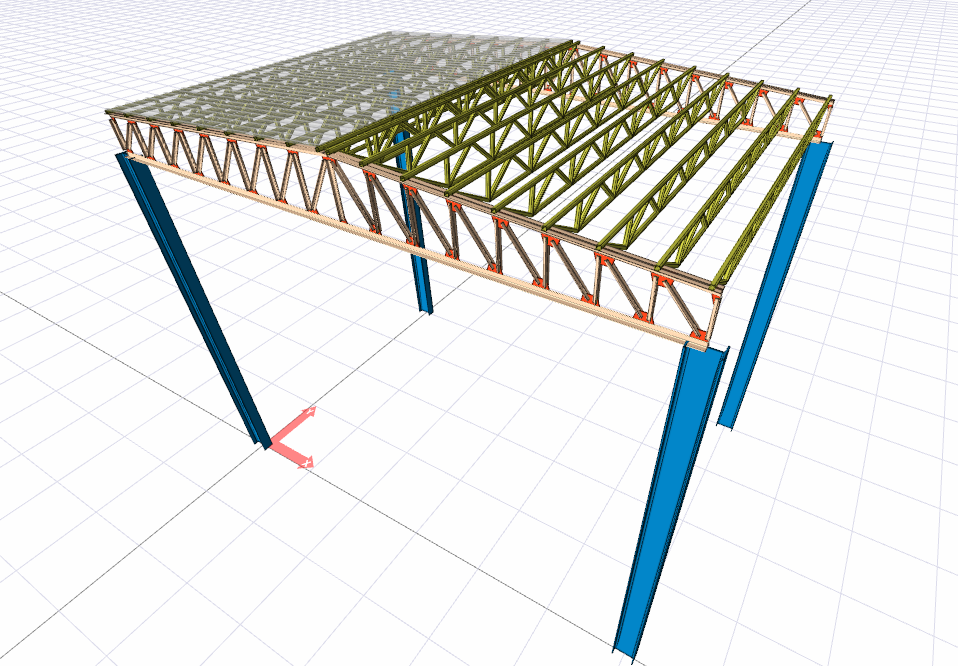

Formation of steel joists
|
