With the Draw Similar Entity command, an object similar to the selected object is drawn. The drawn object has the same properties as the selected object.

Location of Draw Similar Entity Command

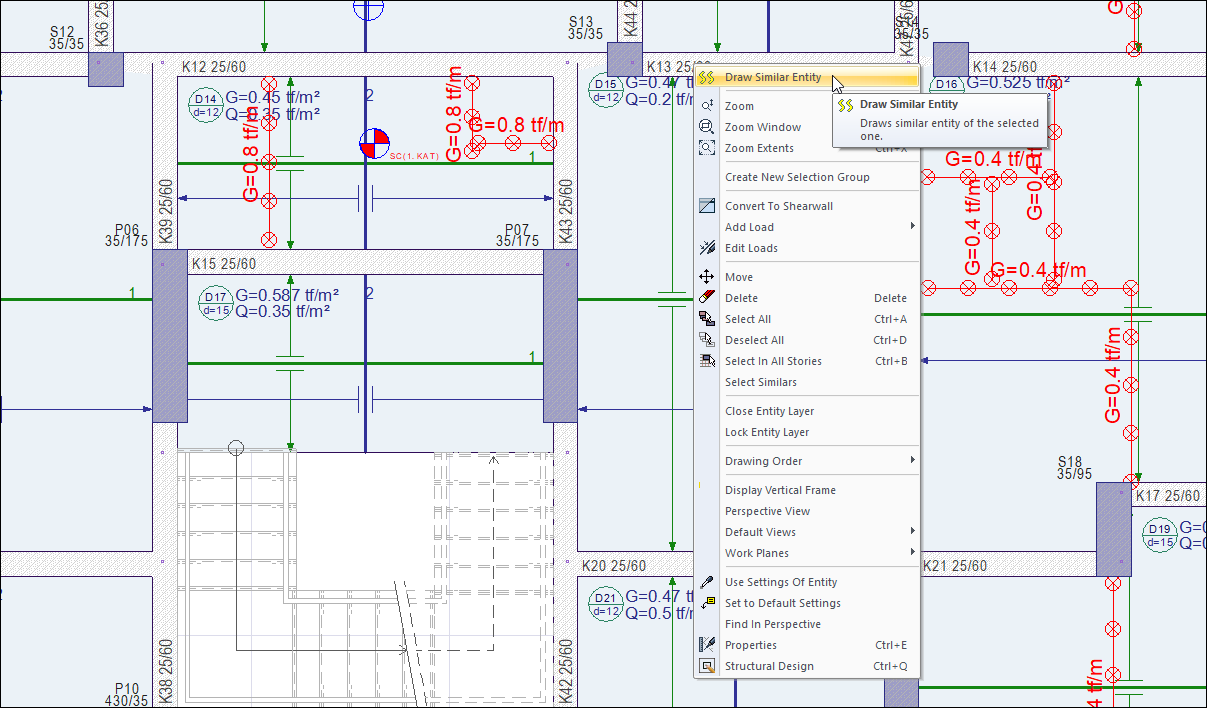

You can access the Draw Similar Entity command from the right-click menu.

Usage Steps

  • Select the object you want to draw with the same properties.

  • Click the right mouse button.

  • Click the draw similar entity command from the drop-down menu.

  • The ideCAD will enter the command of the relevant object and wait ready to be drawn.
