Editing Footer and Adding Additional Elements
With the footer and additional element settings, the footer of the trusses are arranged, additional elements are added. Flat placement and flat placement length are determined in the footer of the truss.
Location of Editing Footer and Adding Additional Element Settings
You can access the Truss Settings dialog by clicking the Settings icon from the Trusses toolbar that opens when the Truss command is clicked . Editing footer and adding additional element settings are located in the Modifications tab.
Usage Steps
Click the Truss icon in the ribbon menu .
The trusses toolbar will open. Here Settings , click the icon.

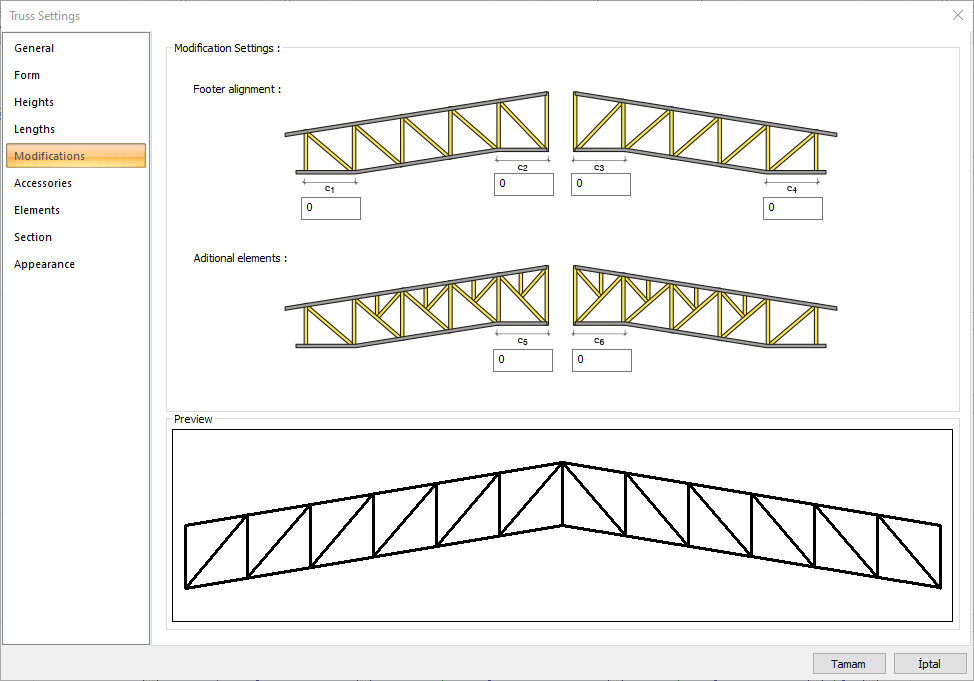

The Truss Settings dialog will be displayed. Here Modifications the tab.
In the truss footer, determine how many of them will be placed straight by entering numbers. The truss preview will change according to the value you entered.
Set the number of additional elements by entering the value. The truss preview will change according to the value you entered.
When you click the OK button, your truss will be formed according to the values you entered.
Modification Tab
Specifications |
|---|

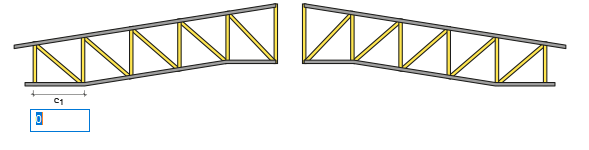

c1  The footer placement value to be made on the left edge of the truss is entered. According to the entered value, a straight placement is made towards the right. |

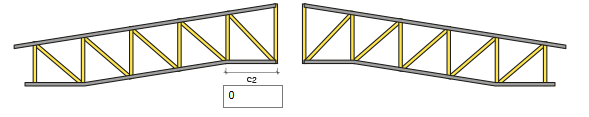

c2  Enter the footer placement value to be made on the left side of the top ridge of the truss. According to the entered value, a straight placement is made towards the left. |

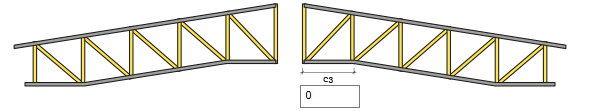

c3  Enter the footer placement value to be made on the right side of the top ridge of the truss. According to the entered value, straight placement is made towards the right. |

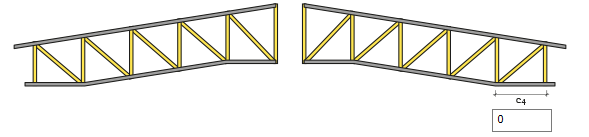

c4  Enter the footer placement value to be made on the right edge of the truss. According to the entered value, a straight placement is made towards the left. |

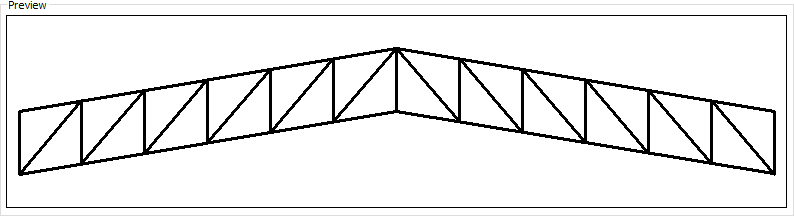

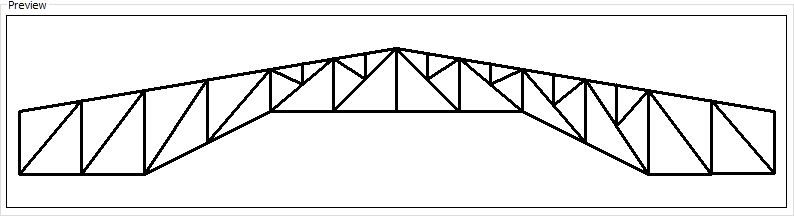

Preview  |
Sample Settings and Previews

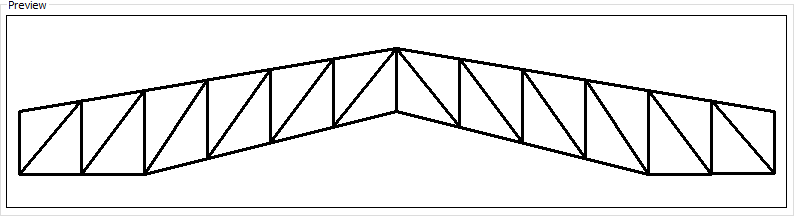

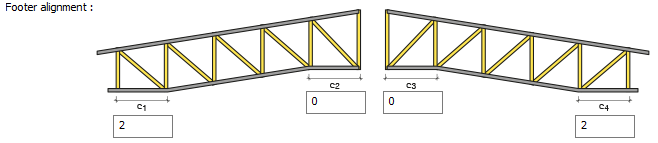

When c1 and c4 are 2   |

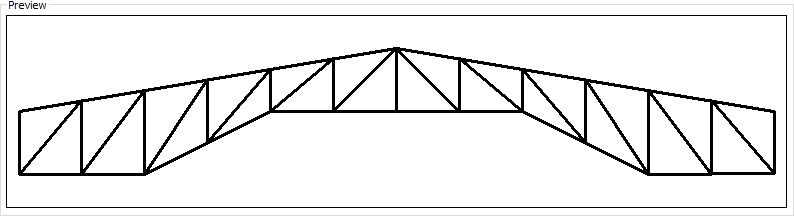

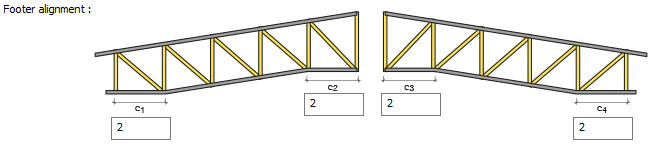

When c1, c2, c3 and c4 are 2   |

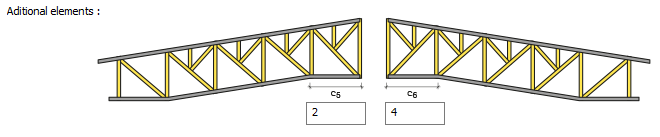

When c5 is 2 and c6 is 4   |
