Dome Drawings
Drawings of domes whose calculation axes have been defined and analyzed can be prepared by using the Dome Drawings command.
Location of the Dome Drawings Command

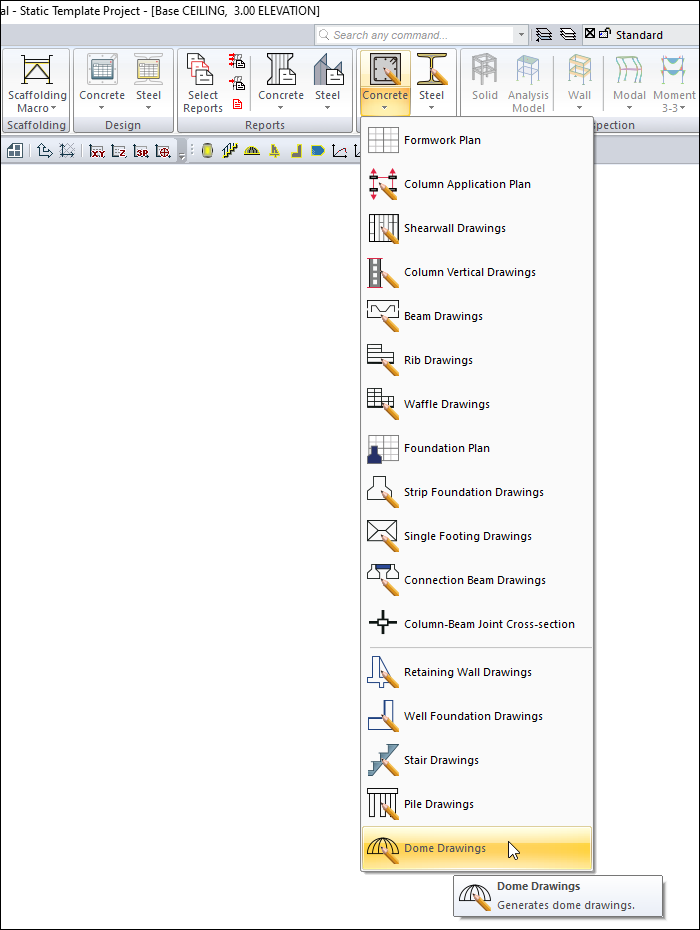

You can access it under the ribbon menu Concrete tab, Create Drawing heading.
Usage Steps
Click on the Dome Drawings icon.
The drawing properties dialog will open. If there is a different situation in this dialog, change the parameters related to the drawing.
When you click the OK button, the dome drawing will be created.
General Tab
Specifications - Colors |

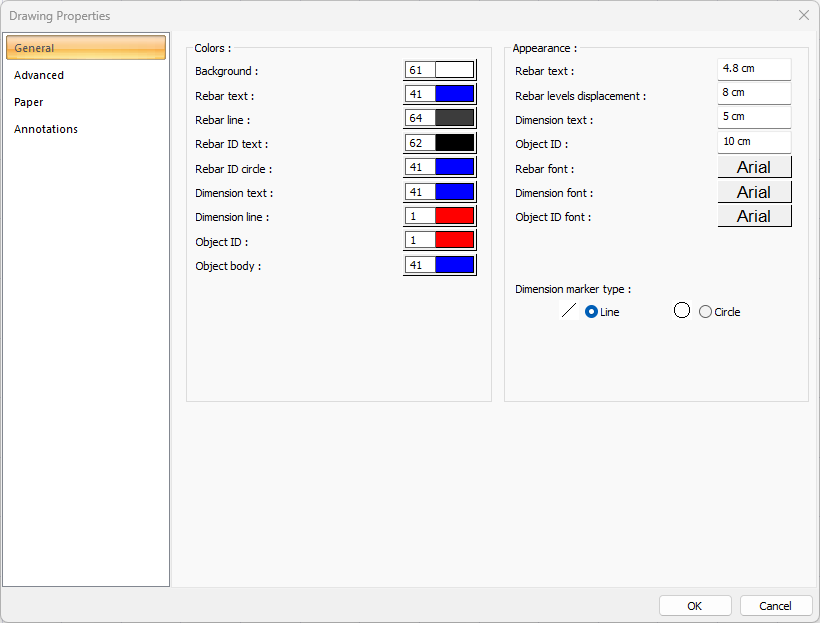

Background color  Sets the background color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar text  Sets the color of the rebar text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar line  Sets the color of the reinforcement line. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar ID text  Adjusts the color of the rebar ID text. When the color box is clicked, the appropriate color is selected from the window that opens. |
Rebar ID circle  Adjusts the color of the rebar ID circle. When the color box is clicked, the appropriate color is selected from the window that opens. |
Dimension text  Sets the dimension text color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Dimension line  Sets the dimension line color. When the color box is clicked, the appropriate color is selected from the window that opens. |
Object ID  Sets the color of the object ID. When the color box is clicked, the appropriate color is selected from the window that opens. |
Object body  Sets the color of the object body. When the color box is clicked, the appropriate color is selected from the window that opens. |
Specifications - Appearance |
Rebar text  The height of the rebar text is entered. |
Rebar levels displacement  The distance between the two rebar texts is entered. |
Dimension text  The height of the dimension text is entered. |
Object ID  The height of the object ID is entered. |
Rebar font  The rebar font is selected. |
Dimension font  Dimension font is selected. |
Object ID font  Object ID font is selected. |
Dimension marker type  The dimension marker type is selected. |
Advanced Tab
Specifications |
|---|

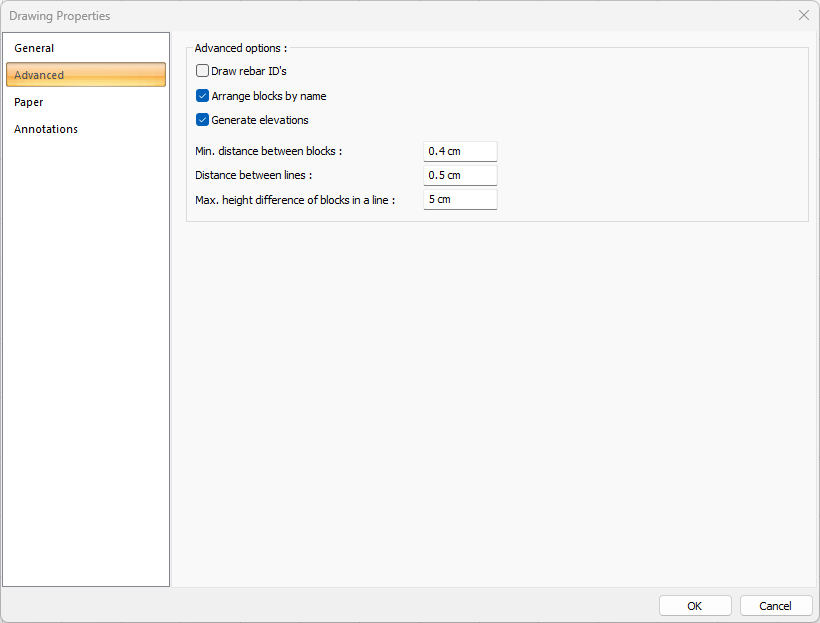

Draw rebar ID’s  If checked, rebar ID’s are shown in the drawings. If not checked, it will not be displayed. |
Arrange blocks by name  In the expansions, the objects are marked if they want to be placed according to the element names while placing the layout on the layout. If not marked, the expansions are placed according to the principle of the most economical use of the layout. The name is ignored. Names can be mixed. Object names; For example, if beam is mentioned, they are names such as K101, K104 etc. The expansion is beam opening, foundation opening, rib opening, etc. |
Generate elevations  If checked, elevations are shown in the drawings. If not checked, it will not be displayed. |
Min. distance between blocks  Minimum horizontal distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning. |
Distance between lines  Minimum vertical distance between blocks is entered. The block is each opening itself, with its rebars, sections and dimensioning. |
Max. height difference of blocks in a line  The maximum height difference of each block in the row (vertical direction) is entered. If the difference between the height of the block to be placed and the height of the previously placed block is smaller than the value entered on this line, the layout is made. If it is large, no settlement is made. It is left to the next row. The block is each opening itself, with its rebars, sections and dimensioning. |
Paper Tab
Specifications |
|---|

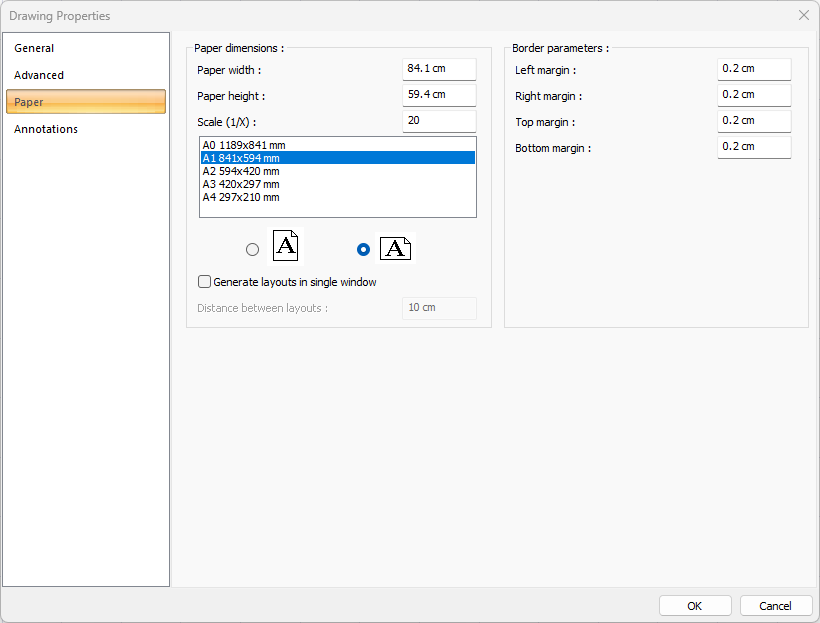

Paper width  As well as selecting the standard paper sizes, any paper width value can also be entered. |
Paper height  Standard paper sizes can also be selected, and any paper size value can be entered. |
Scale (1/X)  In what scale the expansions will be drawn, that value is entered. |
Standard paper sizes  Standard paper sizes are listed. The layout size can be selected from the list, as well as the layout dimensions can be determined by entering the width and height values. |
Vertical/Horizontal use  It is determined whether the layout will be used horizontally or vertically. |
Generate layouts in single window  By selecting the option, layouts are created in a single window. |
Distance between layouts  The distance between the layouts to be created side by side is entered. |
Left margin  The distance of the layout border from the axis border to the left side is entered. |
Right margin  The distance from the axis border to the right side of the layout border is entered. |
Top margin  Enter the distance from the axis border to the top side of the layout border. |
Bottom margin  The distance from the axis border to the bottom side of the paper border is entered. |
Annotations Tab
Specifications |
|---|

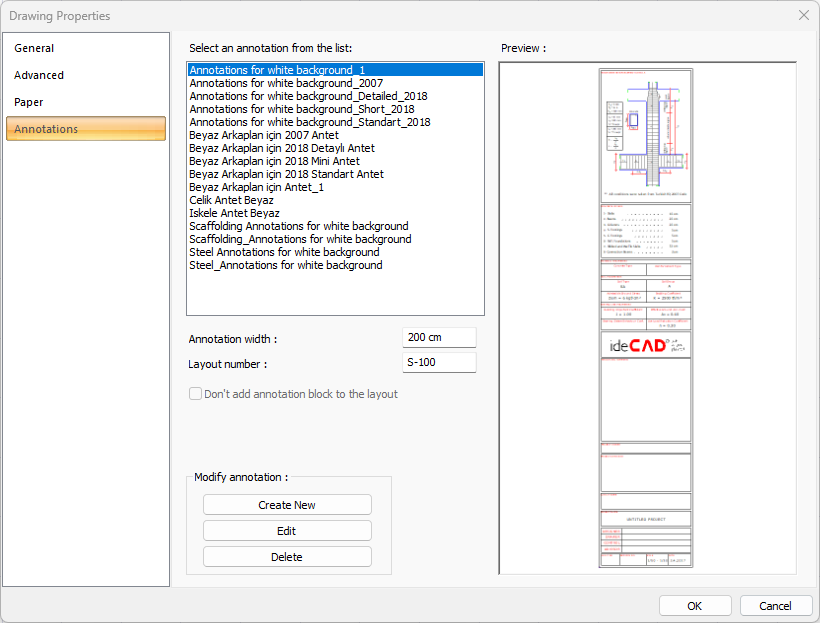

Select an annotation from the list  Defined annotations are listed. |

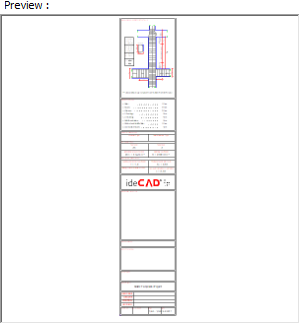

Preview  There is a preview of the annotation selected from the list. |
Annotation width  Annotation width is determined. |
Layout number  The layout number is determined. |
Create New  The new annotation is created. |
Edit  The annotation is edited. |
Delete  The annotation is deleted. |
Don’t add annotation block to the layout  If it is checked, annotation will not be added to the layouts. |
