Column - Foundation Connection (Stiffened Baseplate) Report

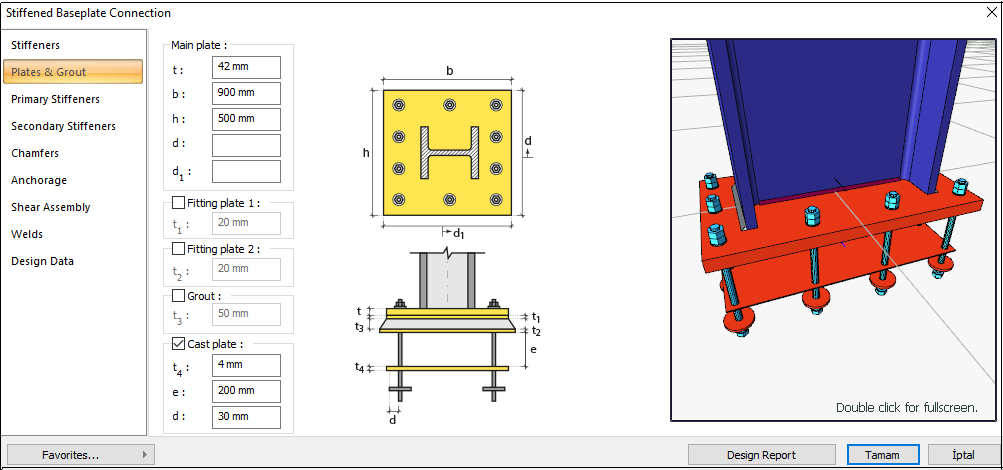

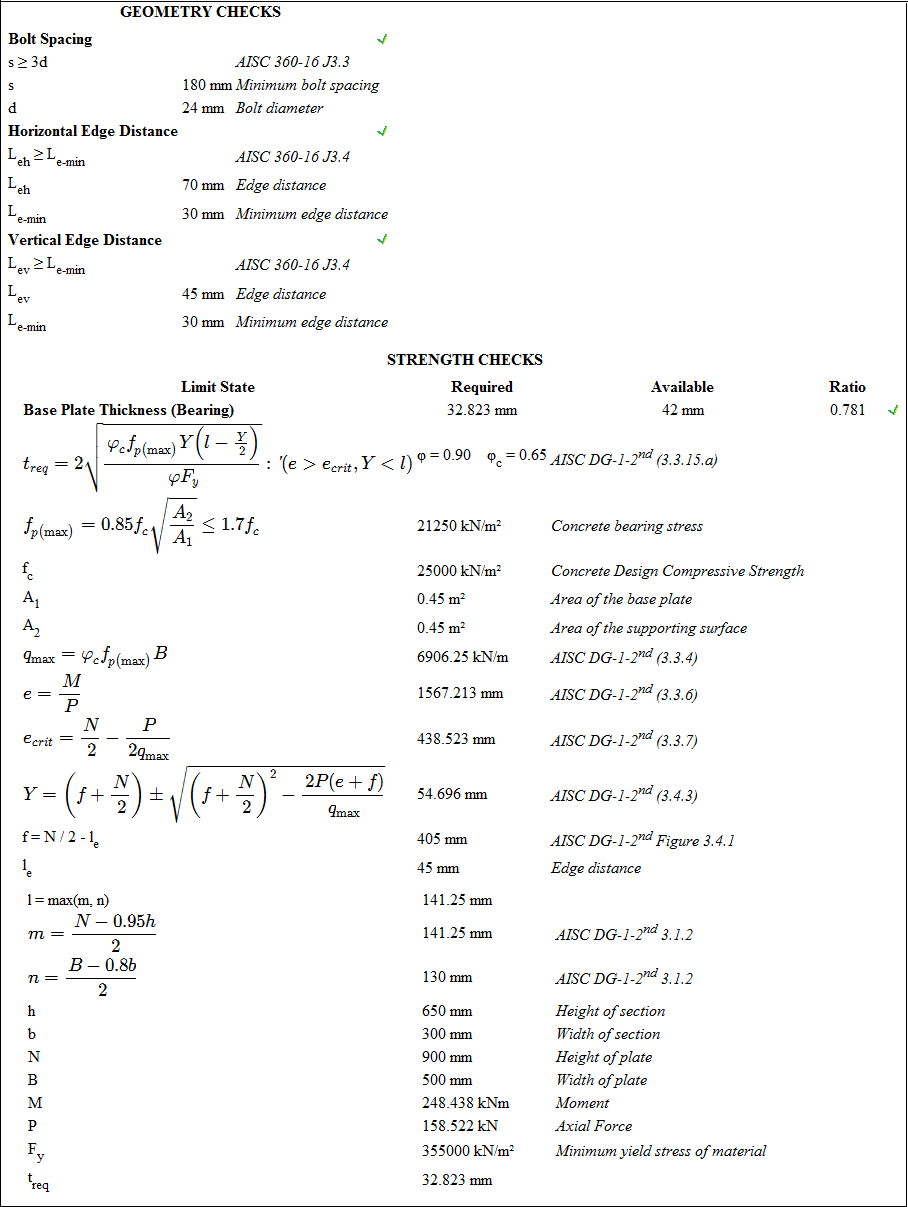

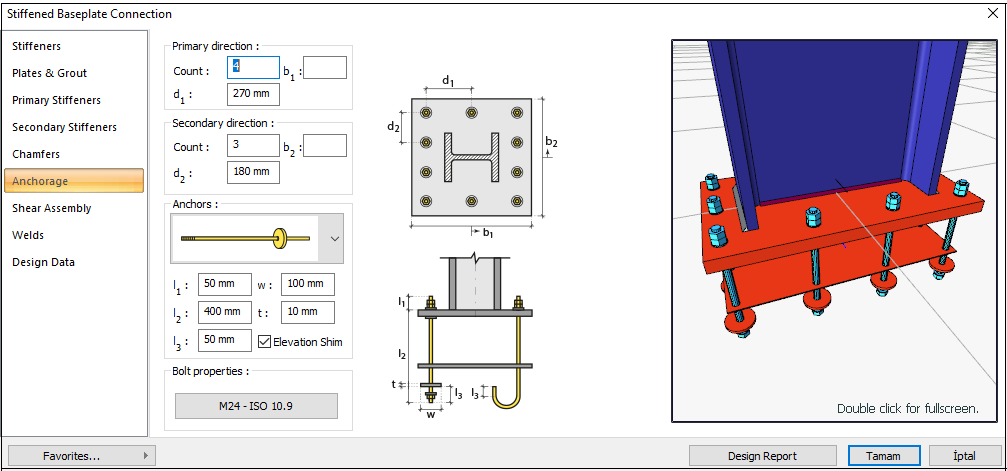

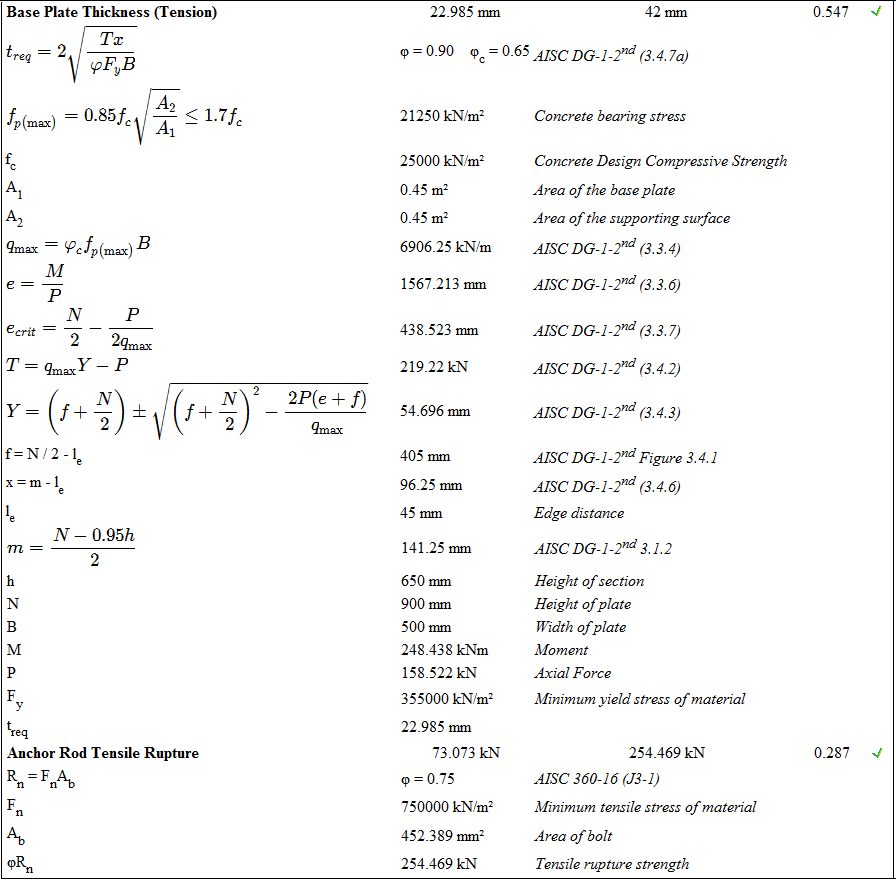

A sample of column-foundation connection (stiffened baseplate) according to AISC 360-16 & Design Guide 1 report is given below.
Limit states of Column-Foundation Connection (Stiffened Baseplate) are checked automatically according to AISC 360-16 & Design Guide 1.

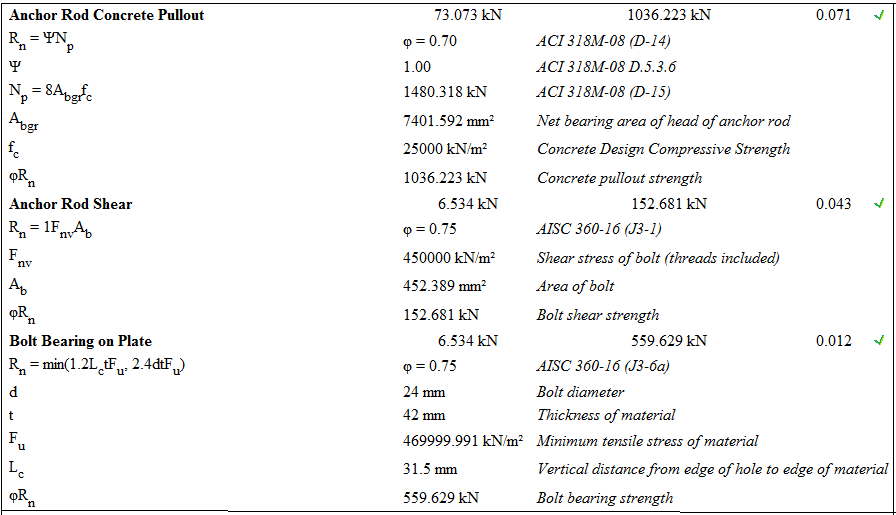

Anchor Rod Concrete Pullout limit state is checked automatically according to ACI 319M-18.
