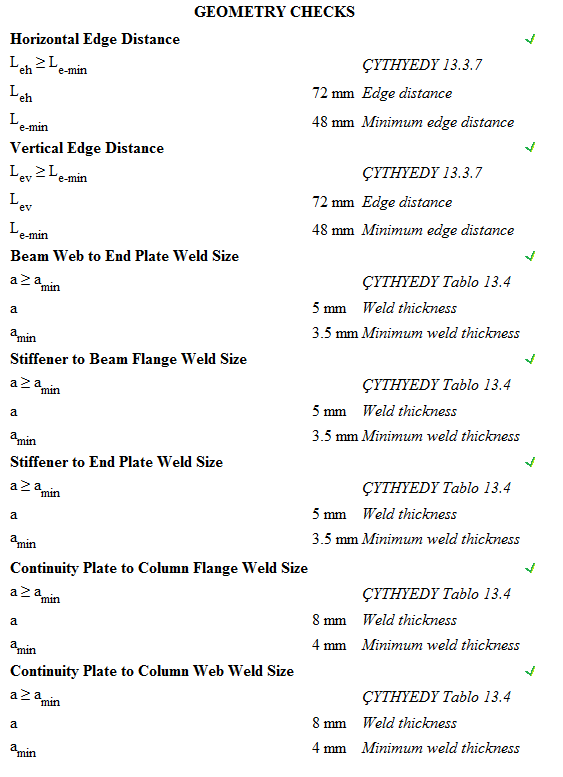

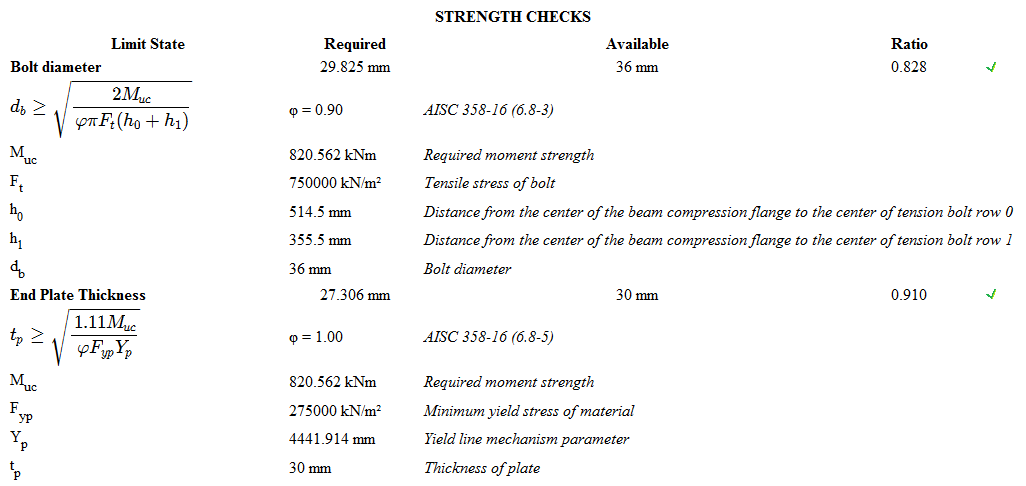

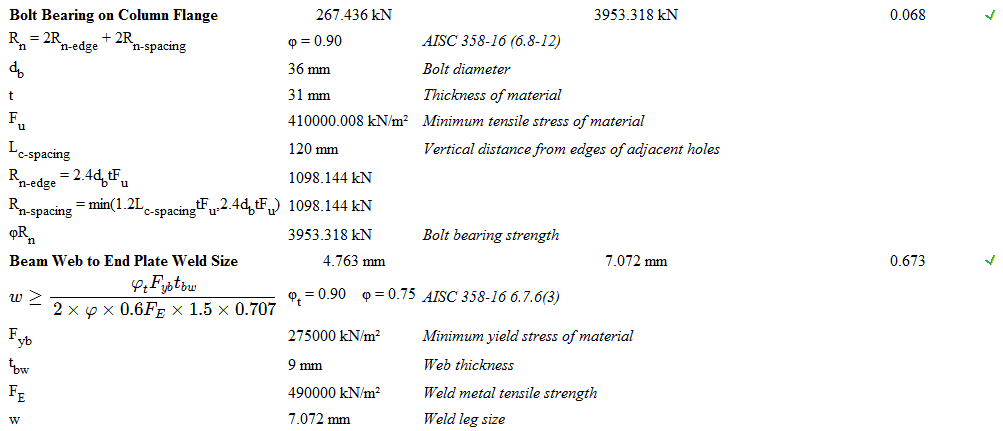

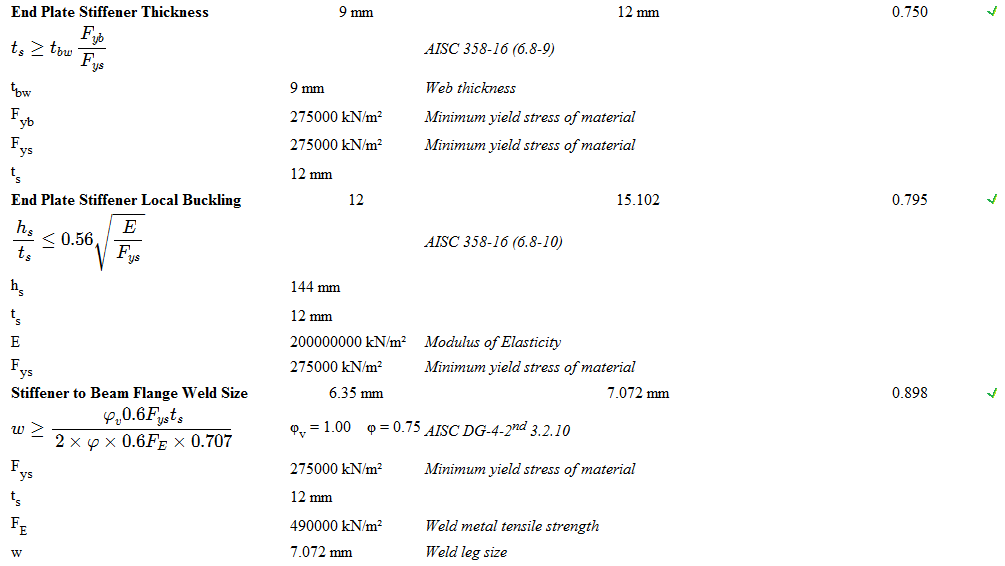

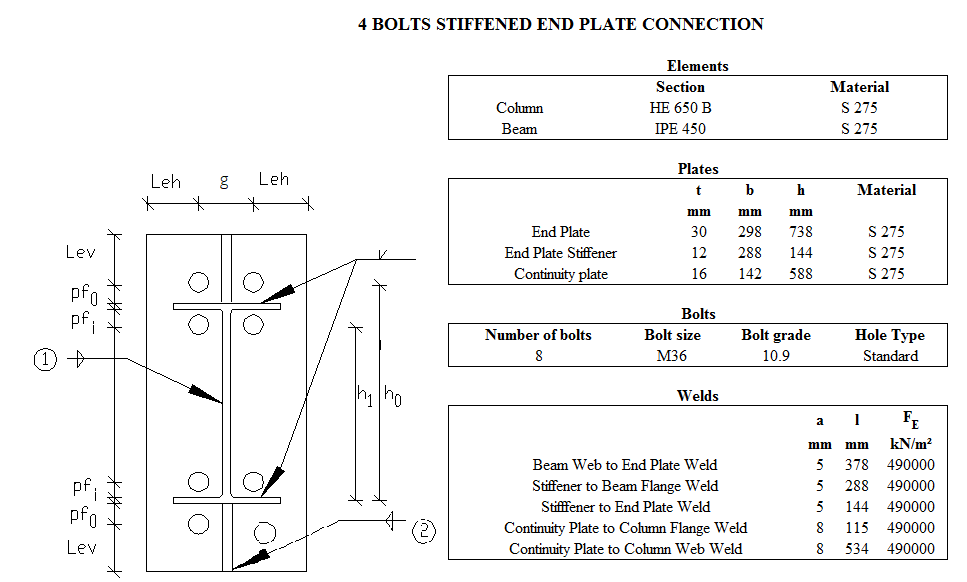

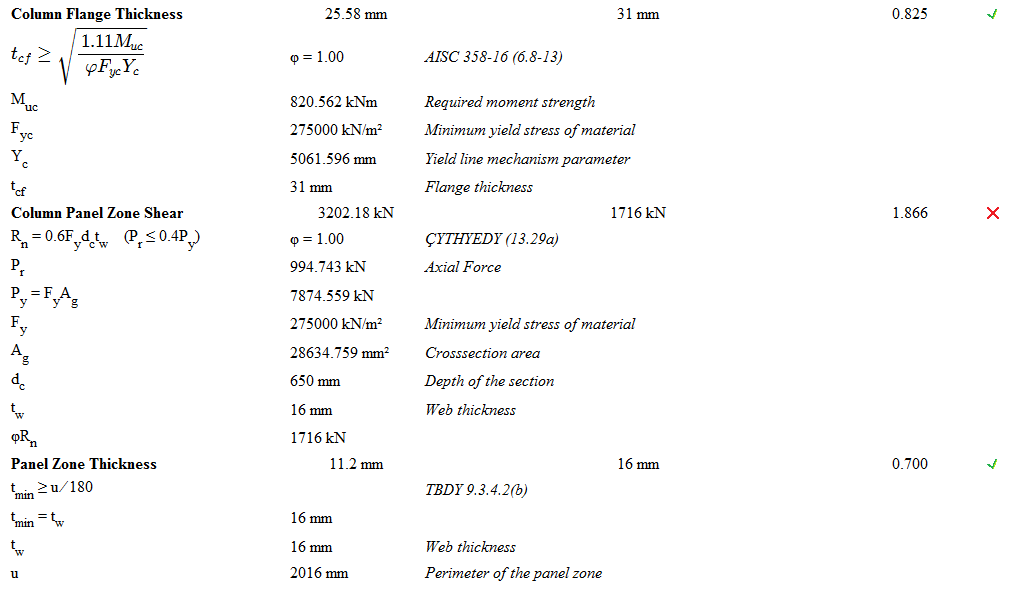

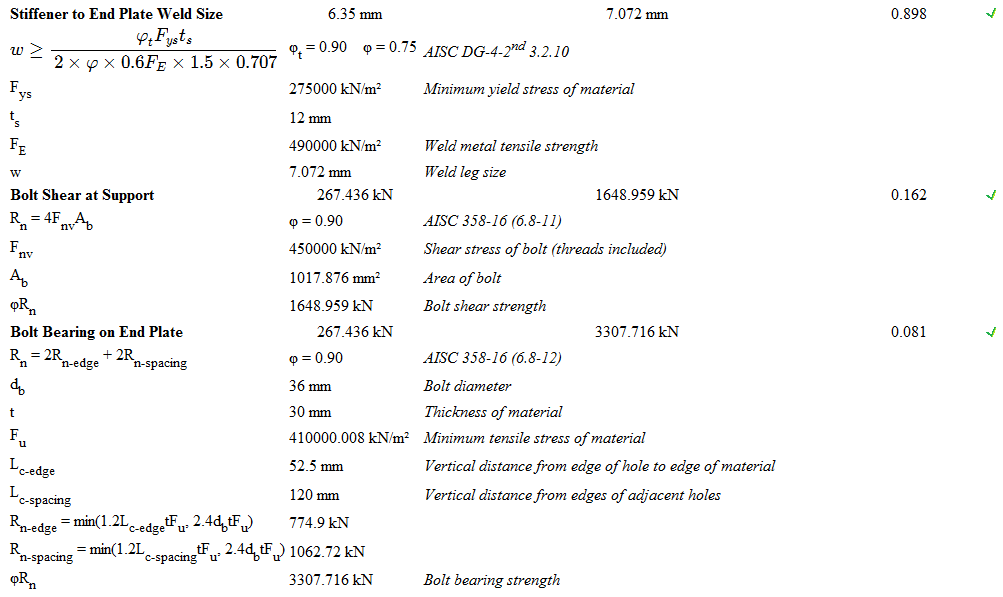

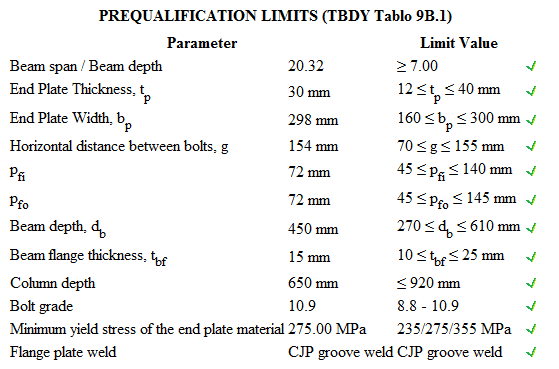

4 Bolts Stiffened End Plate Connection Report

The 4 Bolts Stiffened End Plate Connection is made automatically according to the Design, Calculation and Construction Principles of Steel Structures (ÇYTHYEDY) , AISC 360-16, AISC 358-16 and TBDY regulations, and the connection report is created.
