Crane Beam Design Example per AISC 360-16

crane.ide10

Section and Material Information: HEA 300 - S235
Span: 5 m
Building total length: 25 m
Crane capacity: 10 tf

Local Buckling

Flexural Strength for Major Axis

Yielding Limit State

The limit state of lateral-torsional buckling does not apply.

Flexural Strength for Minor Axis

Design Under Combined Loading

Shear Control

According to AISC 360-16 G2-1,

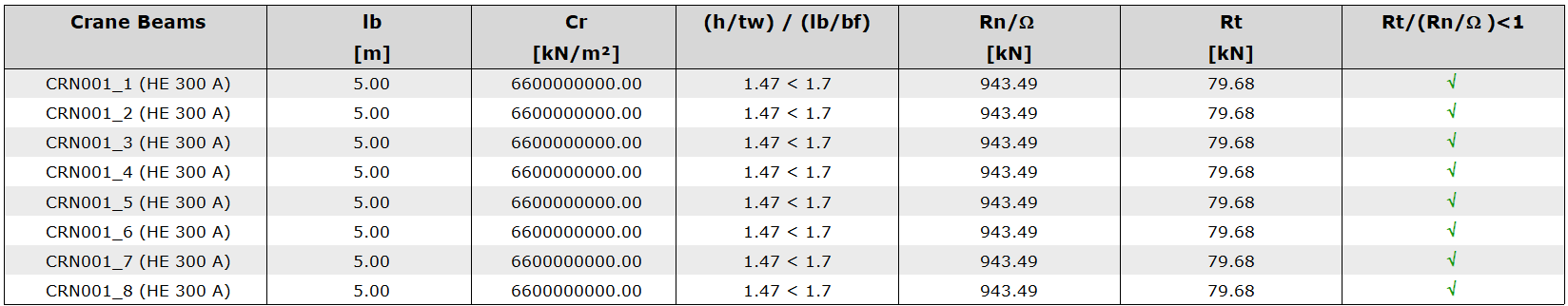

Web Lateral Buckling

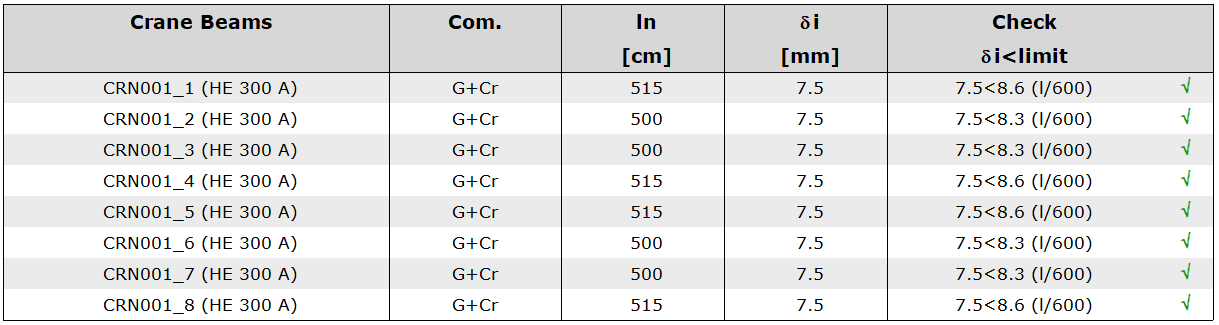

Deflection Check

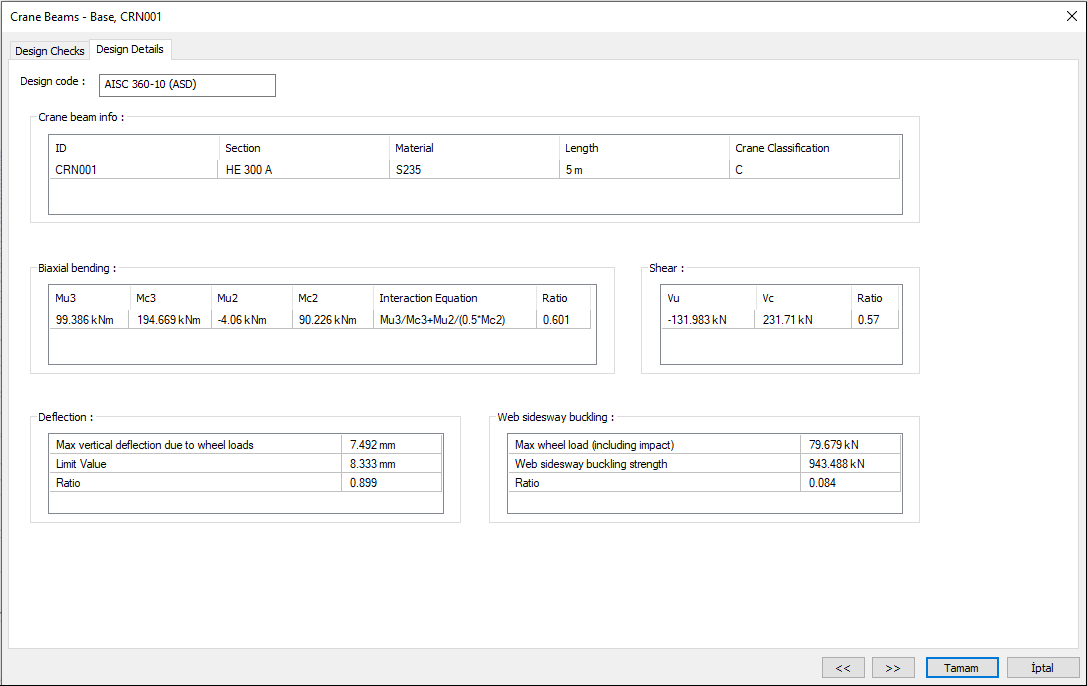

These results can be compared from the steel design screen and the crane beam report.
