Creating a Curve Beam

With the Curve Beam command, a curve beam definition is made between each point clicked with the mouse. Beams or beams are defined in curved form by clicking the intended points between the columns.

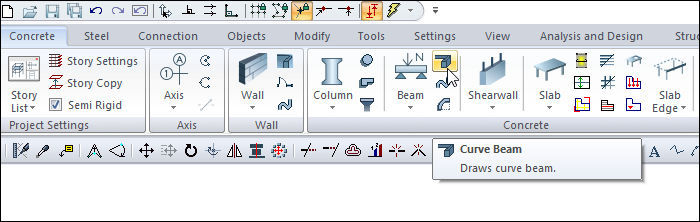

Location of Curve Beam Command

You can access it under the ribbon menu, Concrete tab , under the Concrete heading.

Usage Steps

  • Click the Curve Beam icon.

  • Determine the starting point of your curve beam by clicking a column.

  • Move the cursor to give your intended form-fitting curve and click the left button again.

  • Click another point in the same way if the curve form is to be continued.

  • As you identify the points, your curve beam will take shape according to the position of the points.

  • Finally, click on the column to which the curve beam will be attached.

  • End the command by clicking the right mouse button.

  • Your curve beam will form.

  • Exit the command by pressing the Esc key on the keyboard.

Usage step

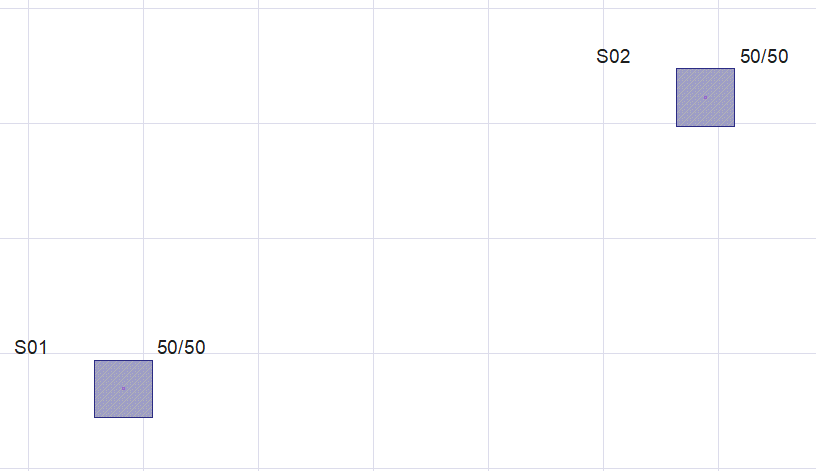

Columns between which curve beams will be drawn

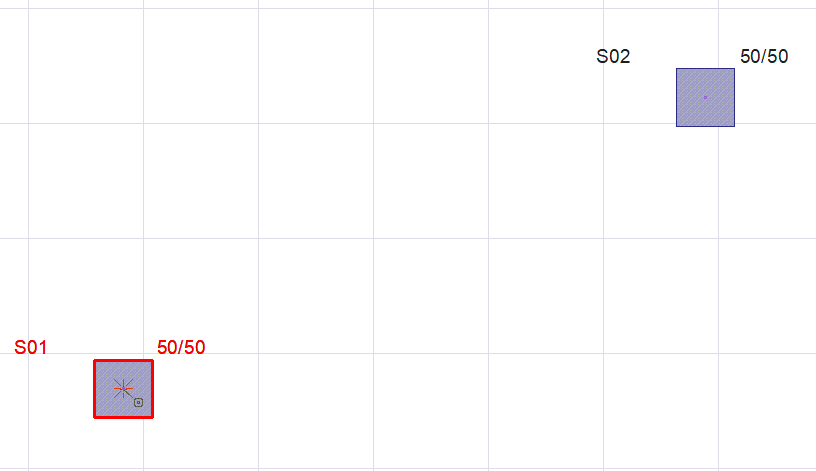

Determining the starting point of the beam

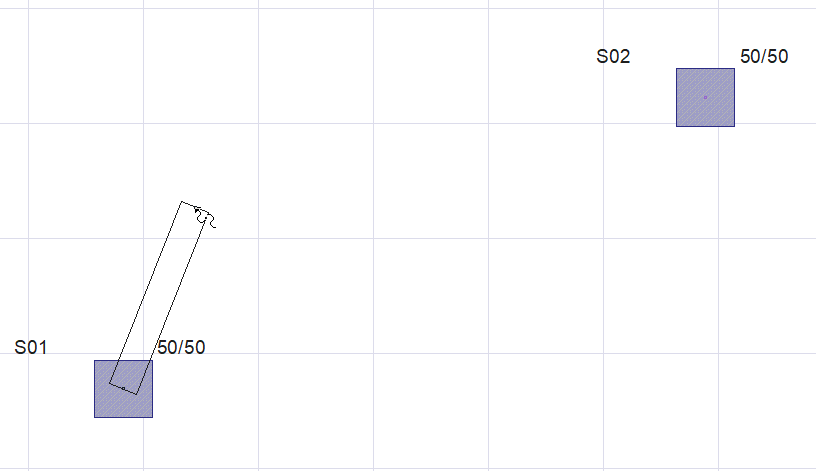

Determination of the second point

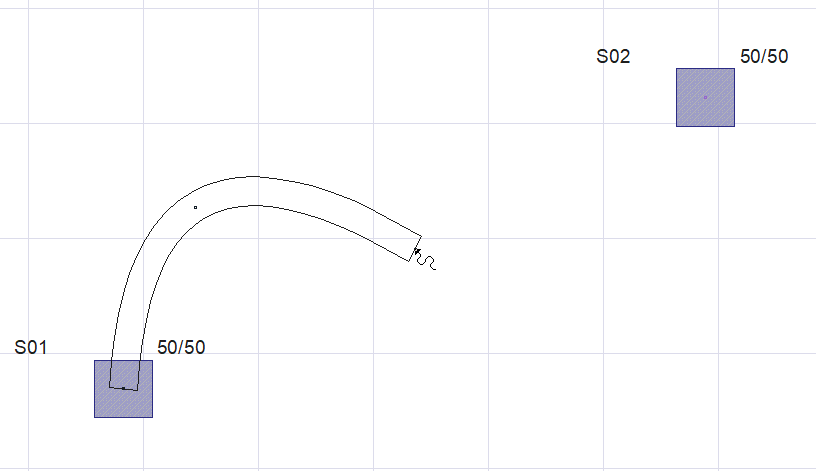

Determining the third point

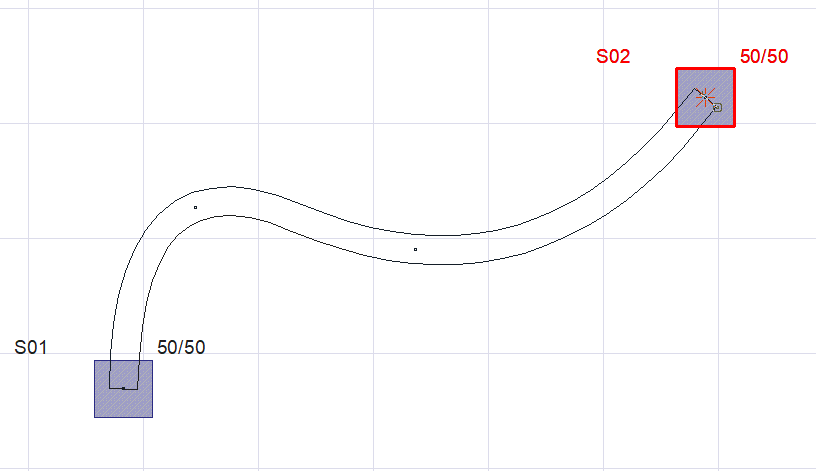

Determining the point where the curve beam will end

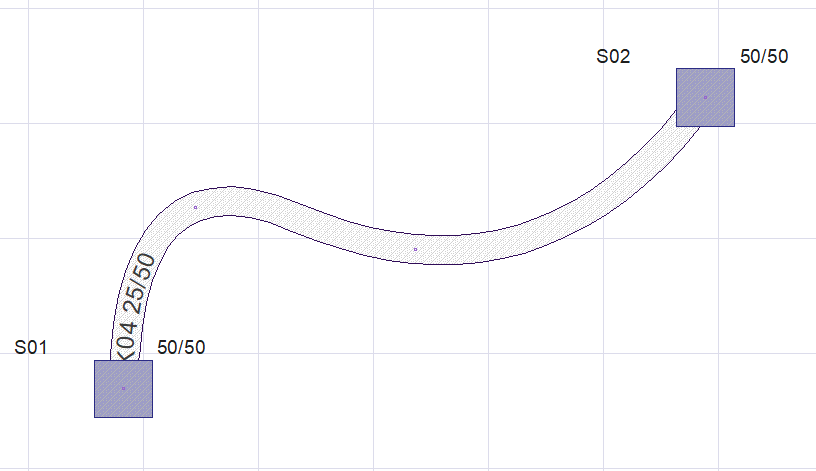

Formation of curve beam
