Chord Count of Vault

When creating vaults, it is determined how many pieces they will be created in with the Chord Count feature. As the chord count increases, the vault lines become rounder.

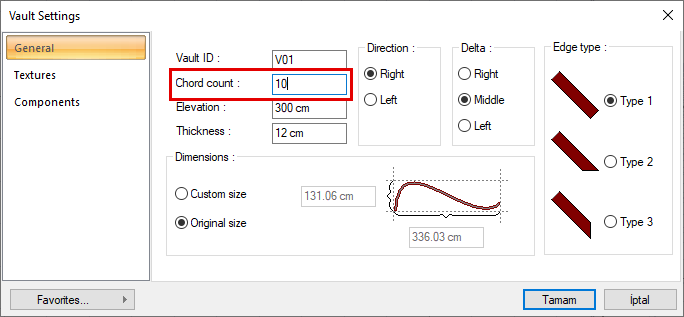

Location of the Chord Count Feature

You can access the chord count feature from the general tab of the vault settings dialog.

Examples of vaults with different chord count

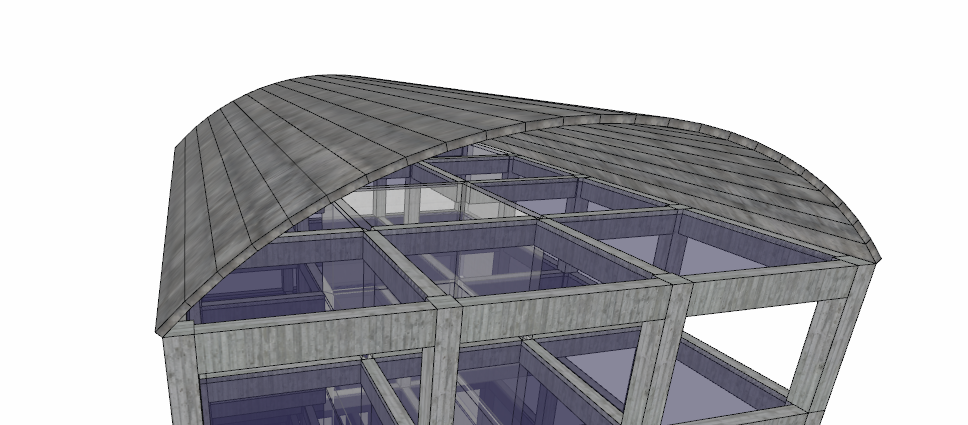

Chord count 25

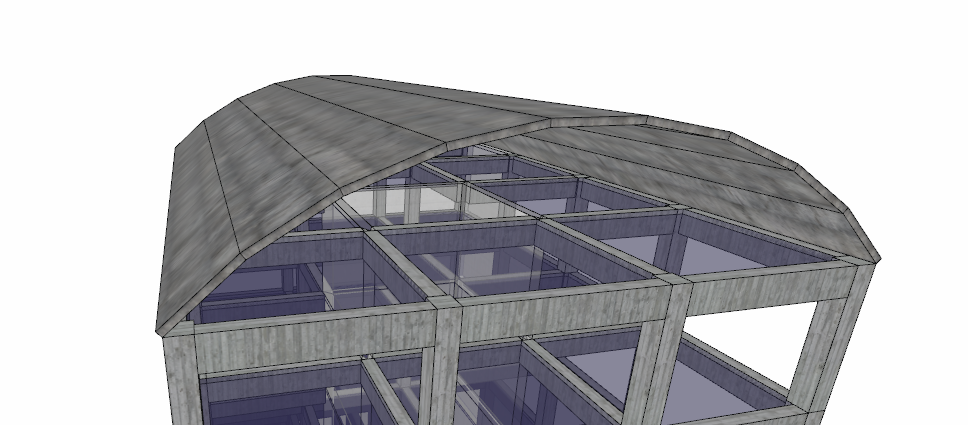

Chord count 10

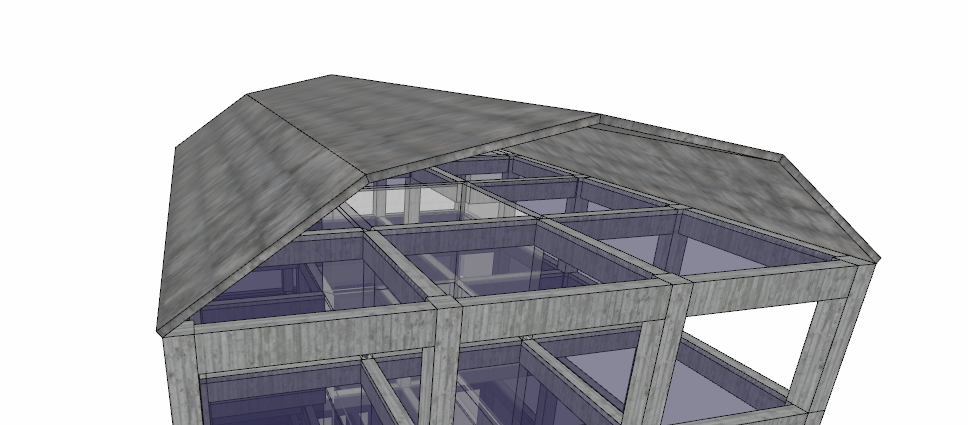

Chord count 5

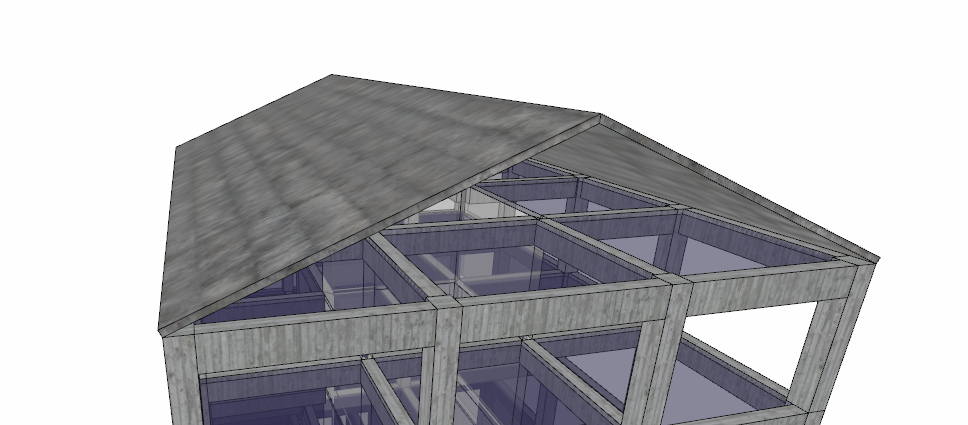

Chord count 3
