General Construction Drawings

The General Construction Drawings command is used to prepare general construction drawings. General construction drawings include application plan drawings, axis and frontal view drawings, 3D isometric view drawings.

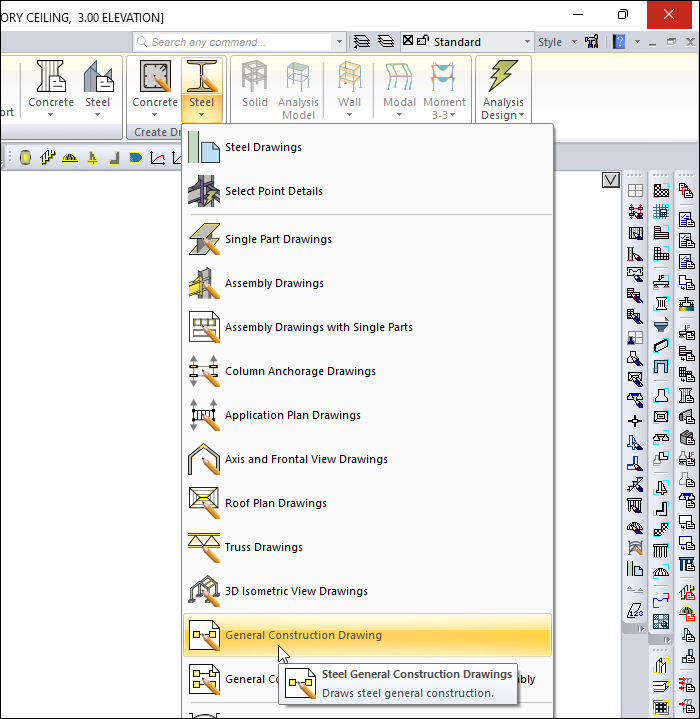

Location of the General Construction Drawings Command

You can access it under the Steel tab, Create Drawings heading.

Usage Steps

  • Click on the General Construction Drawings icon.

  • General construction drawings will be created.

  • Before creating the drawings, you can access the Steel Drawing Settings dialog by clicking the settings button from the steel drawings dialog . From this dialog, layout settings, scales, fonts, etc. You can access parameters related to steel drawings.

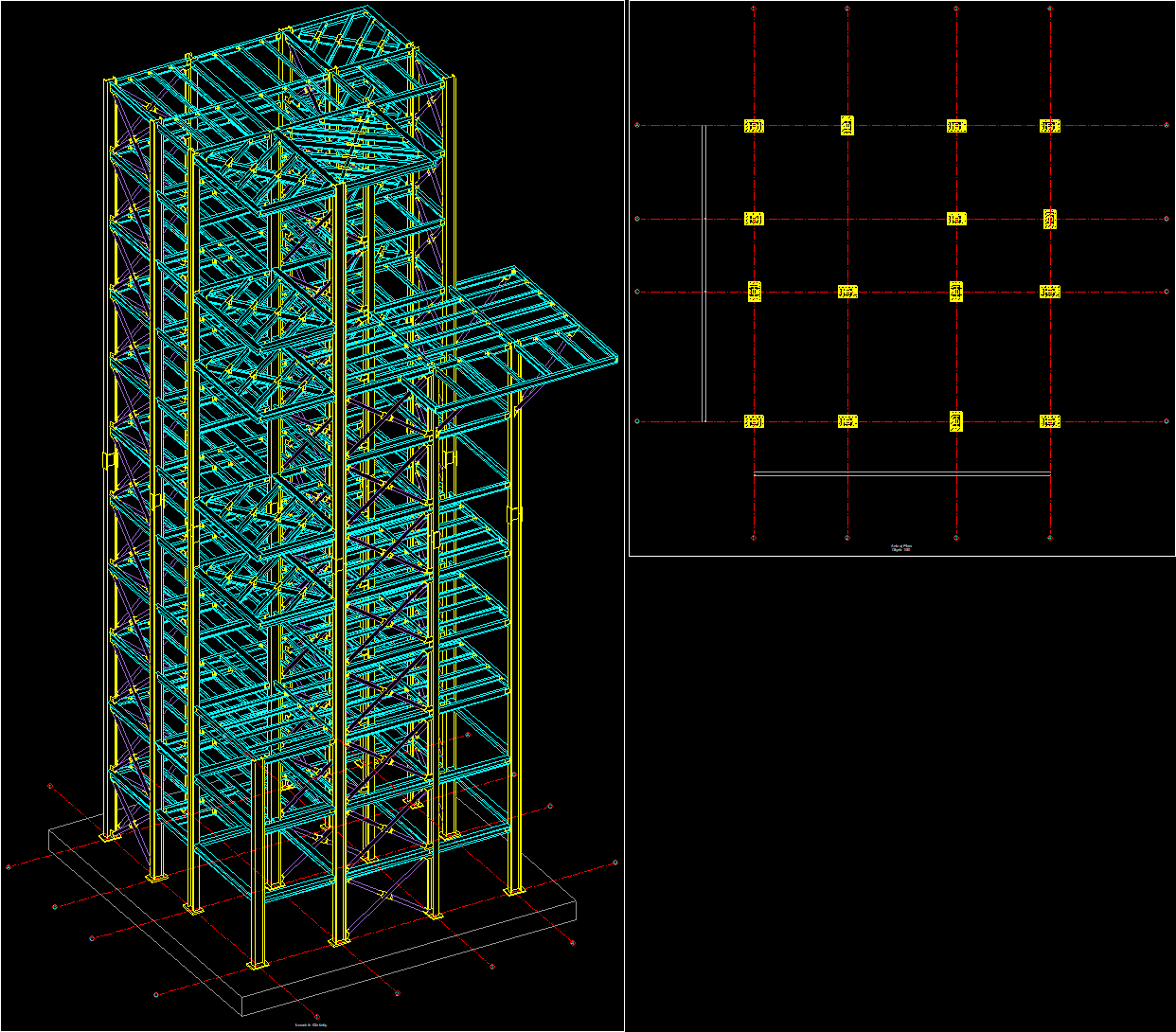

Sample general construction drawing
