Defining a Joining Plates Connection
With the Joining Plates Connection command, beam-secondary beam connection is defined.
Location of the Joining Plates Connection Command

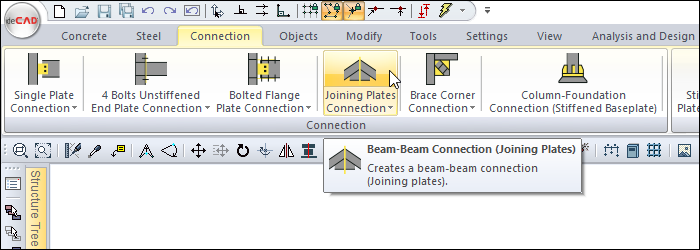

You can access it under the Ribbon menu, Connection tab, Connection title.
Usage Steps
If Draw in Fast Mode is Active
From the Connection menu, click on the Joining Plates Connection icon.
In 3D perspective view, move the mouse pointer closer to the element, close to the support
After this process, the virtual image of the connection will appear.
If the connection is suitable, create the connection by clicking the left mouse button.
The connection will occur with default settings.
If Draw in Fast Mode is Inactive
From the Connection menu, click on the Joining Plates Connection icon.
Click the column then the beam before the 3D perspective view.
The joining plates connection settings dialog will open.
The connection will occur when the wanted settings are made and the OK button is clicked.
Location of the Joining Plates Connection Settings Dialog
If the draw in fast mode is active, the connection settings will be opened automatically.
If the draw in fast mode is inactive, select the connection and click the right mouse button. Click the Properties line from the right click menu that opens.
Joining Plates Connection Settings Dialog

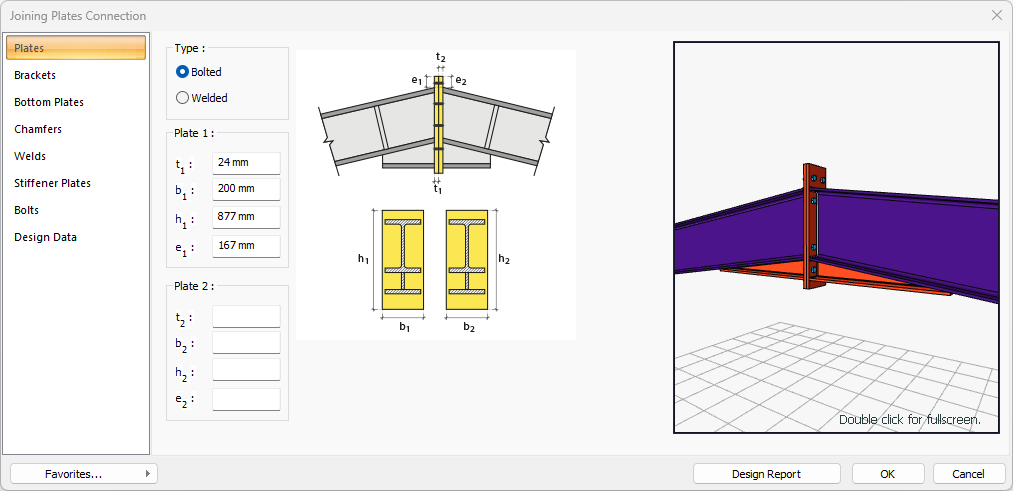

Plates Tab
Specifications |
|---|
Type  For the connection, one of the bolted or welded connection types is selected. |
Plate 1  The first plate is determined by entering the values. The values to be entered are shown in the schematic drawing. |
Plate 2  The second plate is determined by entering the values. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

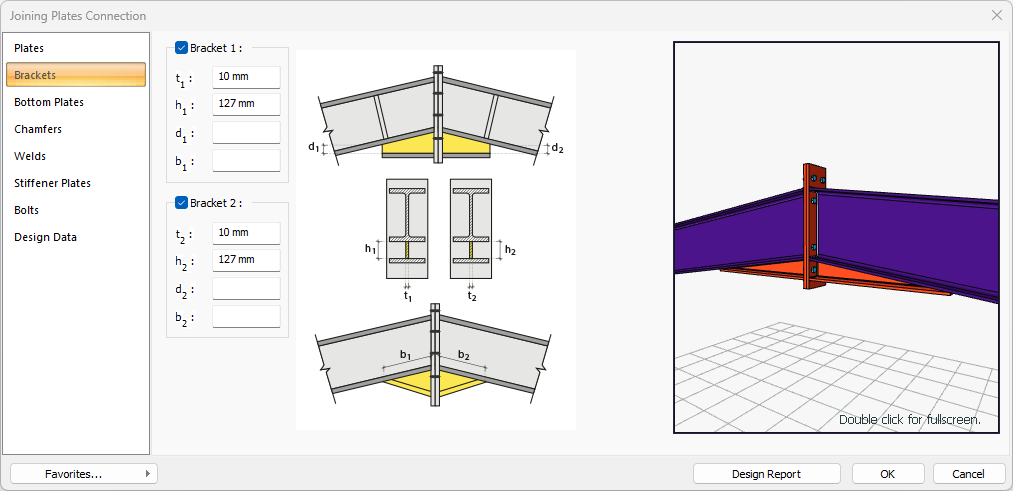

Brackets Tab
Specifications |
|---|
Bracket 1  It is determined by entering the values for the bracket 1. The values to be entered are shown in the schematic drawing. |
Bracket 2  It is determined by entering the values for the bracket 2. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

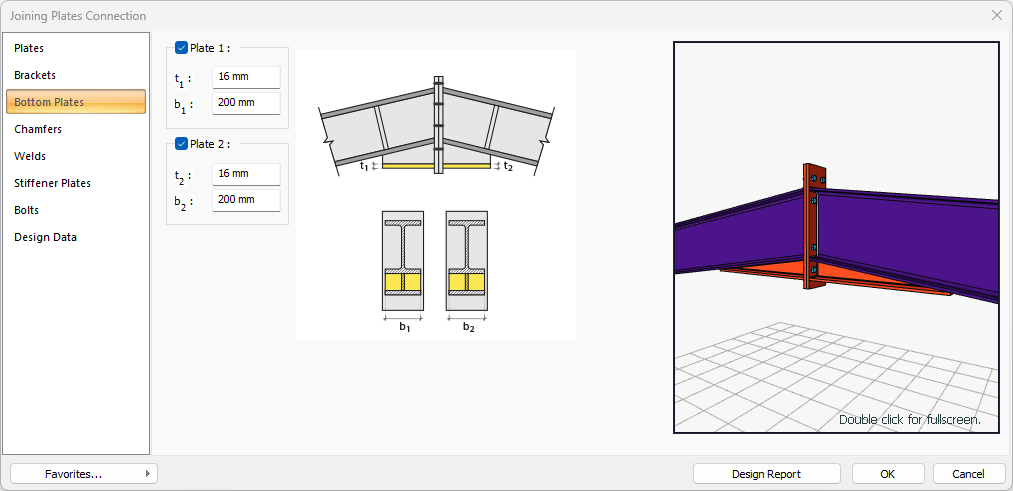

Bottom Plates Tab
Specifications |
|---|
Plate 1  Plate 1 dimensions are determined by entering values. The values to be entered are shown in the schematic drawing. |
Plate 2  Plate 2 dimensions are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Web shim  Shim is a plate placed between the elements to be connected in bolted connections. If shim is to be made, the option is selected and t 4 , thickness value is given. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

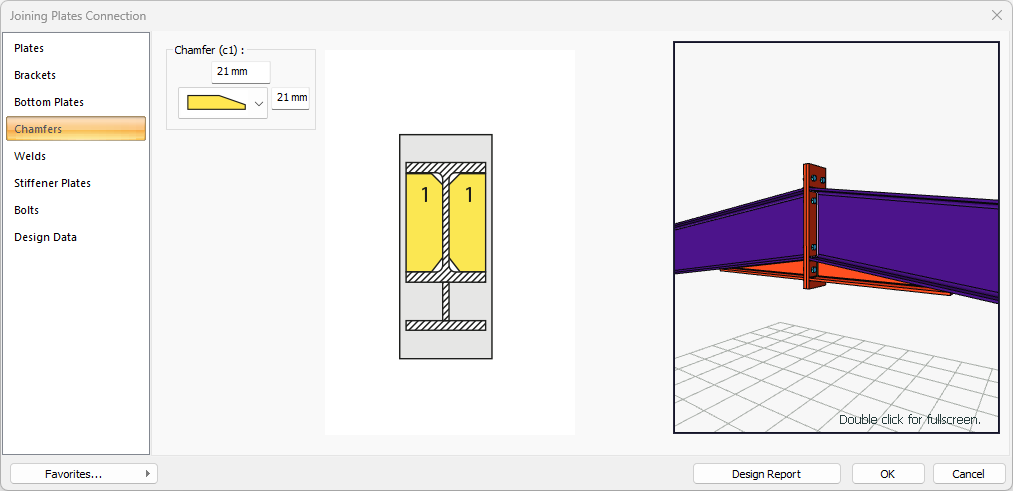

Chamfers Tab
Specifications |
|---|
Chamfer (c1)  For easy assembly of the plates in the field, the use of slope, slope type and geometric properties are determined by entering the value. |
Schematic drawing  Connection, notching and cutting values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

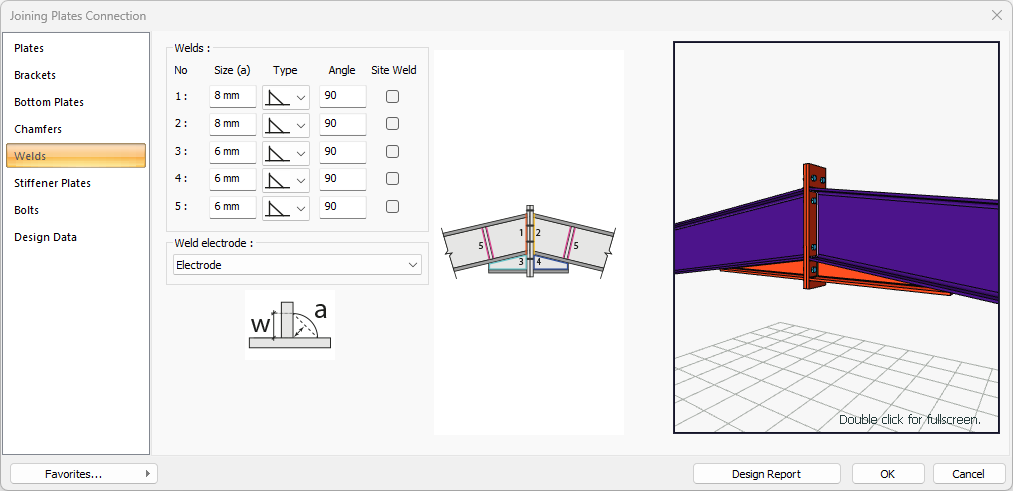

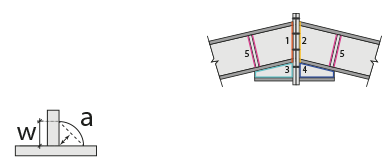

Welds Tab
Specifications |
|---|
Welds  The thickness, type and angle values of the welds to be made at the connections are given. The information on whether it will be done on the construction site or not is entered. |
Weld electrode  The strengths of the welding electrodes are defined in the design inputs. The strength of the main element in the weld joint is controlled under the condition that it has less strength than the weld strength. If necessary, click the list and define "Create New…". To create the welding electrode, give the information "Name" and "Weld metal tensile strength" in the dialog that opens after clicking "Create New". Welding geometry is determined automatically by the program. These properties can be changed to easily determine the connection properties. Geometry features are in accordance with industry standards and in the form specified in AISC.  |
Schematic drawing  Connection and weld values are shown on the schematic drawing. |
Preview  There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

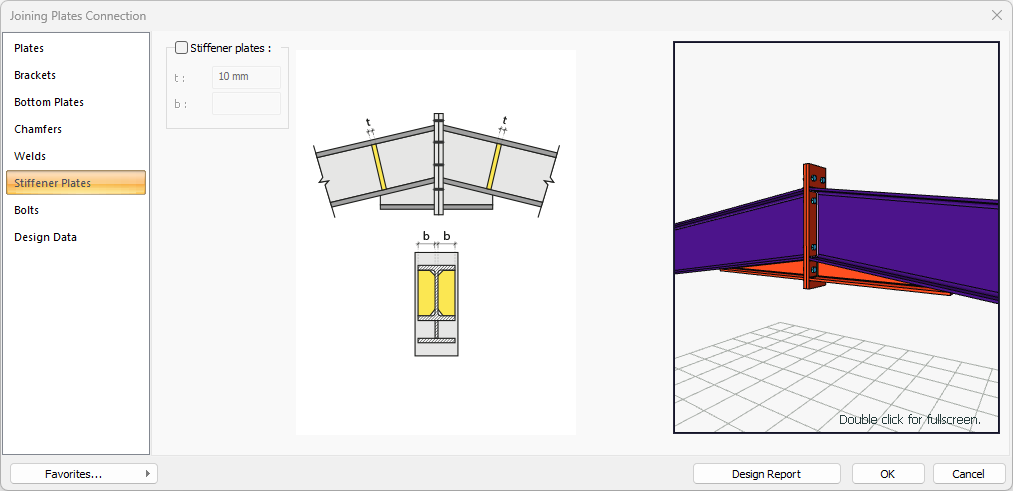

Stiffener Plates Tab
Specifications |
|---|
Stiffener plates  The stiffener plates are determined by entering the values. The values to be entered are shown in the schematic drawing. |
Schematic drawing  Connection and plate values are shown on the schematic drawing. |
Preview There is a preview of the connectipn. The selection made and the entered values can be followed simultaneously in the preview. |

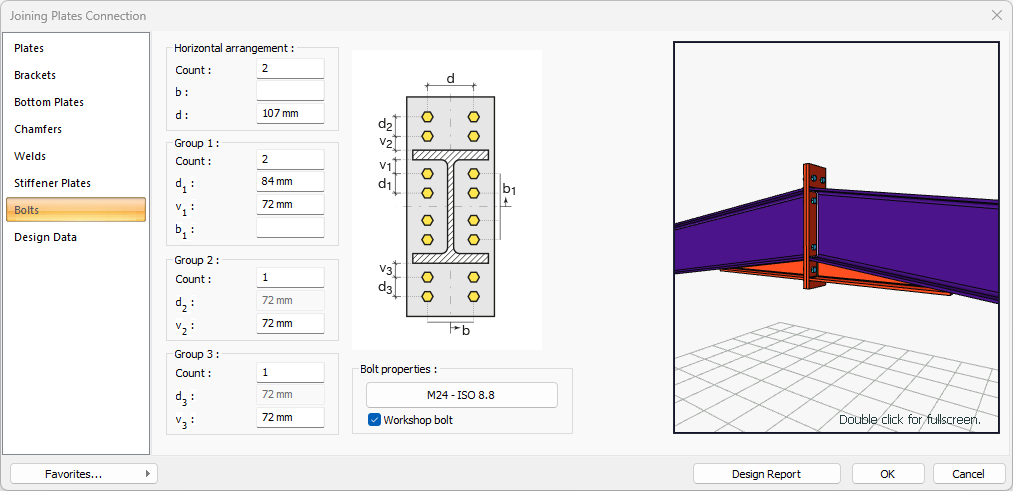

Bolts Tab
Specifications |
|---|
Horizontal arrangement  The horizontal arrangement distance value of bolts is entered. The values to be entered are shown in the schematic drawing. |
Group 1  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Group 2  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Group 3  Distance values of bolts to beam and other bolts are entered. The values to be entered are shown in the schematic drawing. |
Bolt properties  The Hole and Bolt Parameters dialog is opened by clicking on the bolt properties button. The bolt properties are set in this dialog. |
Schematic drawing  Connection and bolt placement values are shown on the schematic drawing. |
Preview There is a preview of the connection. The selection made and the entered values can be followed simultaneously in the preview. |

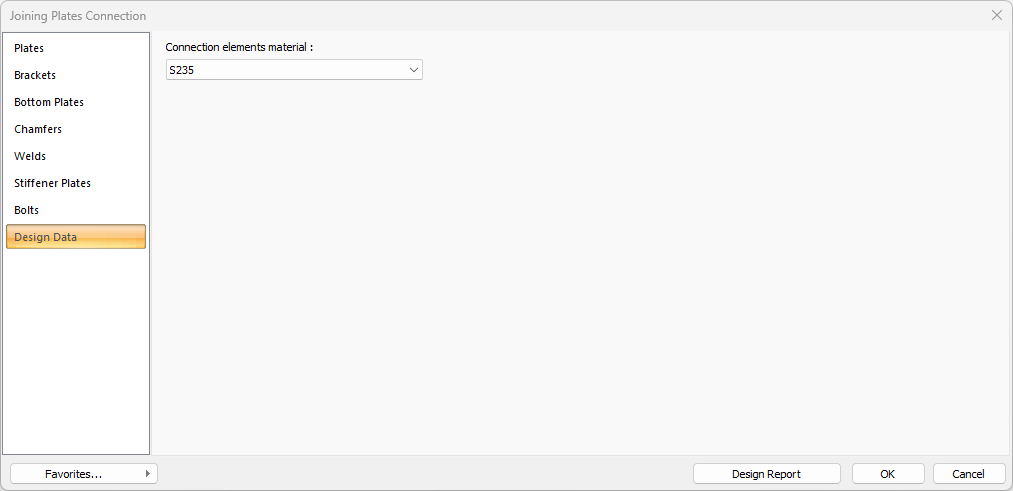

Design Data Tab
In the design data, the connection elements material is defined. The condition that the main element in the weld joint has less strength than the weld strength is controlled.
If necessary, click the list and define "Create New…". To create the connection elements material, give the information material definitions and values in the dialog that opens after clicking "Create New".
