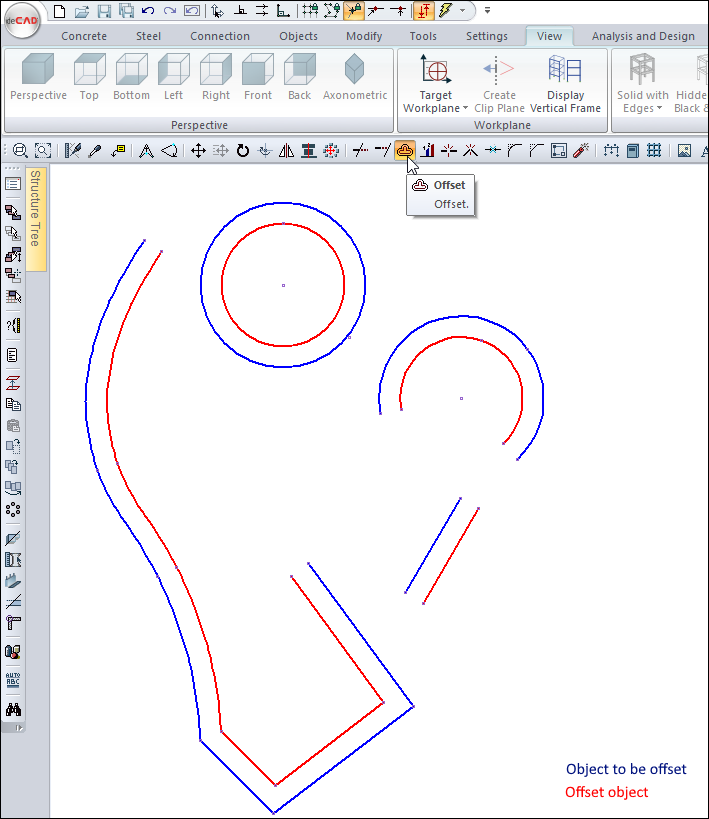

A parallel copy of the 2D drawing elements, such as line, circle, arc, etc, is created at a certain distance as the given value with the "Offset" command.

Usage steps:

  • Click the Offset icon from the toolbar.

  • Enter the offset value in the offset distance box in the toolbar that opens.

  • Select the object.

  • Click in the drawing area to determine the offset direction.

  • Press the right mouse button to finish.
