With the offset command, 2-dimensional objects (line, circle, arc) are copied inner or outer in parallel direction by the specified distance.

Location of the Offset Command

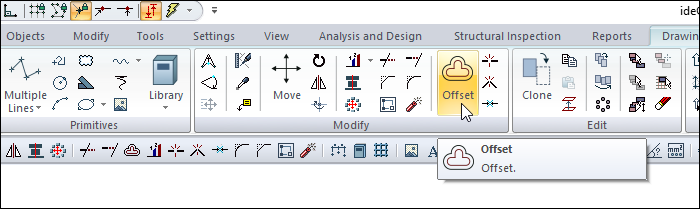

You can access the offset command from the ribbon menu Drawings tab under the Modify heading.

Offset Toolbar

Usage Steps

  • Click the Offset icon in the ribbon menu .

  • Enter the offset distance in the offset distance box on the offset toolbar that opens.

  • Select the object and click the side to be offset.

  • Click the right mouse button or press esc on the keyboard to finish.

Usage steps

Entering offset distance

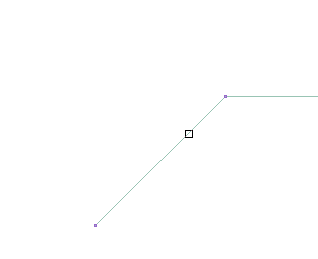

Selecting the 2D object to be offset

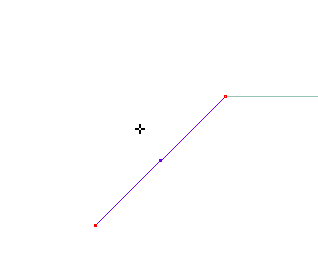

Determining the side to be offset

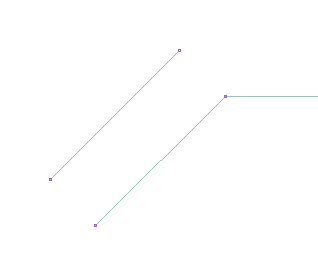

After offset

Next Topic
