Remove Local Offset of Edge
Remove Local of Edge command deletes the tooth created with the define local offset to edge command on the sweep.
Location of Remove Local of Edge Command

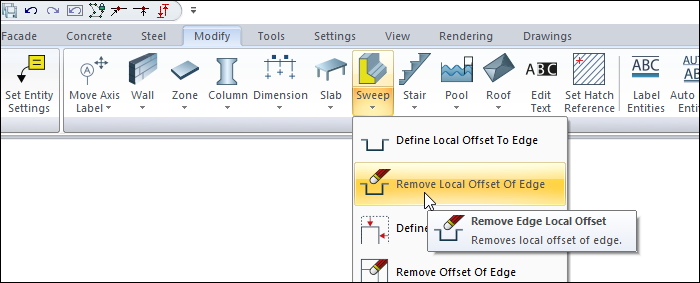

You can access it from the Ribbon menu Modify tab under Entity Edit title.
Usage Steps
Click the Remove Local of Edge icon.
Click on the edge local offset you defined earlier on the sweep.
A preview of the erased state of the tooth created with the define local offset to edge command will be created.
The tooth will be deleted when exiting the command by clicking the Esc key.
Usage step |
|---|

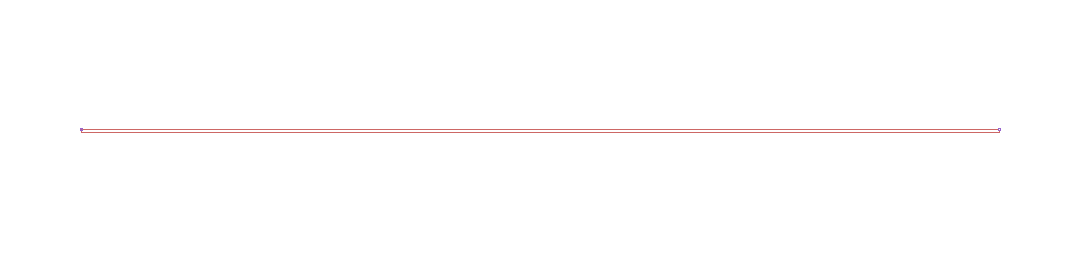

The initial version of the sweep  |

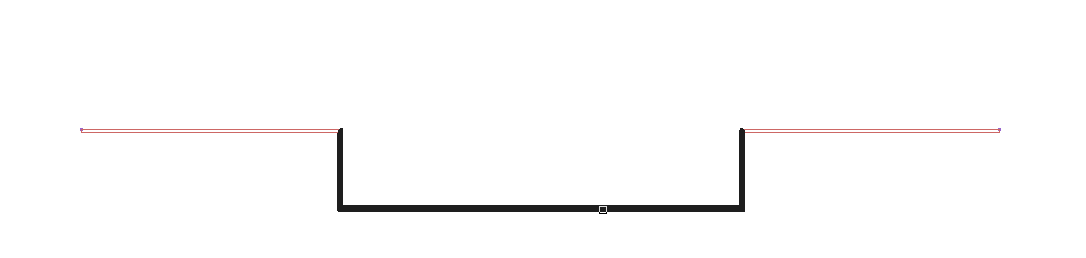

Choosing the tooth  |

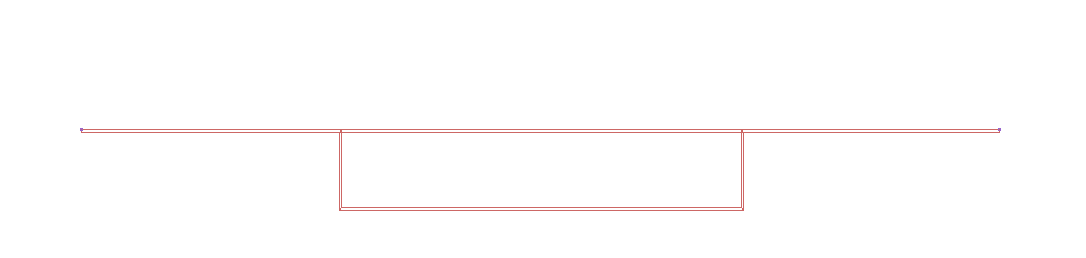

Creating a preview of the deleted version  |

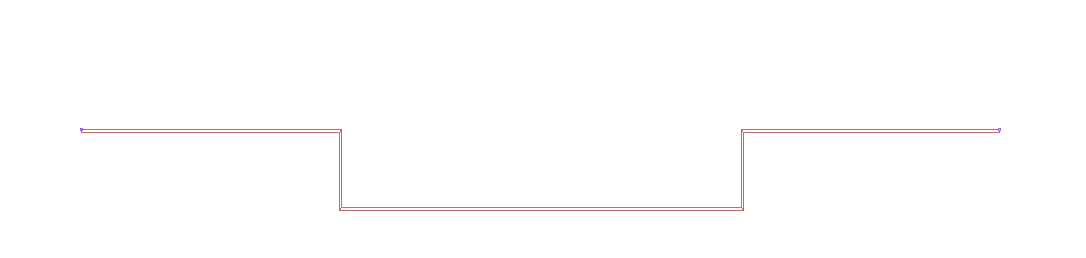

Final version of the sweep  |
