By clicking ”Tools/Geometry Control” or ”Geometry Control”  icon from the left toolbar, error/warning control is performed for any story or for the whole project.

Usage steps :

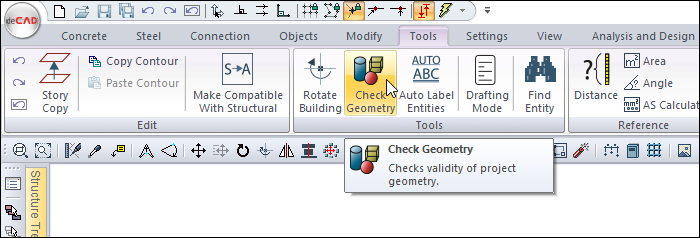

  • Click the Geometry Control icon from the toolbar.

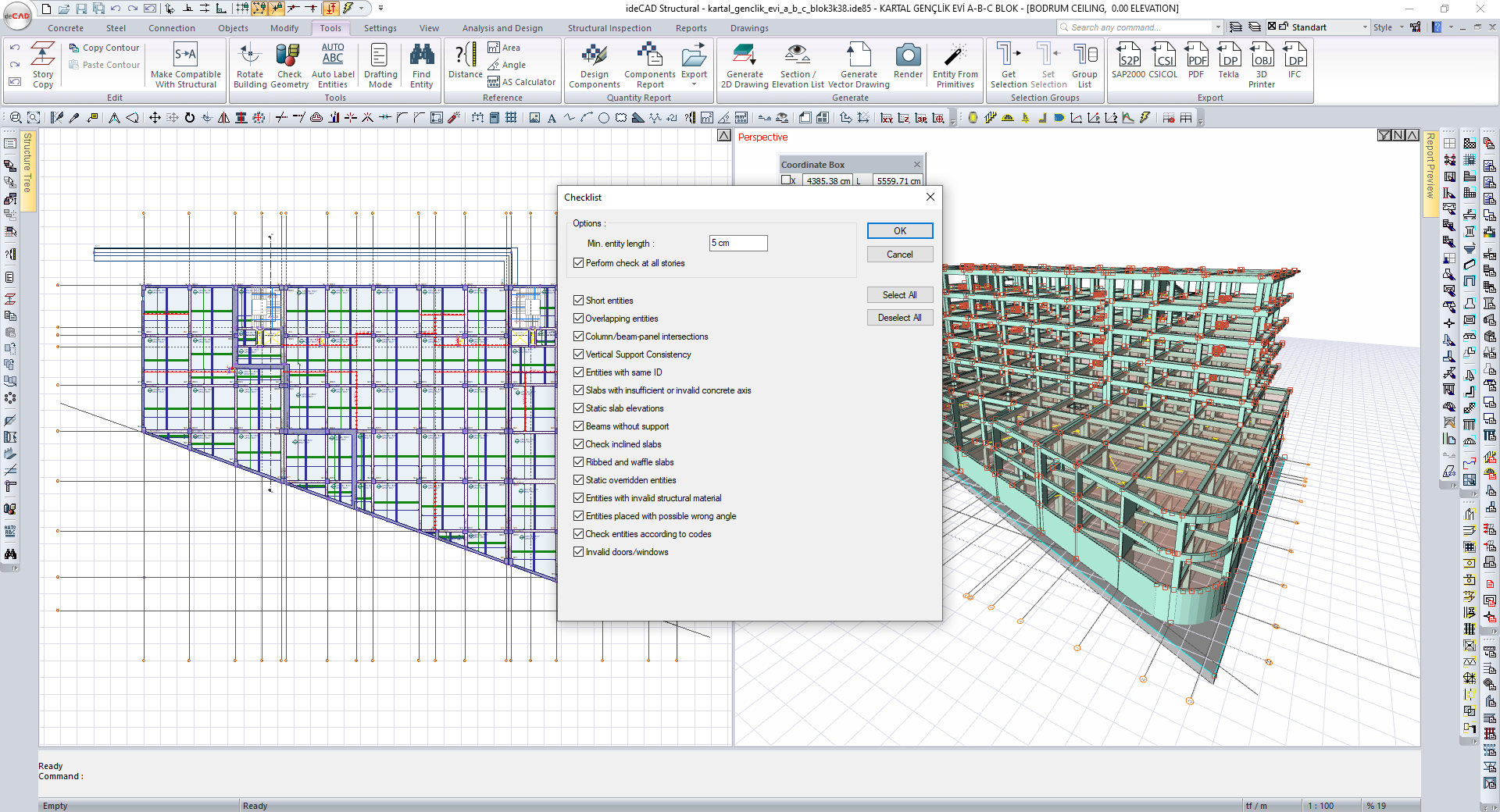

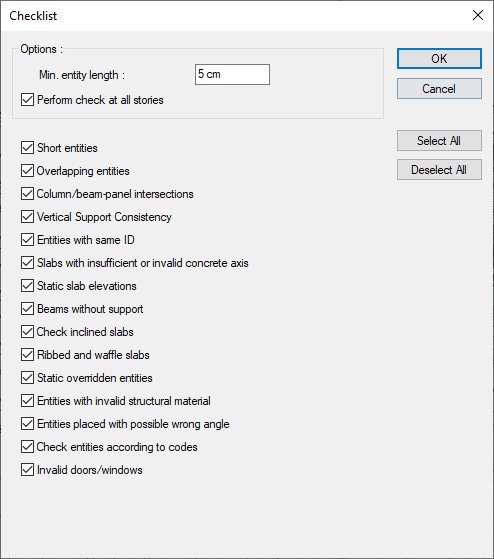

  • In the dialog that appears, select the situations to be checked for geometry.

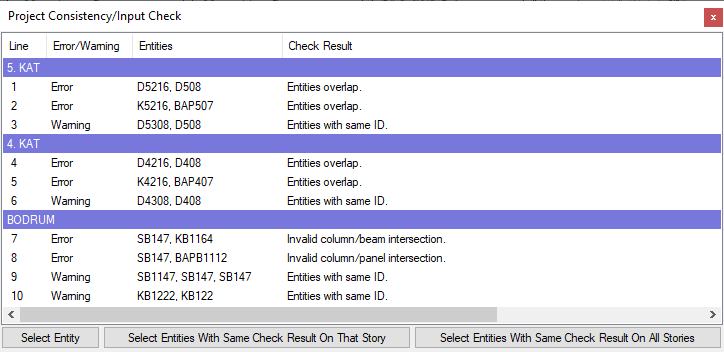

  • Click the OK button. The ideCAD will report whether problem situations are found or not, and list the problematic objects, if any.
