Creating Case / Wing from Polygon

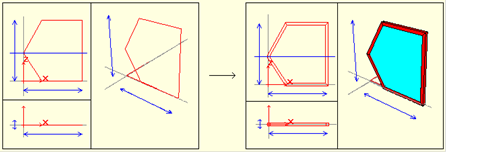

Case shapes, which cannot be made with rectangular and circular safes, are converted into safes by drawing 2-dimensional polygons and using the Polygon-> Case transformation command. Polygons converted into crates will have full crate properties.

To create a safe from the polygon;

• Click the Change / Transformation / Polygon-> Body-Wing Transform line.

• Click on the polygon. It will turn into a Polygon Vault.
