Curve Settings

The line color, type, and display line thickness of curve commands such as bezier, closed bezier, NURBS and closed NURBS are set.

Location of the Settings Dialog

From Command Settings

After running one of the curve command, you can access it by clicking the Settings icon in the Primitive utility toolbar.


From Object Settings

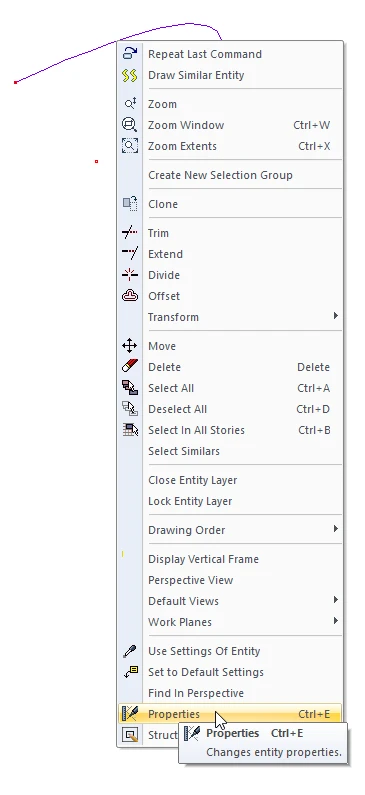

Select the curve you want to enter its settings, click the right button of the mouse and click the Properties line from the menu that opens.

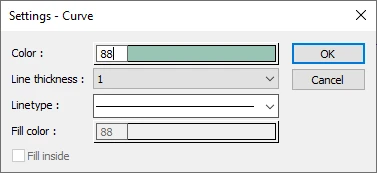

Curve Settings


Specifications

Color


Sets the color of the curve. When the color box is clicked, the appropriate color is selected from the window that opens.

Line thickness


Line thickness is selected. The appropriate thickness is selected from the drop-down list when the down arrow button next to the box is clicked. The thickness selected here is only valid on the screen. It does not affect drawing printouts.

Linetype


Line type is selected. When the down arrow button next to the box is clicked, the appropriate line type is selected from the drop-down list.
