Build the base story windows in this section.
|
Previous steps have been followed in the project file named Place the Windows. You can download the file and follow the steps given in this title on the project. |
-
Click on the door/window command.
-
Click the settings icon from the door/window toolbar.
-

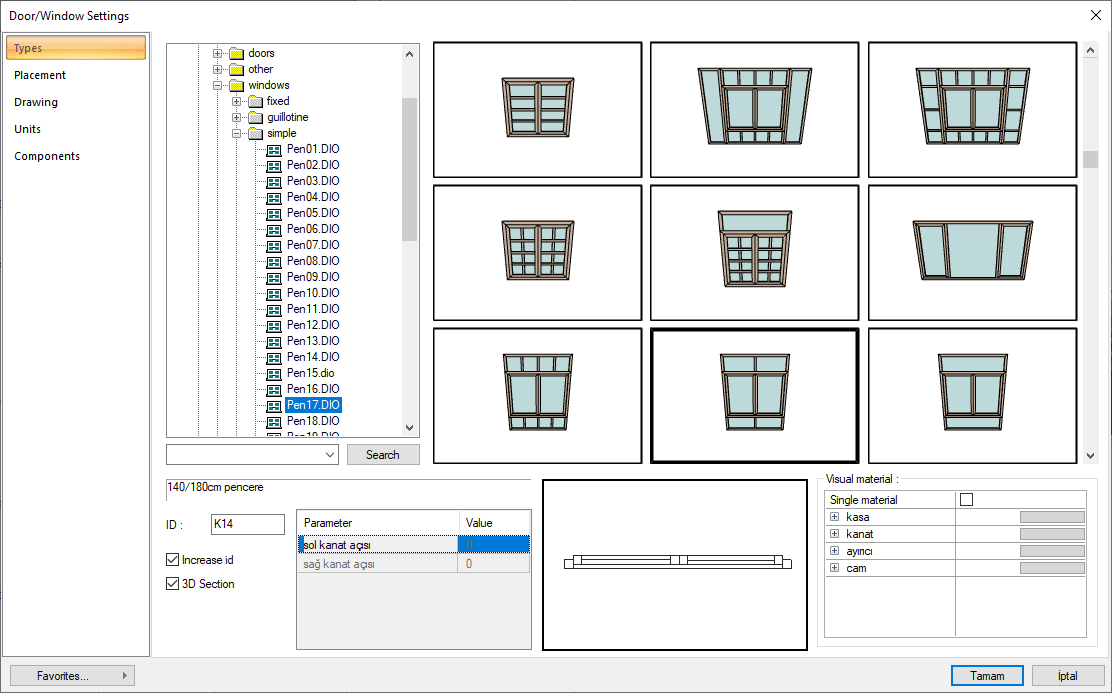

In the types tab select the line 1.50/windows/simple/Pen17.DIO from the list.
-

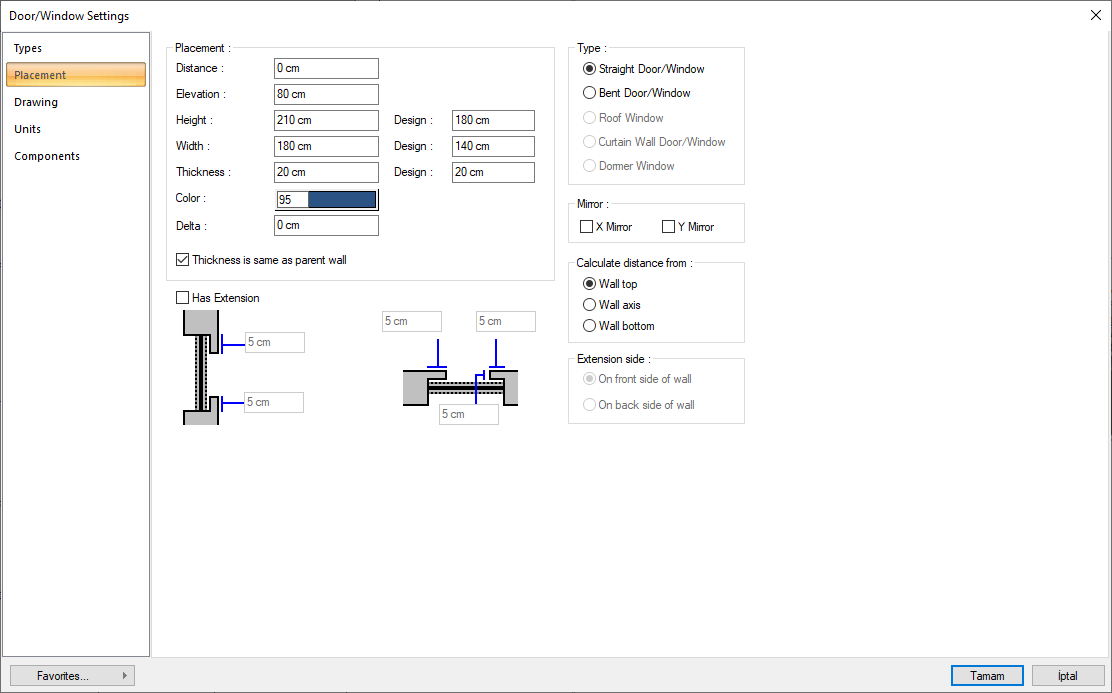

On the placement tab, change the elevation value to 7 cm, height value to 210 cm, and width to 180 cm. Click the OK button to close the dialog.
-
Check the Use distance option in the door/window toolbar and enter 0 in the value box.
-

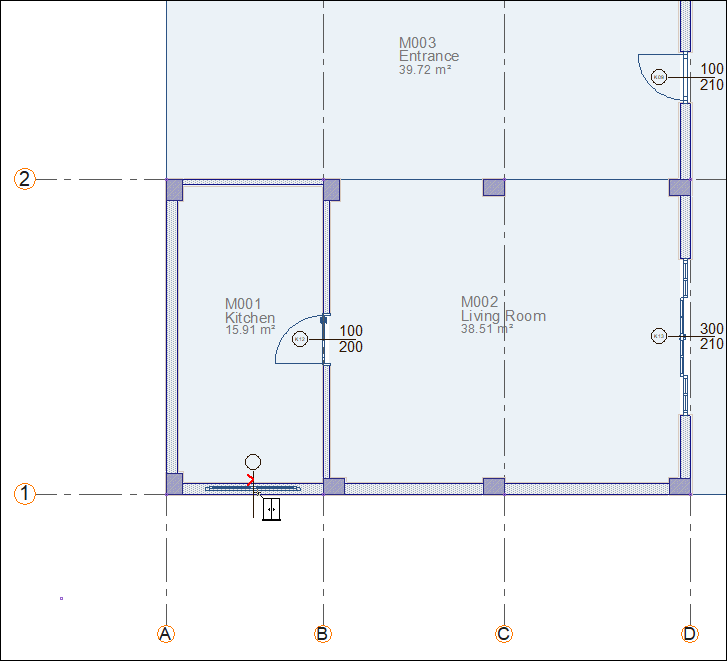

Move your mouse to the middle of the wall bounded by axes A and B on the axis 1.
-
A red arrow will pop up and the window will be placed in the center of the wall.
-

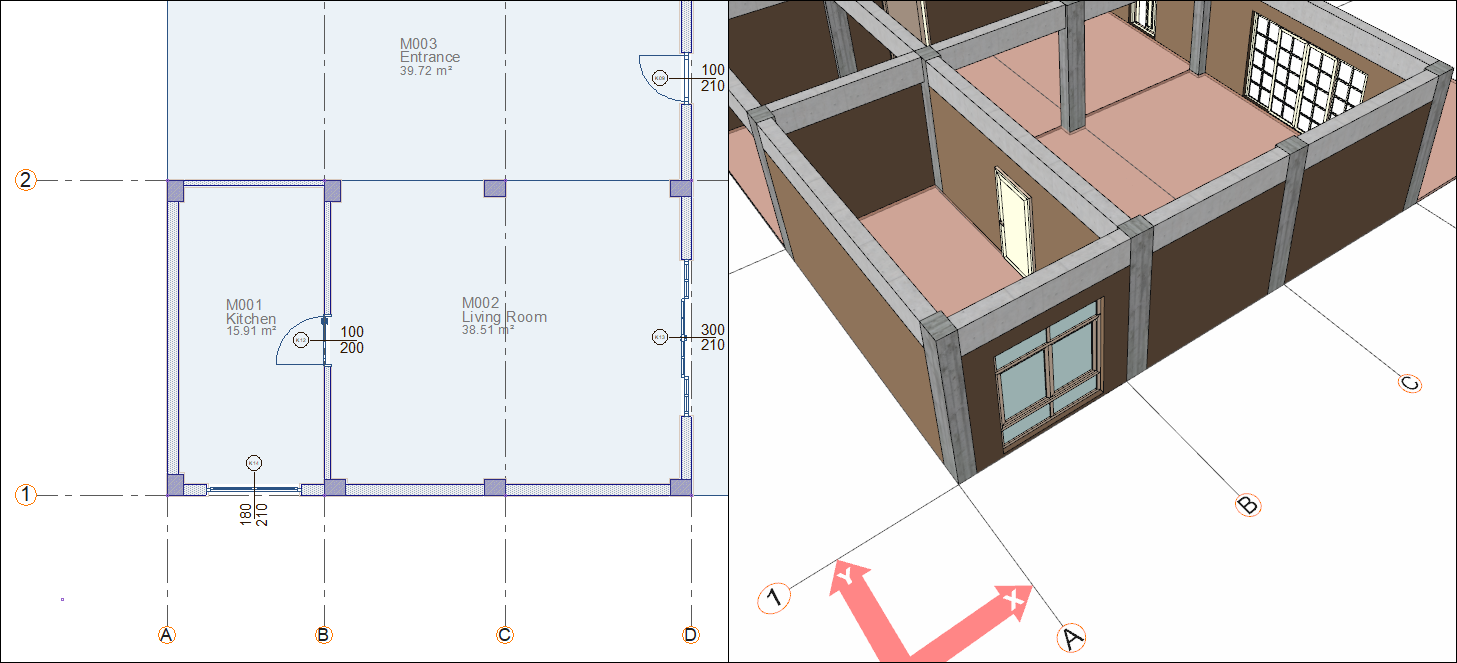

Click the left mouse button. The window will be created.
-

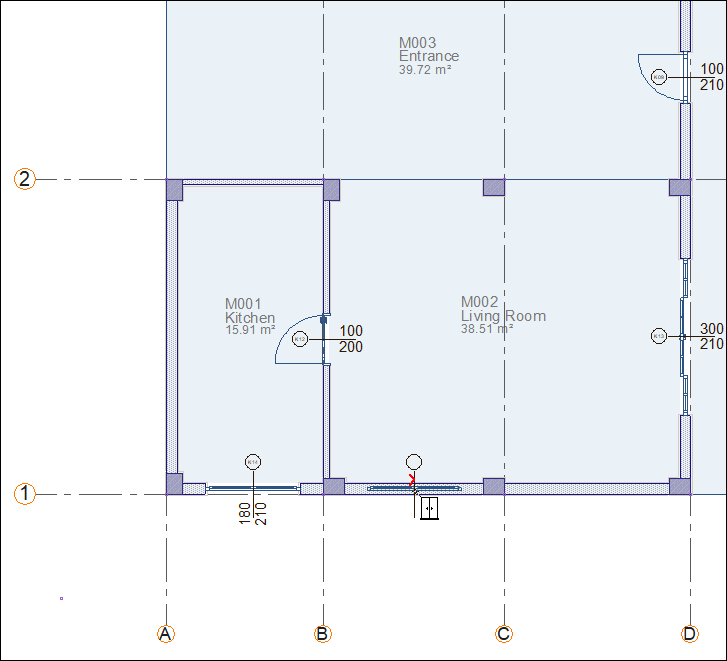

Move your mouse to the middle of the wall bounded by the B and C axes on the axis 1.
-
A red arrow will pop up and the window will be placed in the center of the wall.
-

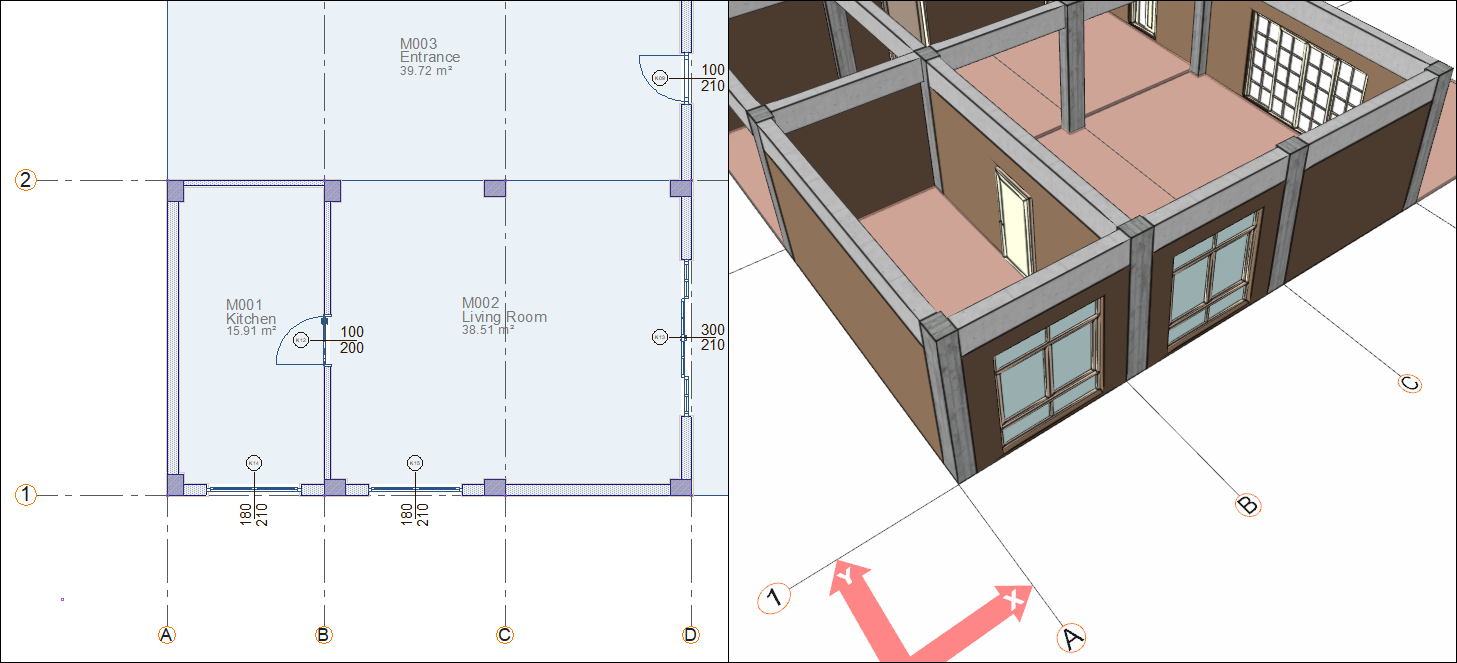

Click the left mouse button. The window will be created.
-
Click the settings icon from the door/window toolbar.
-

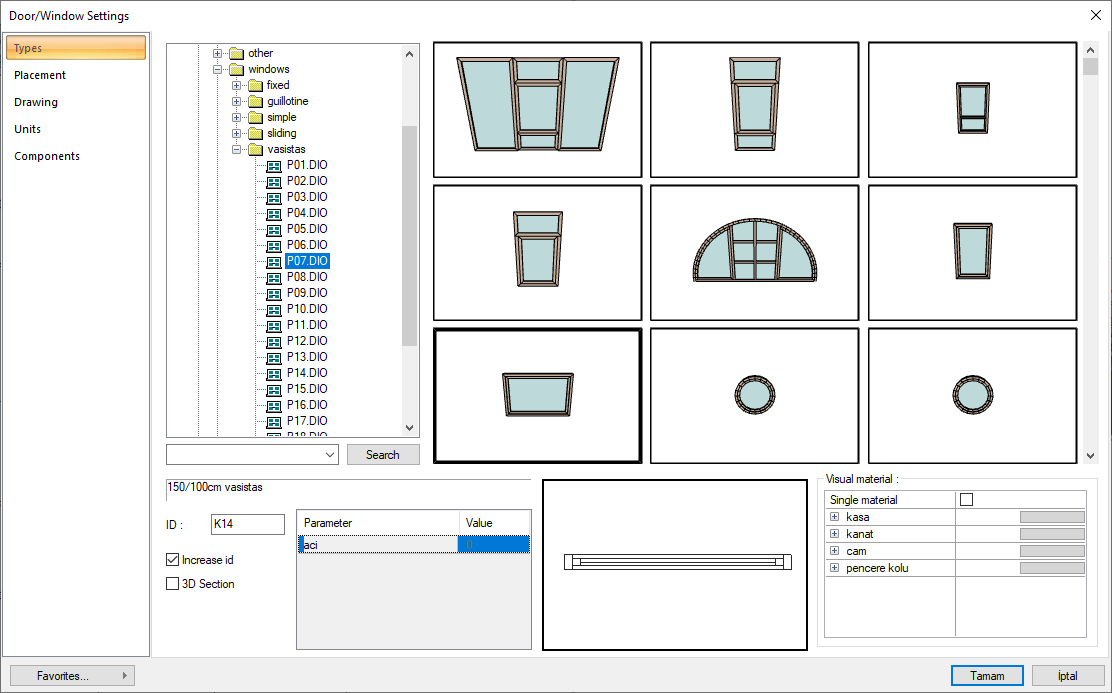

In the types tab select the line 1.50/windows/vasistas/P07.DIO from the list.
-
On the placement tab, set the elevation value to 170 cm, the height value to 80 cm, and the width to 200 cm. Click the OK button to close the dialog.
-

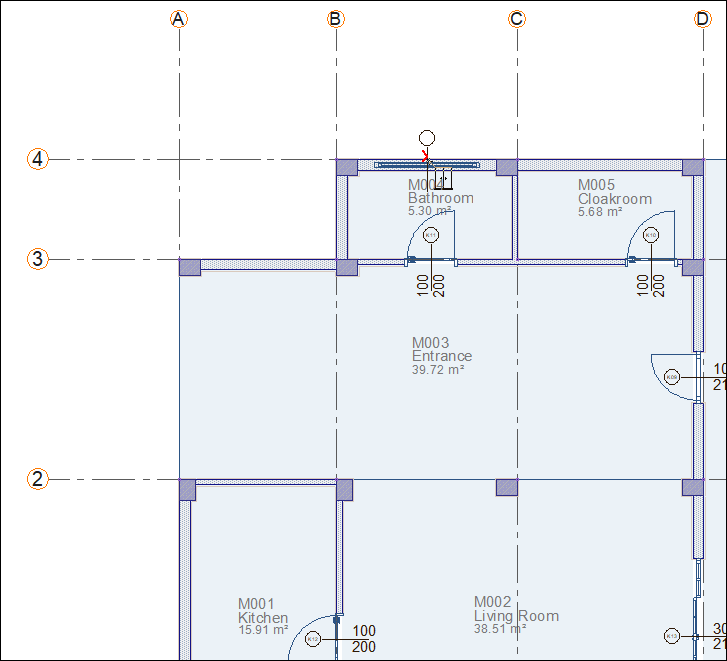

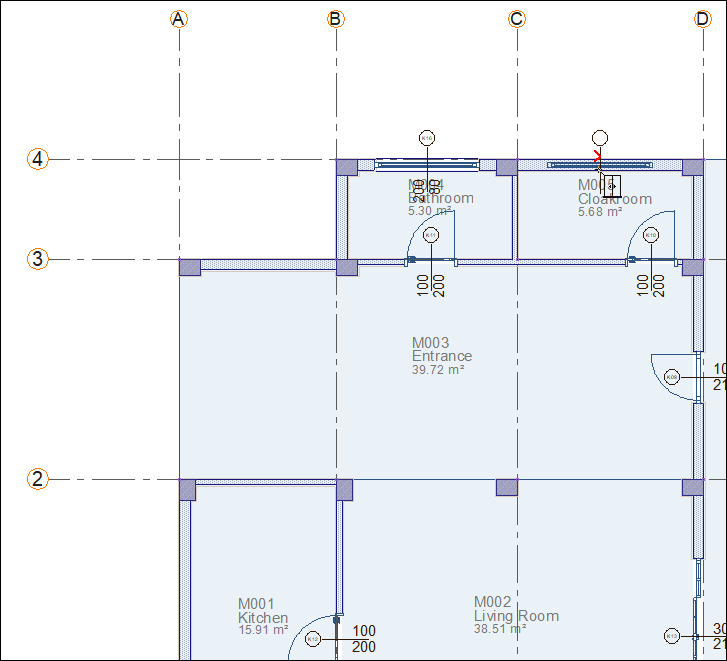

Move your mouse to the middle of the wall bounded by axes B and C on the axis 4.
-
A red arrow will pop up and the window will be placed in the center of the wall.
-
Click the left mouse button. The window will be created.
-
Move your mouse to the middle of the wall bounded by axes C and D on the axis 4.
-
A red arrow will pop up and the window will be placed in the center of the wall.
-
Click the left mouse button. The window will be created.
-

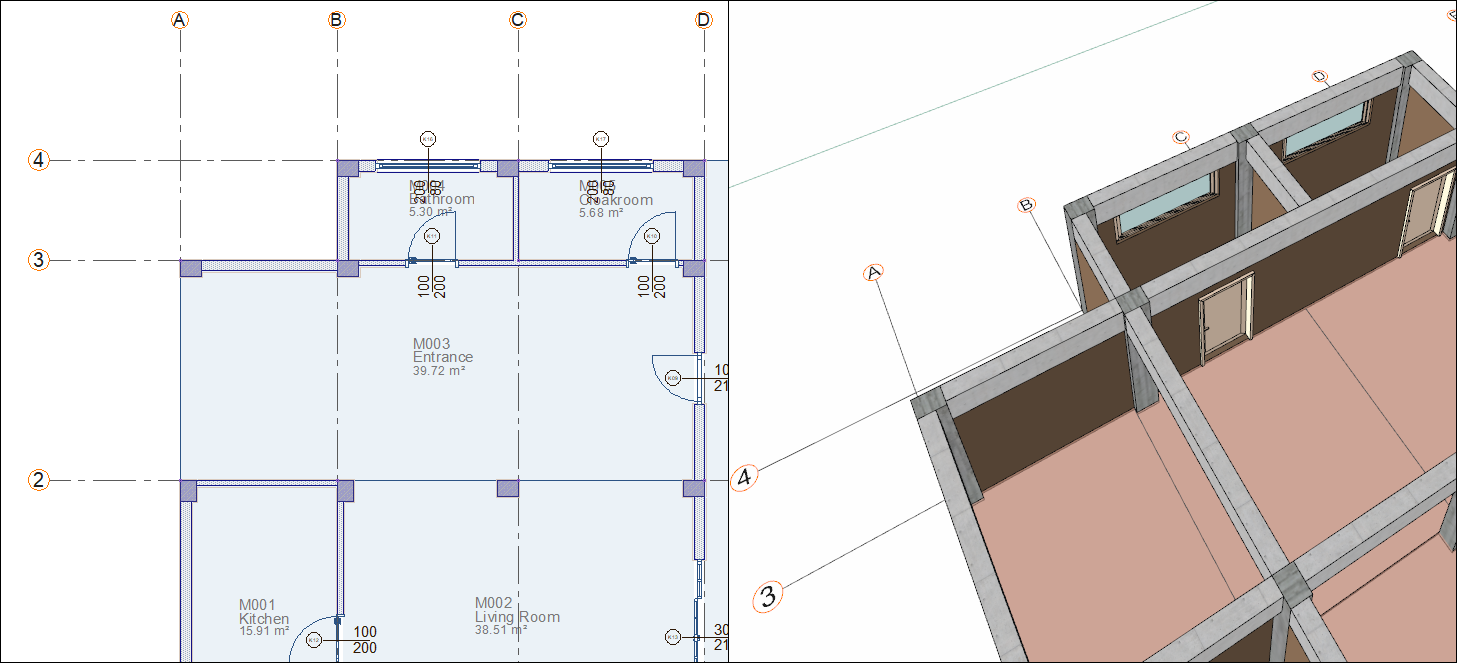

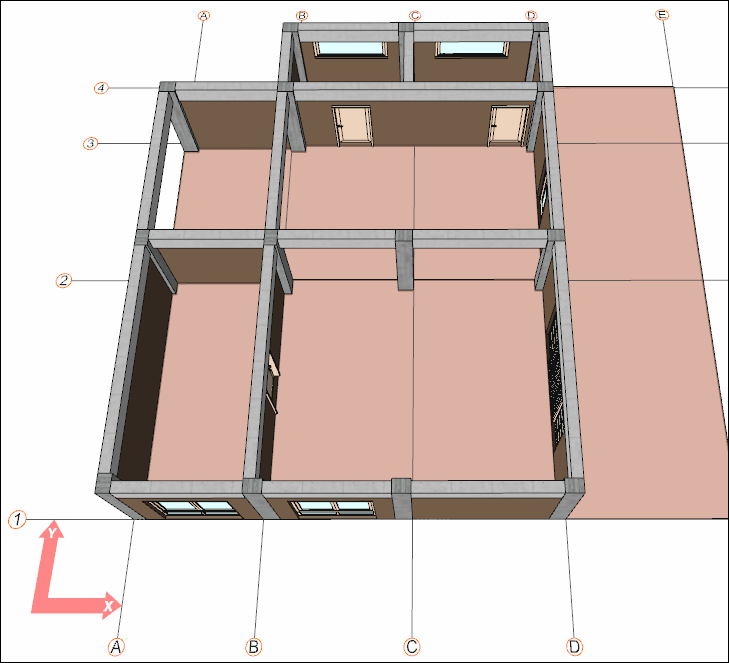

Press the Esc key on the keyboard to exit the command. Base story windows are completed.
Follow the steps of the video below.
