Get the 2D / 3D Drawings

You can import the DWG/DXF format drawings you received from the architect and use them as a base in the ideCAD Structural program.

  • Click the ideCAD logo in the upper left corner of the program.

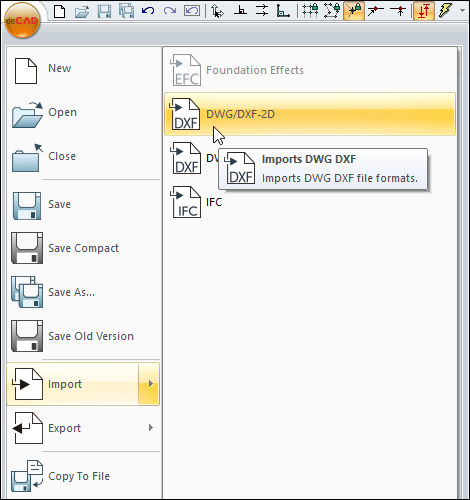

  • Click on the Import/DWG/DXF-2D line from the menu that opens.

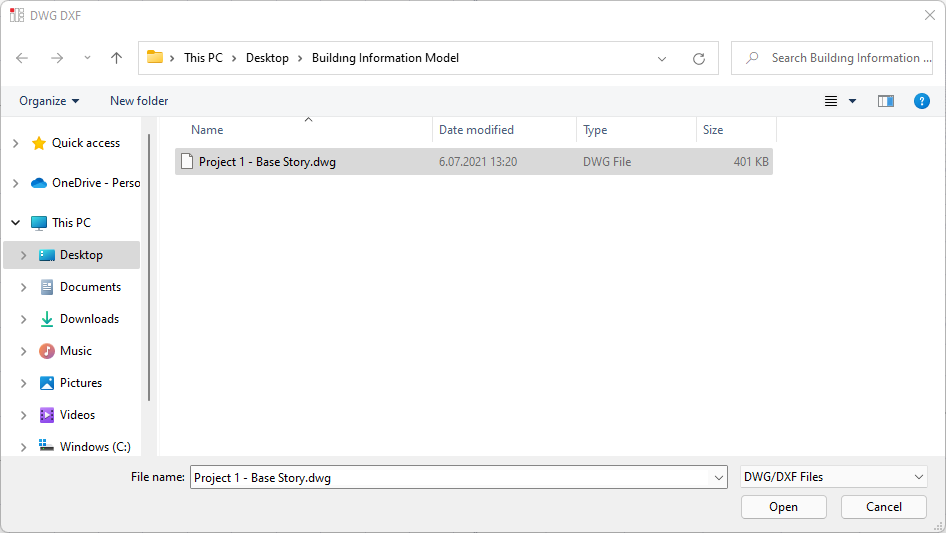

  • Select the DWG format file you received from the architect and click the Open button.

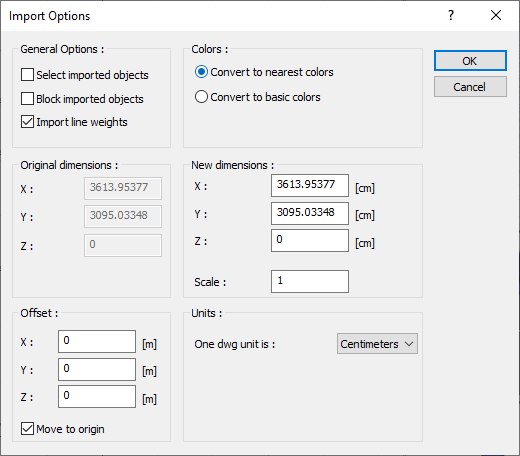

  • The Import Options dialog will open.

  • In the dialog, set the necessary parameters and click the OK button.

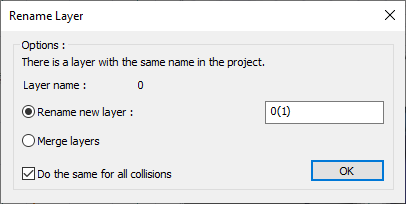

  • The rename layer dialog will open and you will be asked what to do for layers with the same name.

  • Select rename new layer option and click OK button.

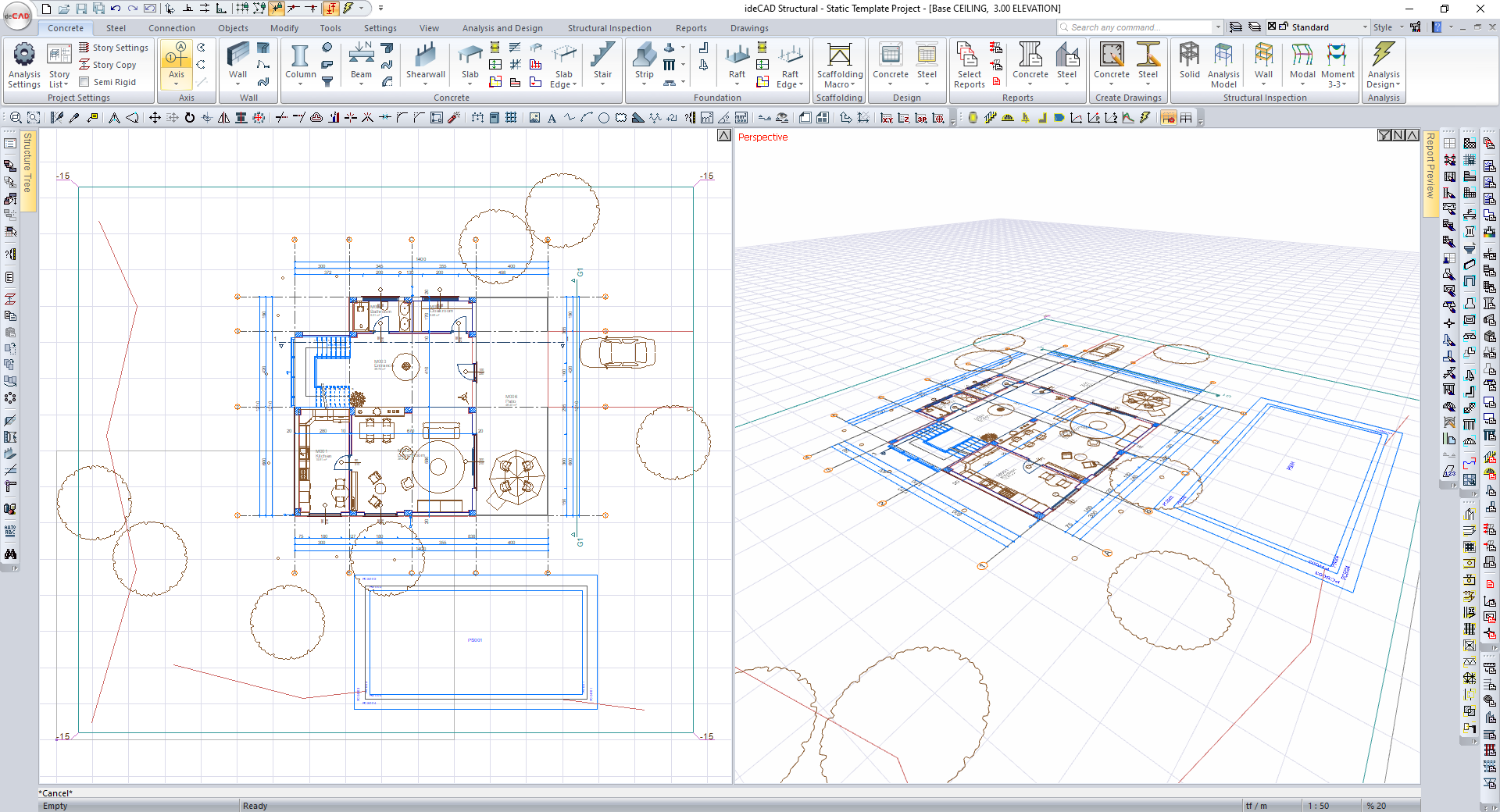

  • Architectural project drawings will be uploaded.

Follow the steps of the video below.
