Well Foundation Analysis

By using the Well Foundation Analysis command, the analysis of well foundations with defined soil and filling properties is performed.

Location of Well Foundation Analysis Command

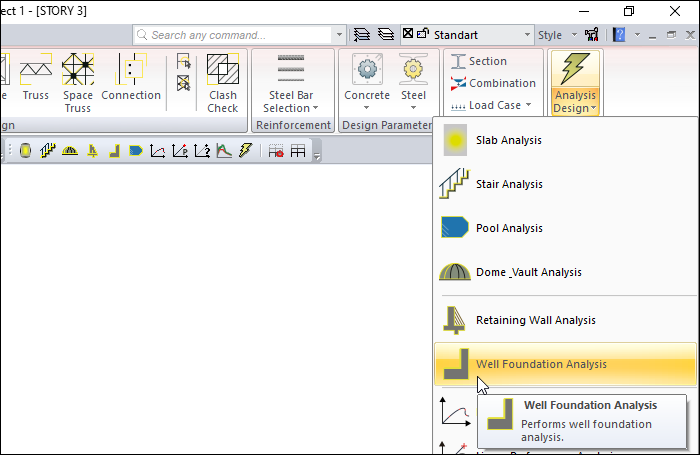

You can access the Well Basic Analysis command under the Analysis heading of the Ribbon menu Analysis and Design tab .

Usage Steps

  • Switch to the story where you want to analyze the well foundation.

  • Click on the Well Foundation Analysis icon under the Analysis Design icon.

  • After the Well Foundation Analysis is completed, "Analysis complete. Do you want to see the steel results dialog?" A confirmation screen will appear with a message.

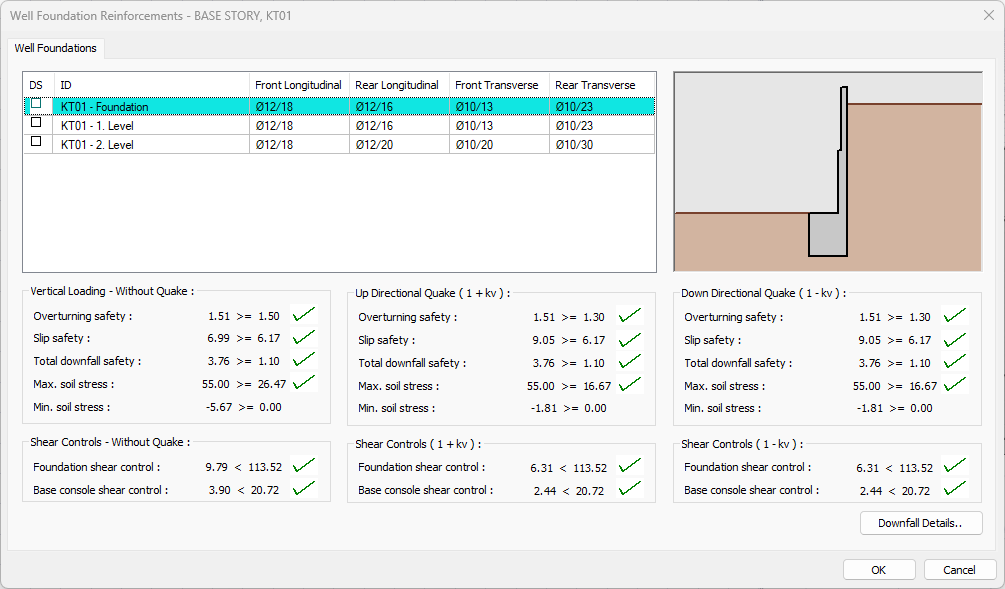

  • Well Foundation Analysis results will be displayed when you click the Yes button.

  • When the No button is clicked, the analysis will be completed, but the Well Basic Analysis results screen will not appear.

The result screen can also be displayed by clicking the Well Foundation icon under the Analysis + Design menu.
