Structure Mass for Rigid Diaphragm Modelling
When calculating the Structure Mass; structural geometry, element section sizes and external loads present in the structure are taken into consideration.
In the example below, the Structure Mass Calculation will be made in a project where a rigid diaphragm is accepted.
Structure weight calculation-rigid diaphragm.cde
Self weight of column beams and curtains
![](../__attachments/1082753296/yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20zati%20yukler-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Constant (G) Loads transferred from slab to beams and bulkheads
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20elemanlara%20etkiyen%20d%C3%B6%C5%9Feme%20y%C3%BCkleri%20G-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
Moving (Q) Loads Transmitted to Beams from Slab
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20elemanlara%20etkiyen%20d%C3%B6%C5%9Feme%20y%C3%BCkleri%20Q-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

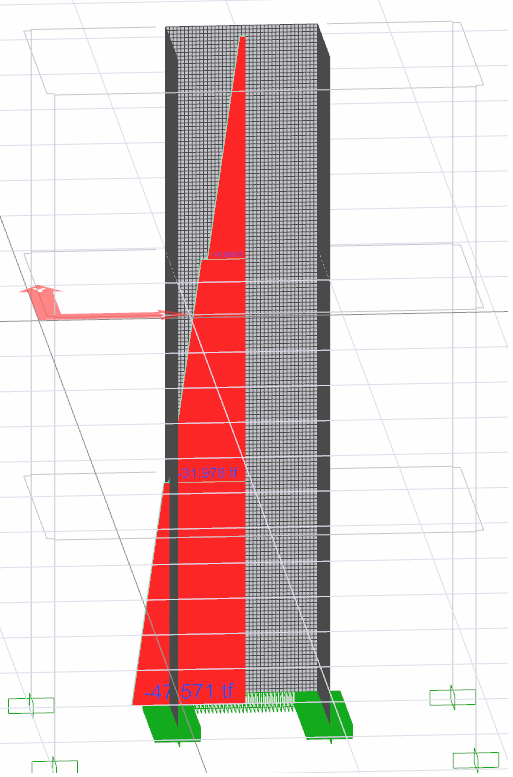

Lift curtain G loading Axial forces
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20asansor%20perdesi%20%20G%20normal%20kuvveti-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

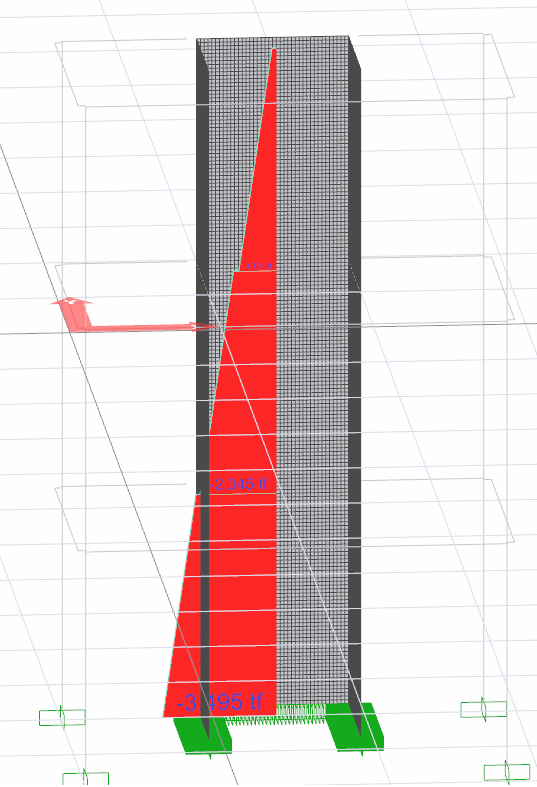

Lift curtain Q Loading Axial Forces
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20asansor%20perdesi%20%20Q%20normal%20kuvveti-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

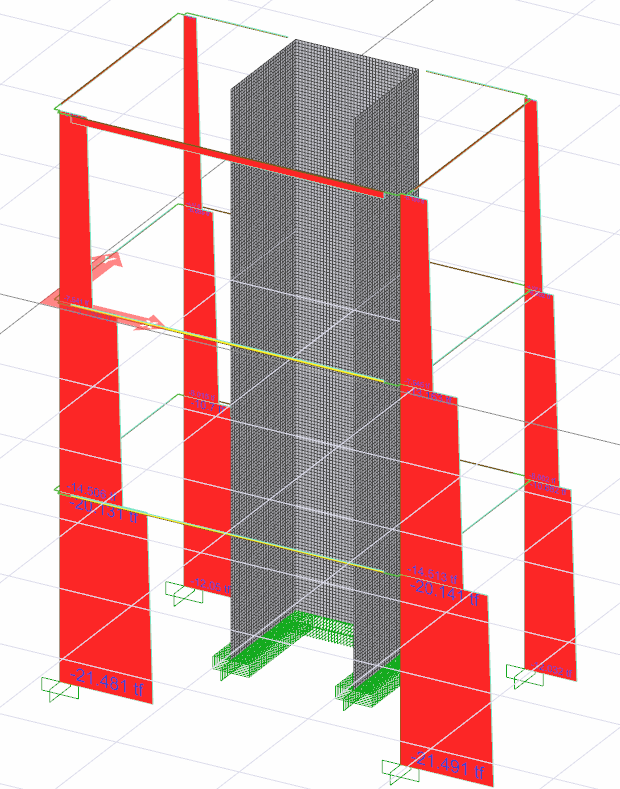

Axial forces of columns loading G
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20kolon%20G%20normal%20kuvvetleri-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

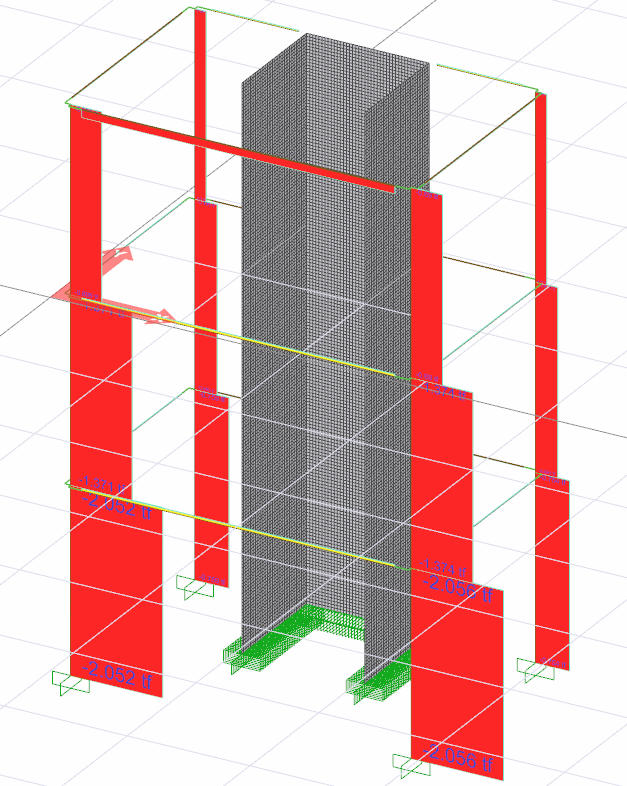

Axial forces of columns loading Q
![](../__attachments/1082753296/Yap%C4%B1%20a%C4%9F%C4%B1rl%C4%B1%C4%9F%C4%B1%20kolon%20Q%20normal%20kuvvetleri-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

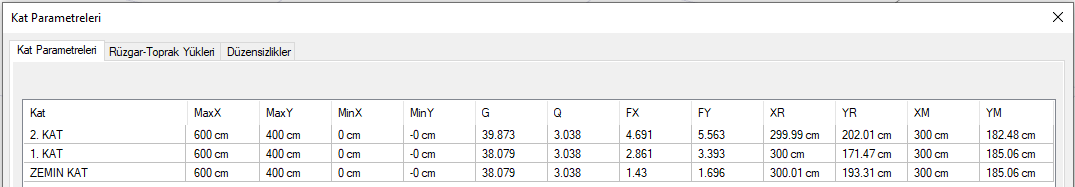

Floor G and Q loads shown in floor parameters
![](../__attachments/1082753296/Kat%20A%C4%9F%C4%B1rl%C4%B1klar%C4%B1%20G%20ve%20Q-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

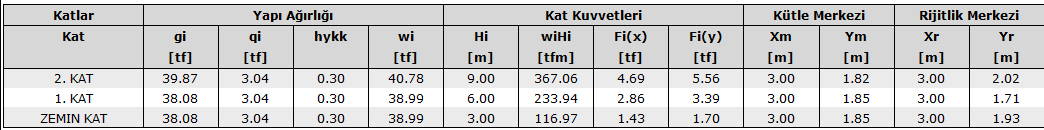

Floor weights printed on the Floor General Information report
![](../__attachments/1082753296/Raporda%20Kat%20A%C4%9F%C4%B1rl%C4%B1klar%C4%B1%20G%20ve%20Q-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

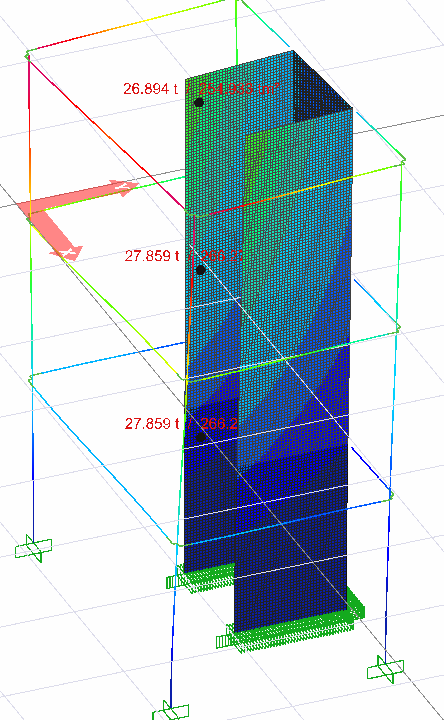

Storey masses used in dynamic analysis
![](../__attachments/1082753296/Yap%C4%B1%203B%20Kat%20kutleleri-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

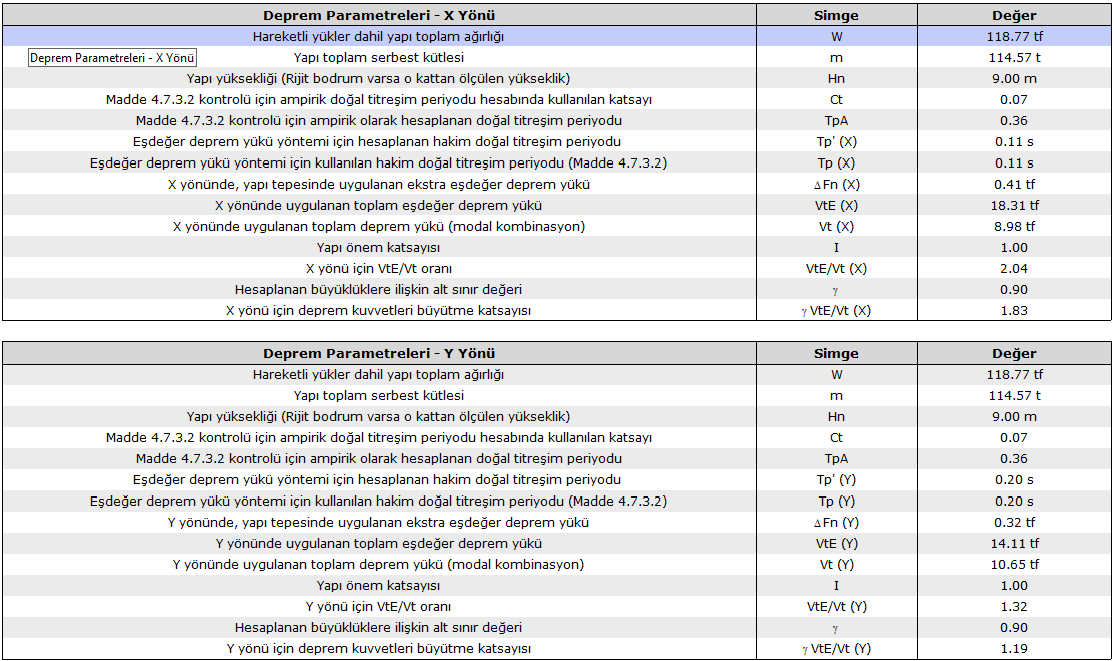

Building weight and free mass of the building printed in earthquake parameters in reports
![](../__attachments/1082753296/Dinamik%20Analiz%20Yap%C4%B1%20Kat%20kutleleri-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)

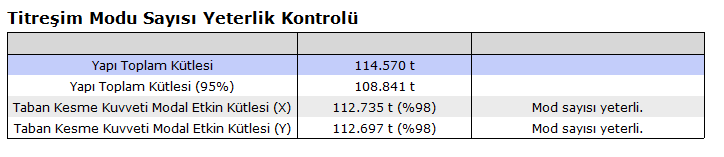

Build total mass printed in the Vibration Mode qualification check
![](../__attachments/1082753296/Detayl%C4%B1%20Dinamik%20Analiz%20Yap%C4%B1%20Kat%20kutlesi-Kucuk.png?inst-v=e297b259-93ee-4526-bee7-06170d782e4d)
