Text Settings
Text settings are accessed from the Text Settings command. The font color, height, type and distance between lines are adjusted according to the project design.
Location of the Text Settings Dialog
Text Command Settings

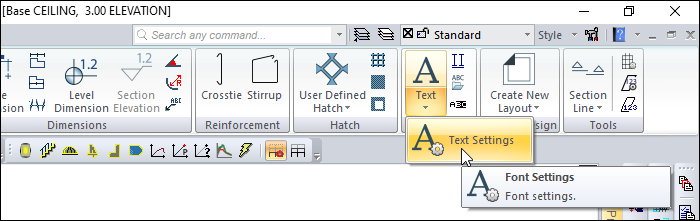

You can access it under Text in the Drawings tab of the Ribbon menu.
You can also access it by clicking the Settings icon in the text auxiliary toolbar that appears after the text command is run.

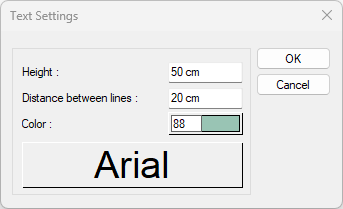

Text Settings Dialog
Specifications |
|---|
Height  The height of the text is entered. |
Distance between lines  The distance between the two text lines is entered. |
Color  The color of the text is chosen. When the color box is clicked, the appropriate color is selected from the window that opens. |
 When the button is clicked, the "Font Settings" dialog appears. Font of information text can be set here. |
Text Object Settings

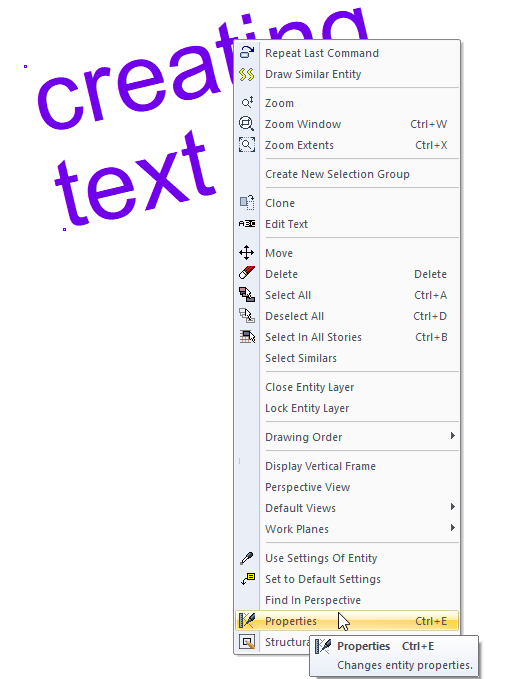

Select the text you want to enter its settings, click the right button of the mouse and click the Properties line from the menu that opens. Edit text dialog which include the text settings, will open.
Also Double-clicking on a text opens the edit text dialog which include the text settings.

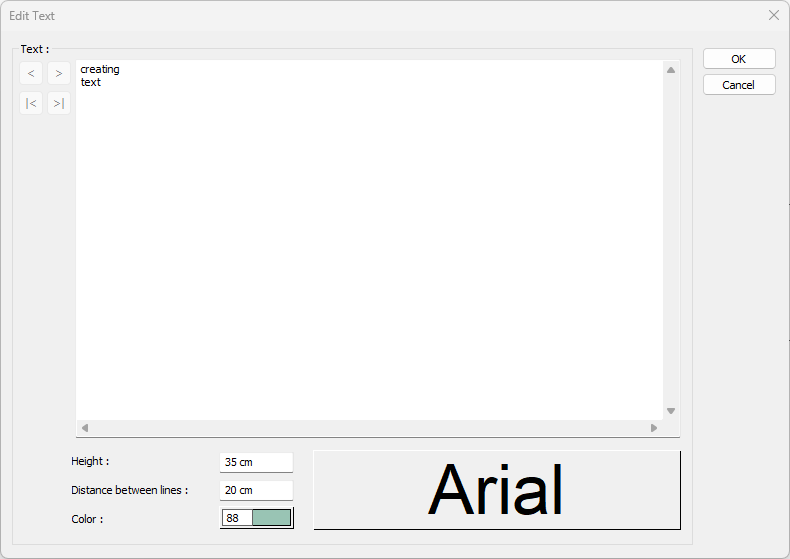

Edit Text Dialog
Specifications |
|---|

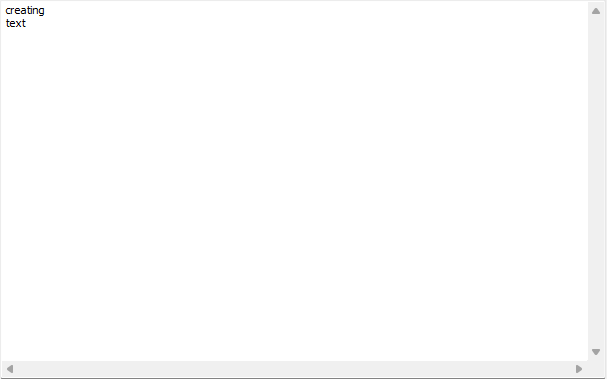

Editing the text  Text editing is done. Changes such as height, color, font, etc. are not reflected here. |
Text selection  When you want to change more than one text by selecting it, the selection keys are activated. You can switch between the next, previous, last and first texts. |
Height  The height of the text is entered. |
Distance between lines  The distance between the two text lines is entered. |
Color  The color of the text is chosen. When the color box is clicked, the appropriate color is selected from the window that opens. |
 When the button is clicked, the "Font Settings" dialog appears. Font of information text can be set here. |
