Remove a Nodule

The remove nodule command removes a selected nodule from the defined space truss. This command is used if some nodules are not needed after the space truss has been drawn.

Location of the Remove Nodule Command

It is available in the Space Truss utility toolbar that appears on the screen after the Space Truss command is run.

Usage Steps

  • Click the Space Truss icon under the Steel menu with the left mouse button.

  • Click the Delete Nodule command in the toolbar that opens.

  • In the plan, first click to select the space truss and then click the point you want to delete.

Usage step

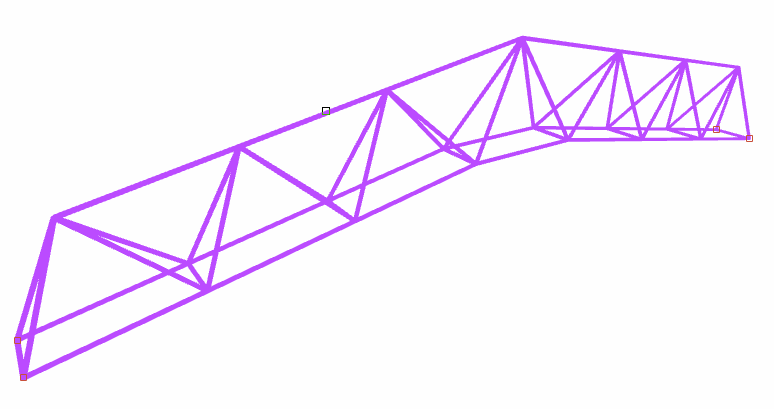

Selecting the space truss when in the remove nodule command

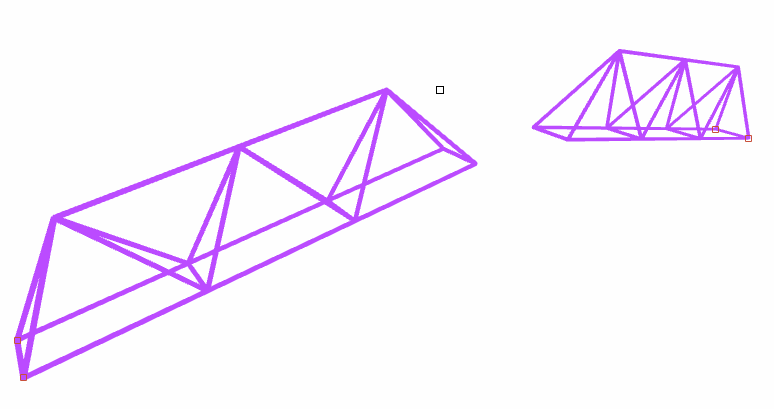

Selecting the element you want to remove
