Reset Jacket Edge command is used to cancel the jacket of the column.

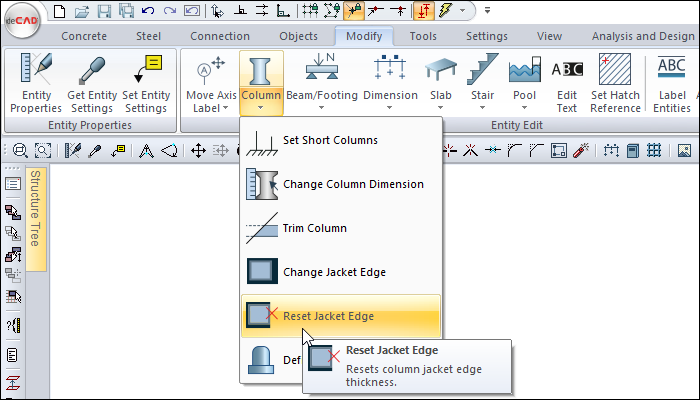

Location of Reset Jacket Edge command

You can access it under the Modify tab Entity Edit in the ribbon menu .

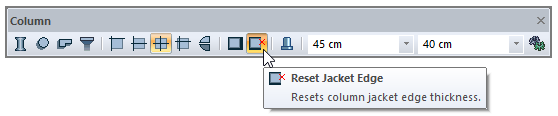

You can also access the column toolbar.

Usage Steps

  • Click the reset jacket edge icon.

  • Click on the edge of the column to reset the jacketing.

  • The jacket on the edge you click will be cancelled.

Usage step

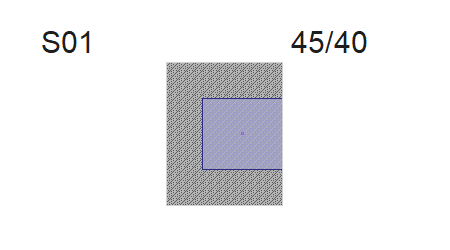

Column before jacketing edge is reseted

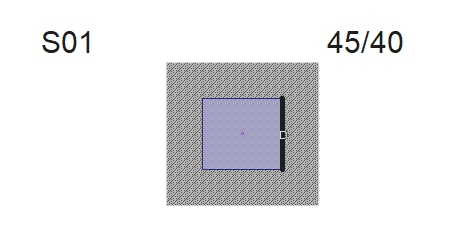

Selecting the side of the column to be reset from the jacketing

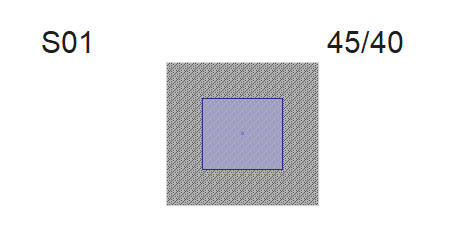

Column after jacketing edge is reset
