Create a Circle Zone Edge

With the Circle Zone Edge command, the zone edge is defined in a circular form.

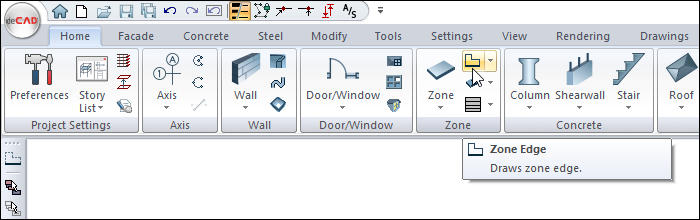

Location of Circle Zone Edge Command

Ribbon menu Home tab Zone under the heading located, after entering the Zone Edge command opened Zone Edge can be accessed from the toolbar.

Usage Steps

  • Click the circle zone edge icon.

  • Click the point you have set as the center with the left mouse button.

  • When you move the mouse, a circular form will appear at the tip of the cursor.

  • After determining the radius of your circle, click the left mouse button.

  • A circle zone edge will be formed.

  • Exit the command by pressing the Esc key on the keyboard. You can now define the zone.

Usage step

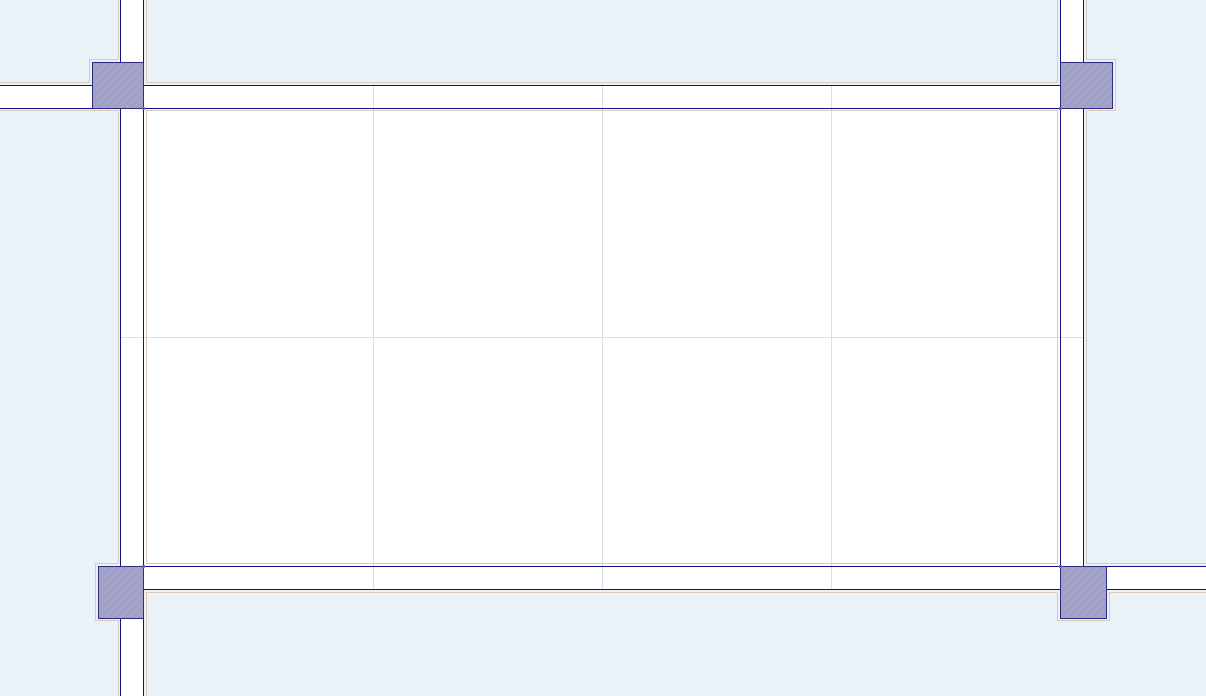

The area to be drawn circle zone edge

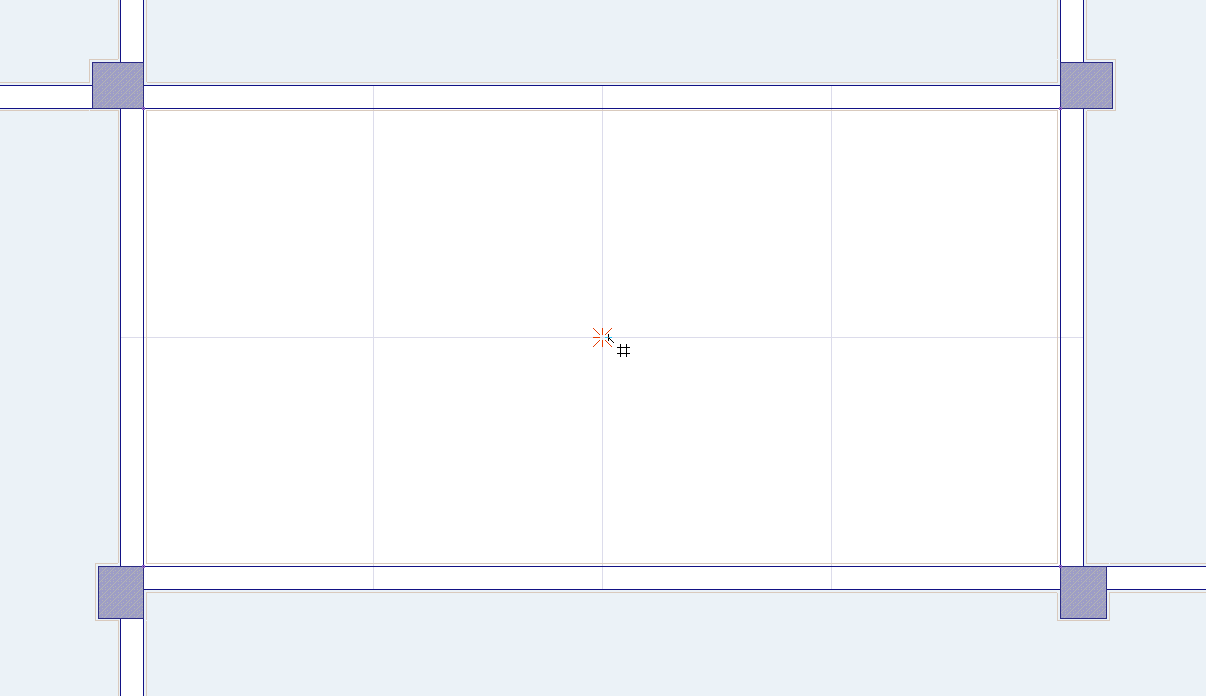

Determination of the center of the circle zone edge

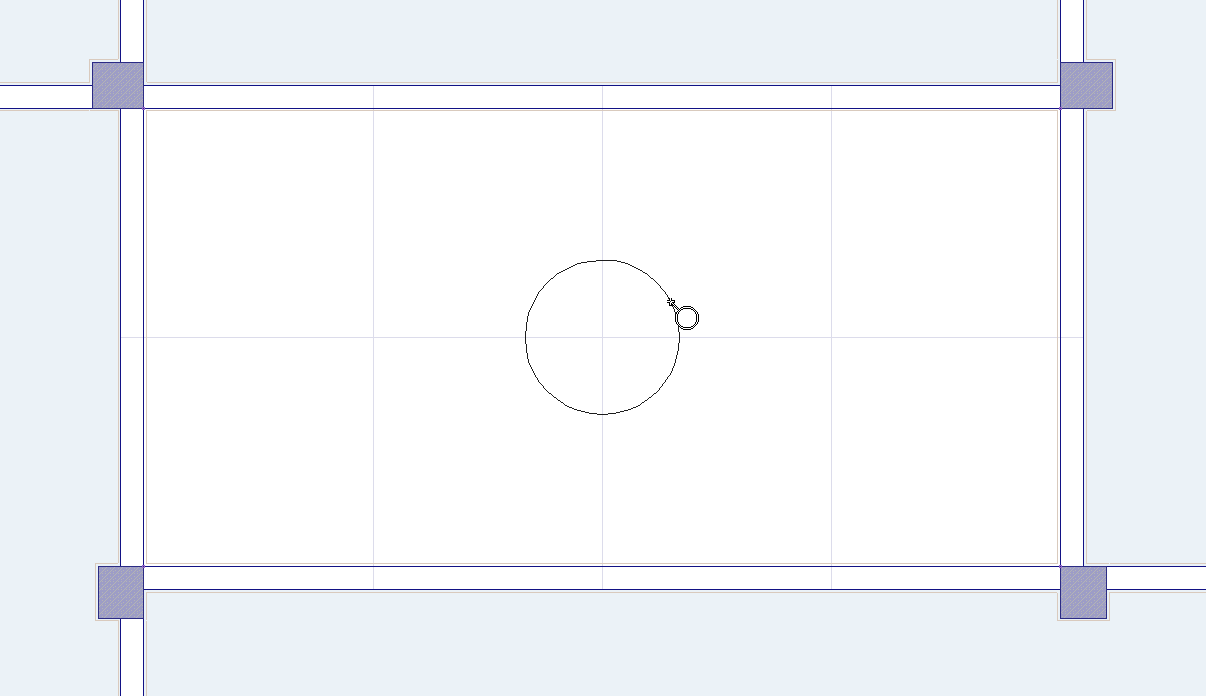

Creation of circular form preview

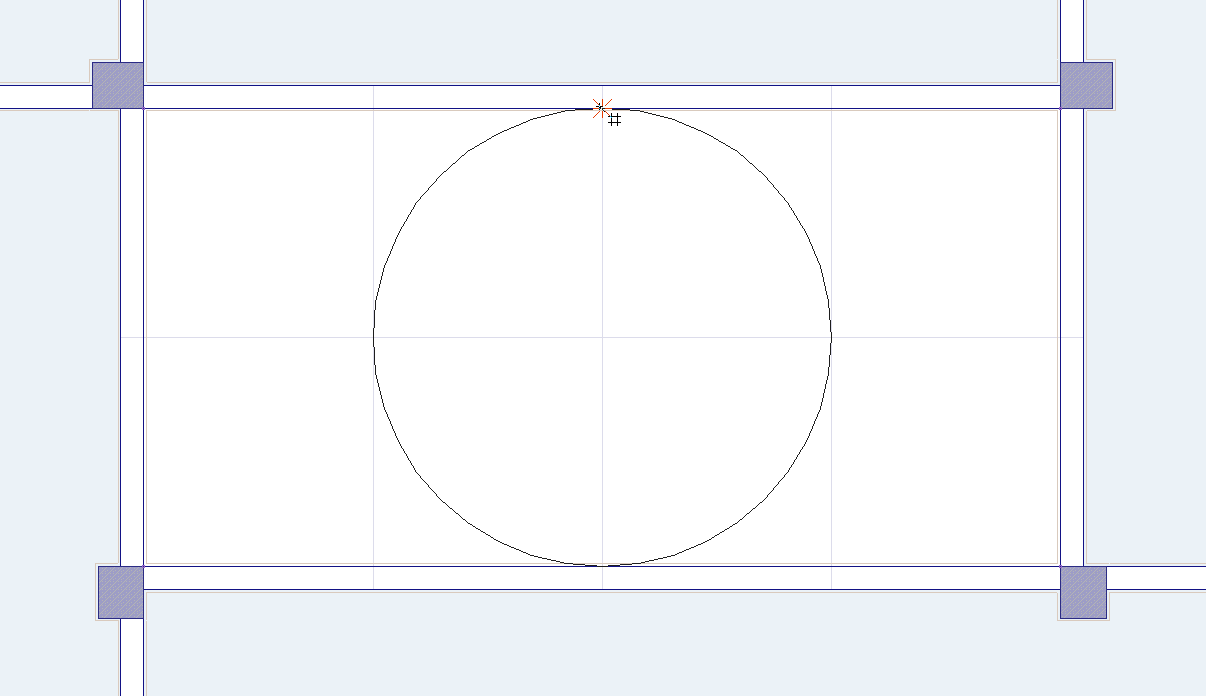

Determination of the radius of the circle zone edge

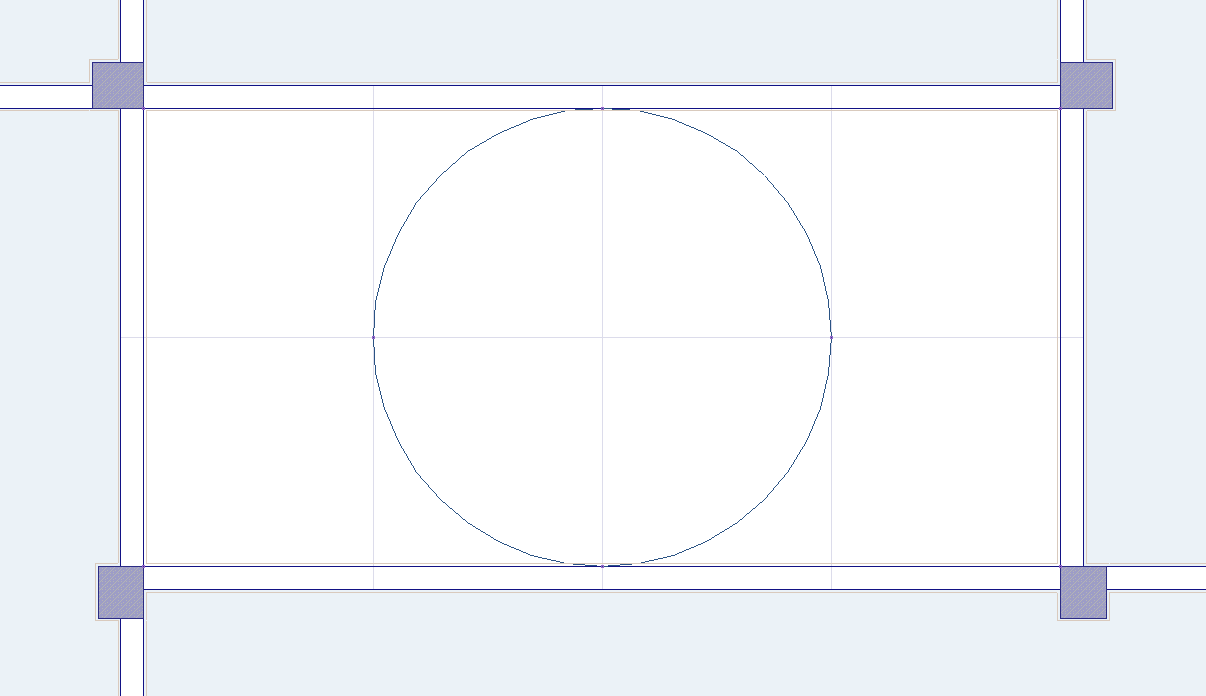

Formation of circle zone edge

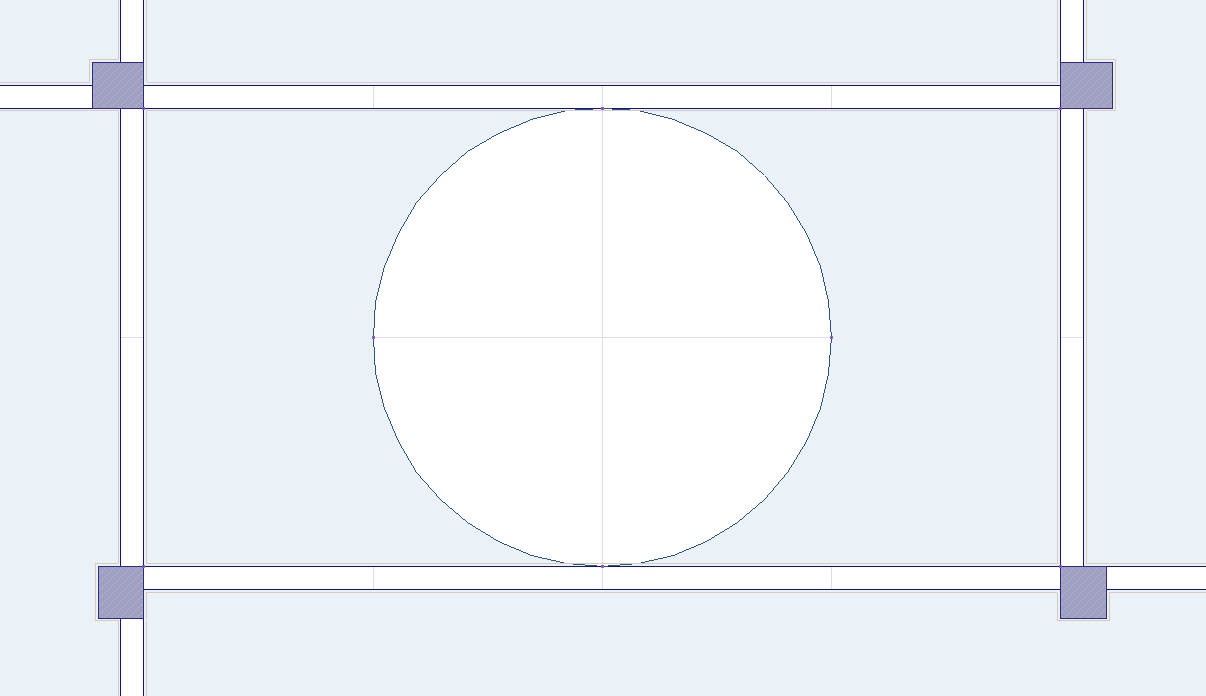

After the zone is created, the area
