Get Entity Settings/Set Entity Settings
With the Get Entity Settings command, the settings of an existing object are copied. The settings copied are given to another object with the Set Entity Settings command. At the same time, new entities are drawn with the same settings as the copied entity settings.

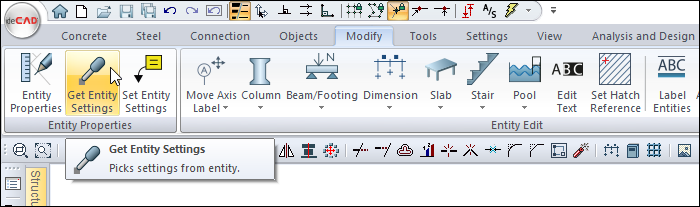

Location of Get Entity Settings Command
You can access it from the Entity Properties title of the Modify tab in the Ribbon menu .

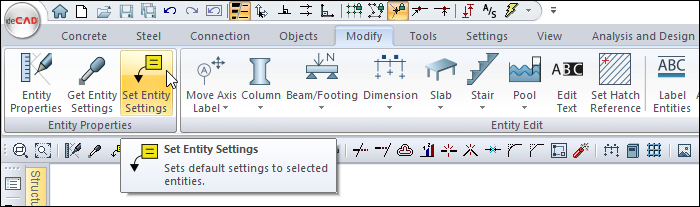

Location of Set Entity Settings Command
You can access it from the Entity Properties title of the Modify tab in the Ribbon menu .
Usage Steps
Click the Get Entity Settings command.
Click the object whose setting you want to copy.
Click the Set Entity Settings object command.
Click the object you want to give settings to.
Usage step |
|---|

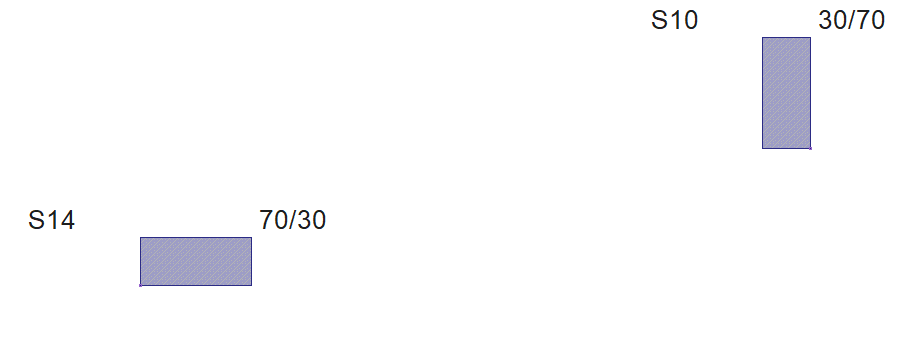

Columns to be changed  |
Copying object settings from column S14  |
Giving the object settings to the S10 column  |

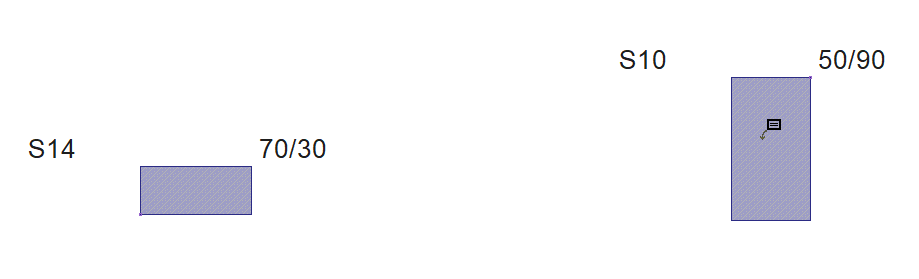

Columns after changing settings  |
