T-Plate Connection Design Report

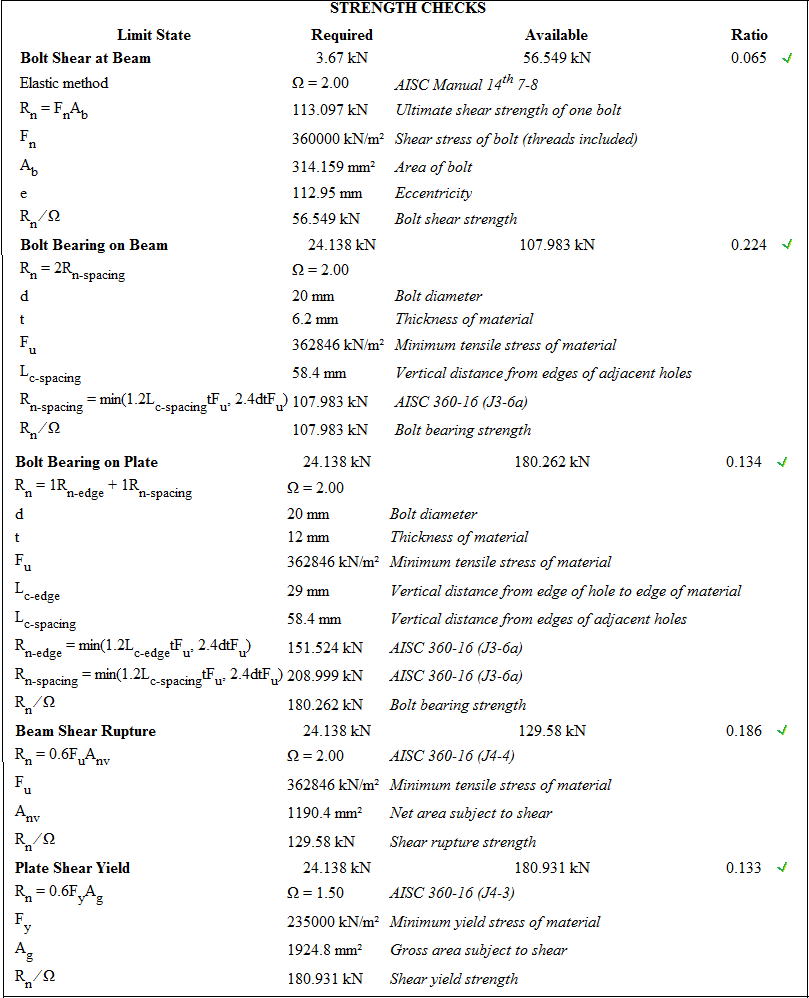

A sample of T-plate connection design according to AISC 360-16 report is given below.

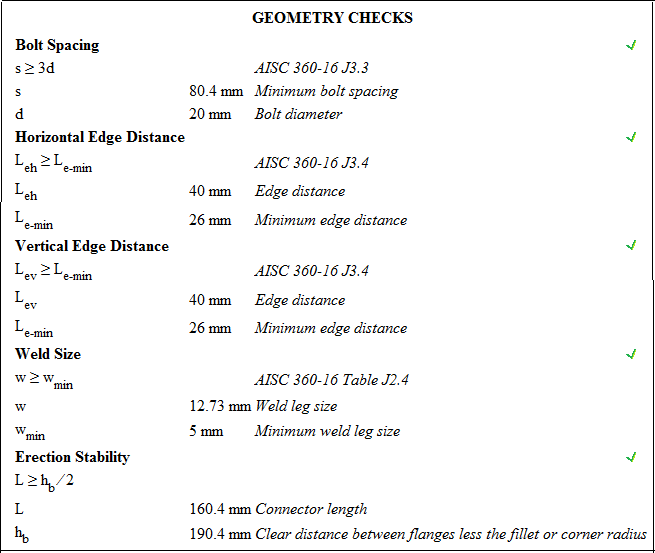

T-plate connection limit states and geometry checks are done automatically according to AISC 360-16.

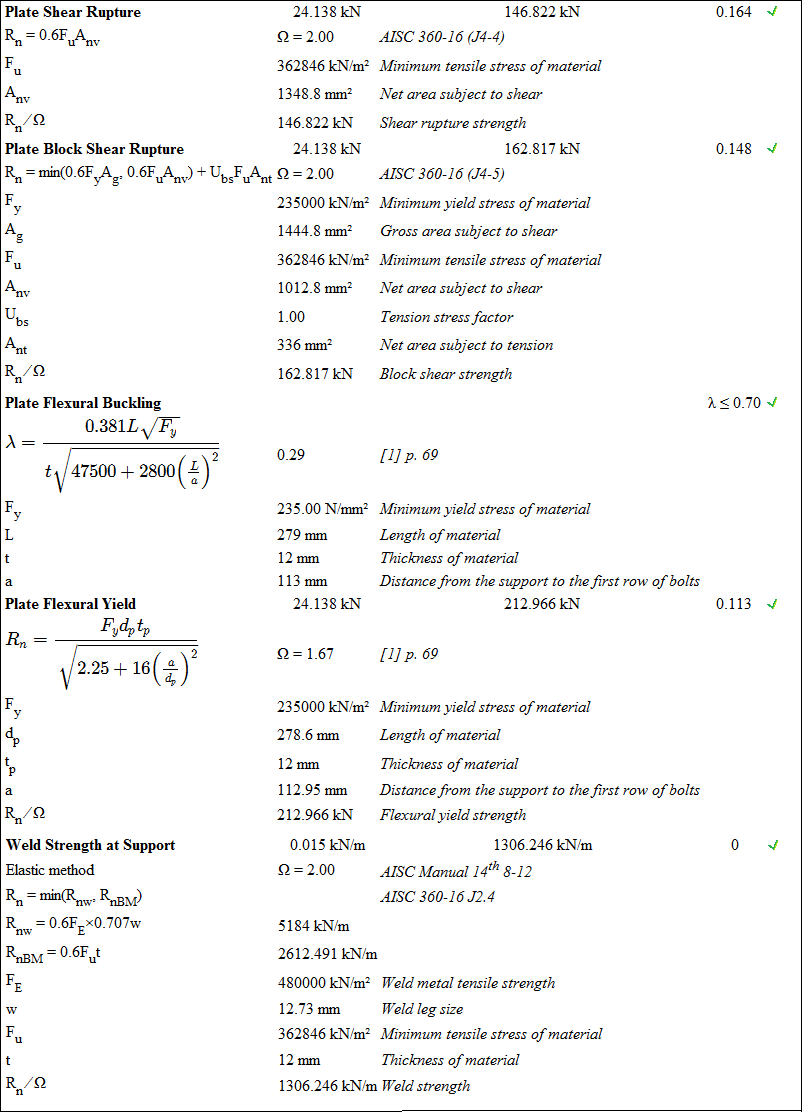

The block shear limit state is checked automatically according to AISC 360-16.
Limit states of single plate flexural yield, plate flexural bucking, and weld strength are checked automatically.
![](../__attachments/1128727950/1.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128727950/2.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128727950/3.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
![](../__attachments/1128727950/8.png?inst-v=f19fc7cc-758e-4997-b5f0-444a3286777e)
