The user can reflect their own menu to the ideCAD with customize. Arranges toolbars and menus as desired. It can create new toolbars, add or remove icons. Can add or remove commands from menus.

Location of Customize Command

The customization process is done in the Customize dialog. The user can open the Customize dialog in two ways.

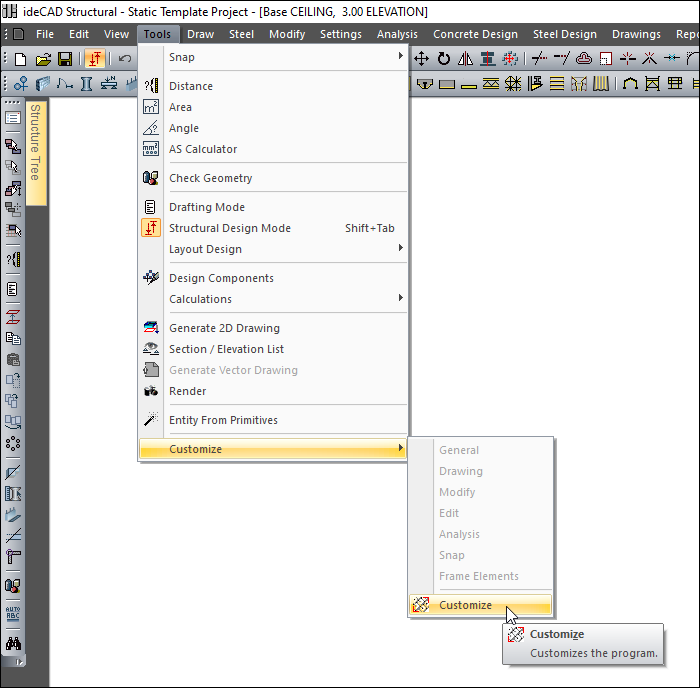

  • You can access it under the Tools menu Customize title.

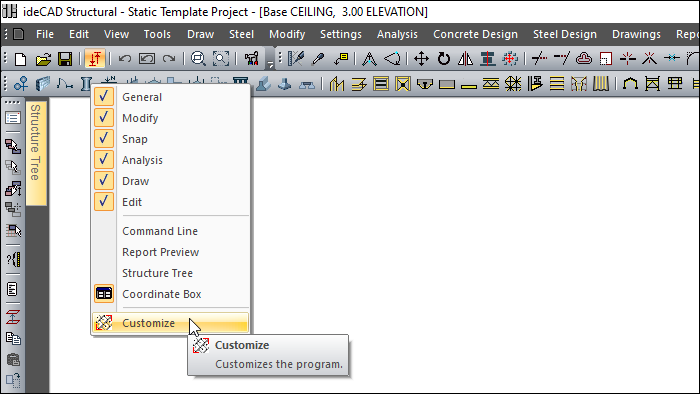

  • You can also click the right button of the mouse on any command to access the Customize command.

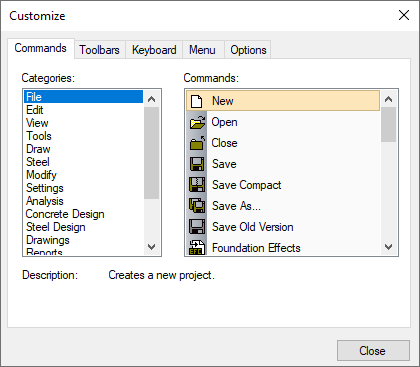

Commands Tab

You can drag any icon from the commands listed by category and drop it on the new / existing toolbar.

Specifications

Categories

Commands are categorized according to the menu order.

Commands

It contains commands in the selected category.

Description

Provides information about the selected command.

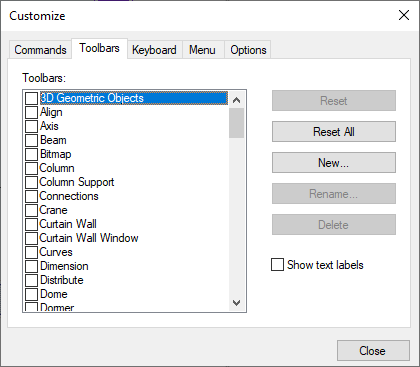

Toolbars Tab

Toolbars are listed on this tab. Some toolbars are highlighted in the list. Checked toolbars appear in the program. Otherwise it will not appear.

In addition, the program includes automatic toolbar management. Floating toolbars appear automatically, some are not, depending on the command being studied. For example, while in column command, column floating toolbar is opened by the program. It is closed after exiting the command.

The user opens the toolbars whenever they want and closes them whenever they want.

Specifications

Toolbars

Available toolbars are listed.

Reset

Resets the changes made in the menu.

Reset all

Resets all toolbars and menus.

New

Creates a new toolbar.

Rename

It changes the name of the newly added toolbar.

Delete

Deletes the selected toolbar.

Show text labels

The help that occurs when waiting on an icon in the toolbar for a while appears.

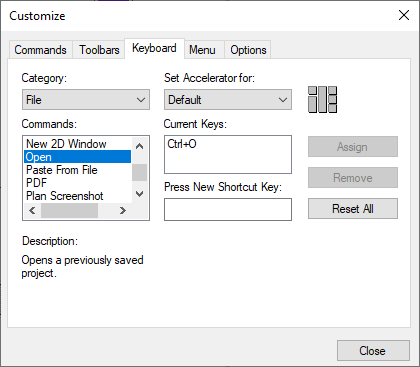

Keyboard Tab

The list of all commands appears in categories on the Keyboard tab. The user chooses the command they want. It gives information about the command in the description part. Shown if there are any shortcuts defined under available keys. The key or keys that they want to assign from the keyboard are pressed. Information on whether the assigned shortcut key is defined in another command is given under the Press new shortcut key section.

Specifications

Category

Commands are categorized according to the menu order.

Commands

It contains commands in the selected category.

Current keys

Displayed if there are any shortcuts defined.

Press new shortcut key

The shortcut to be newly defined is entered.

Description

Provides information about the selected command.

Assign

The new shortcut entered is assigned.

Remove

Cancels an assigned shortcut.

Reset all

Cancels all assigned shortcuts.

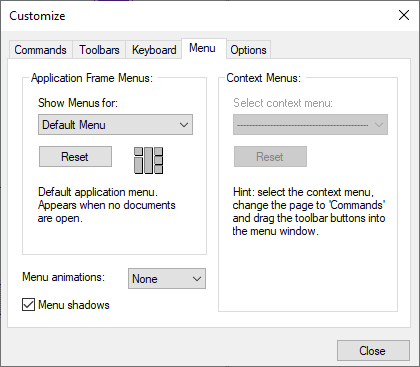

Menu Tab

Features of the display styles of the menus are included.

Specifications

Application frame menus

Clicking on Reset will bring the menu into its original state.

Menu animation

It adds animation to the opening of the lists in the menus.

Menu shadows

Provides a shaded image when hovering over lists.

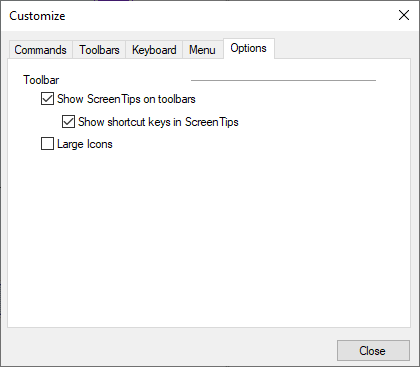

Options Tab

There are properties of the way they display toolbars.

Specifications

Show screen tips on toolbars

An explanation box appears when the icon is hovered.

Show shortcut keys in screen tips

An explanation box appears when the icon is hovered.

Large icon

The icons grow larger.
