Double Vault Truss

With the Double Vault command, the double vault truss type which is one of the prepared truss types is drawn quickly. Truss heights are adjusted from the truss settings.

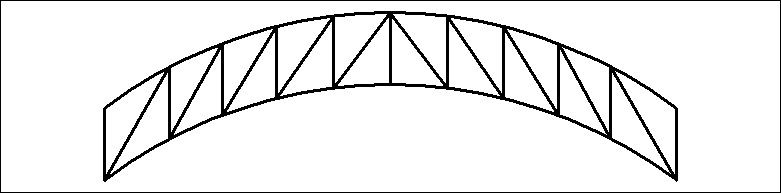

Double Vault Truss Schematic Drawing:

Location of the Double Vault Command

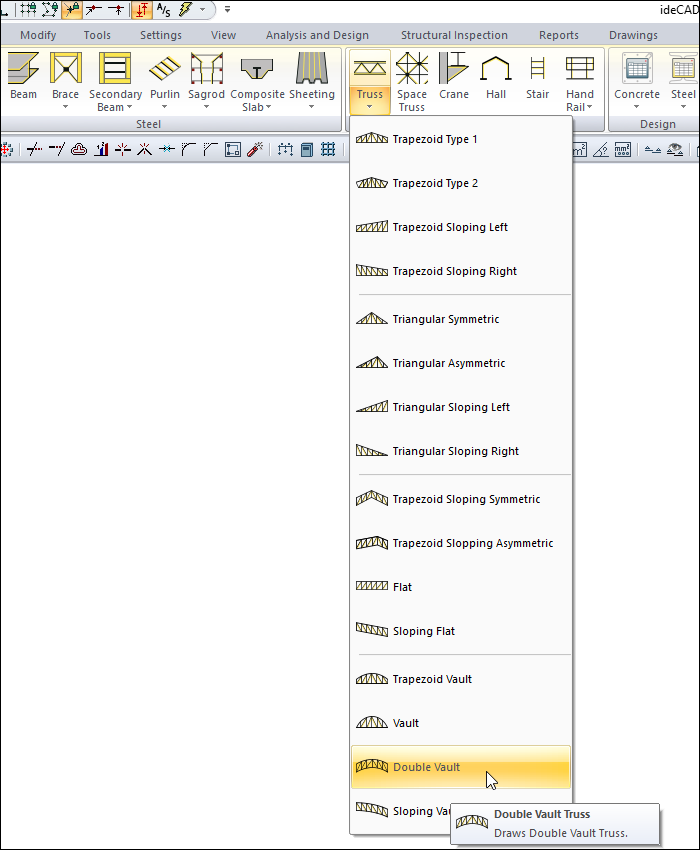

You can access it from the ribbon menu Steel tab Macro heading.

Usage Steps

  • Click on the double vault command.

  • Open the Truss Settings dialog by clicking the Settings icon from the Trusses toolbar .

  • In the Heights tab , enter the heights h1, h2, h3 and h4 for double vault.

  • Click the OK button to close the dialog.

  • Move the mouse cursor over the column. When the cursor changes shape, click the left mouse button. When the cursor changes shape, click the left mouse button.

  • After you have determined the first point of the truss, put the cursor on the second column and create your second point. The program will create trusses.

You can find detailed information about the truss settings from the truss settings heading.

Usage step

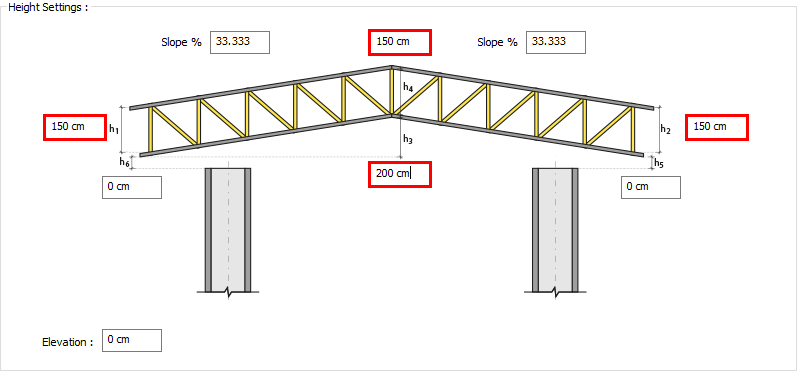

Entering 150 cm for h1, h2, h4 and 200 cm for h3 in the height tab of the truss settings

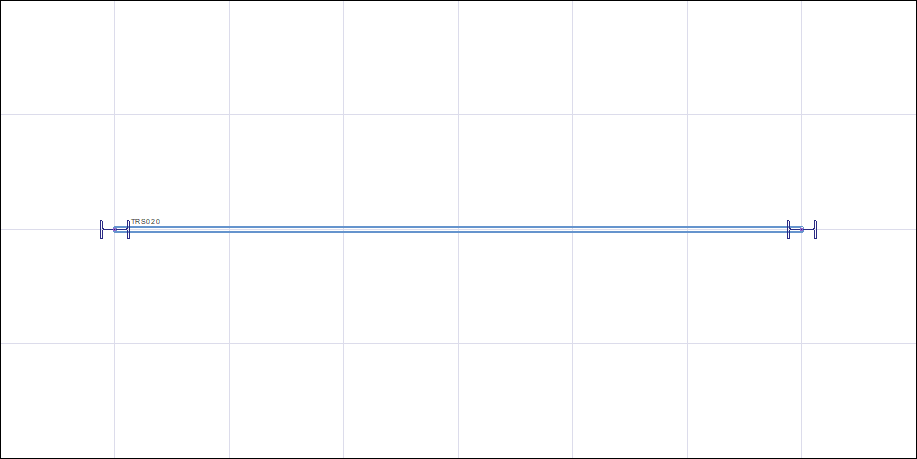

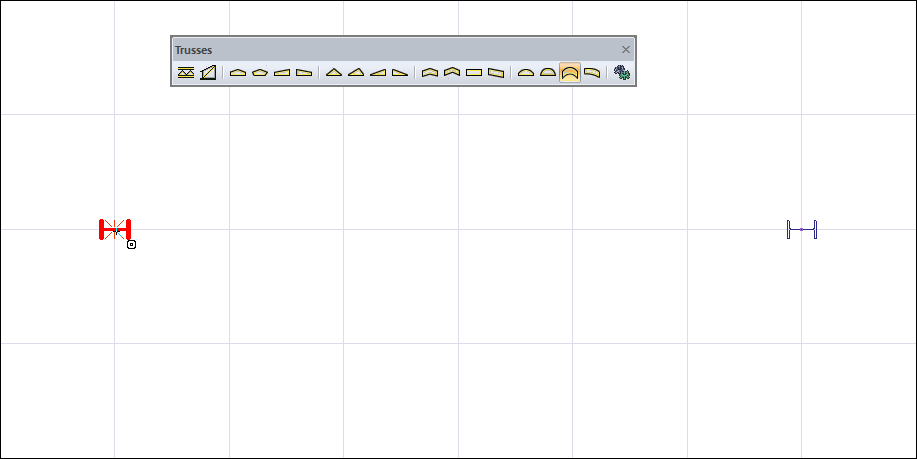

Creating the first point of the truss

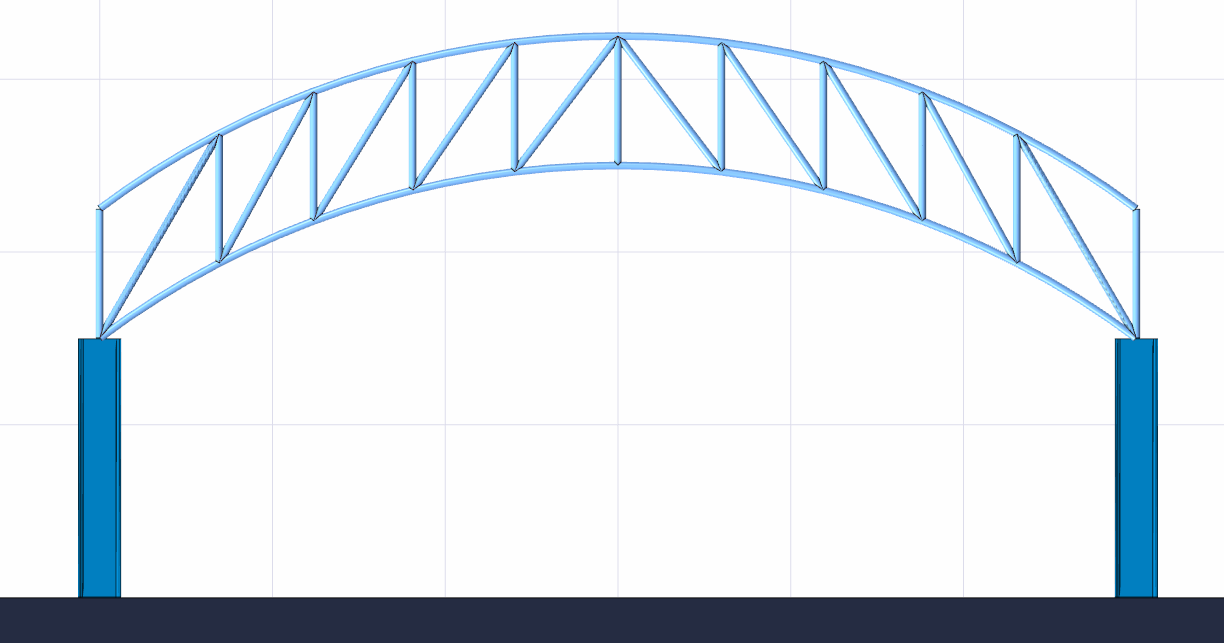

Determination of the second point of the truss and the formation of the truss
