Creating a Box

With the box command, a box is created from 3D objects.

Location of Box Command

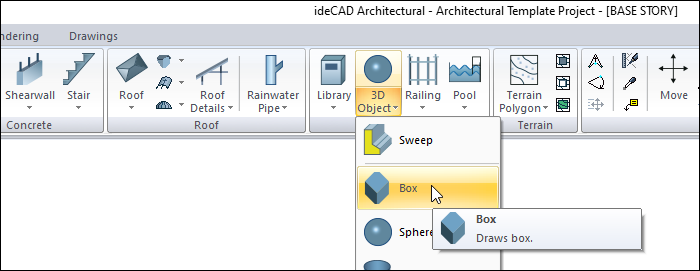

You can access it under the ribbon menu Home tab Entities title.

Usage Steps

  • Click the Box icon in the ribbon menu .

  • The 3D Geometric Objects toolbar will open. Enter the height of the box object in the value box.

  • Click the left mouse button to create your first point.

  • Your second point will define the edge of your box.

  • When you create your third point, your box object will also be created with.

Usage step

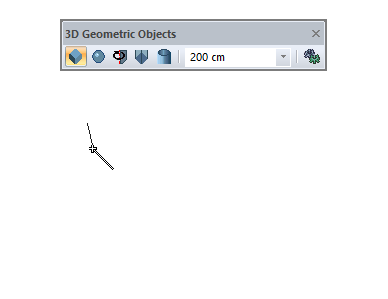

Value the 3D geometric objects toolbar height box

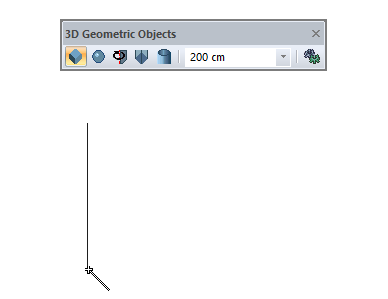

Creating the first point of the box

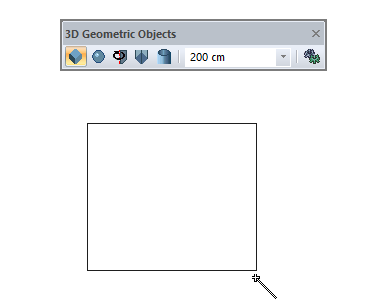

Formation of the second point

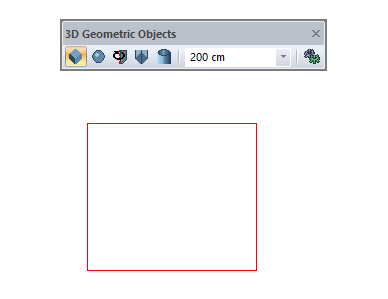

Creation of the third point

Created box
