Creating an Inclined Beam

With the right delta elevation feature, an inclined beam is formed by giving the elevation value to the right end of the concrete beam.

The inclined beam is also created with the Incline Objects command.

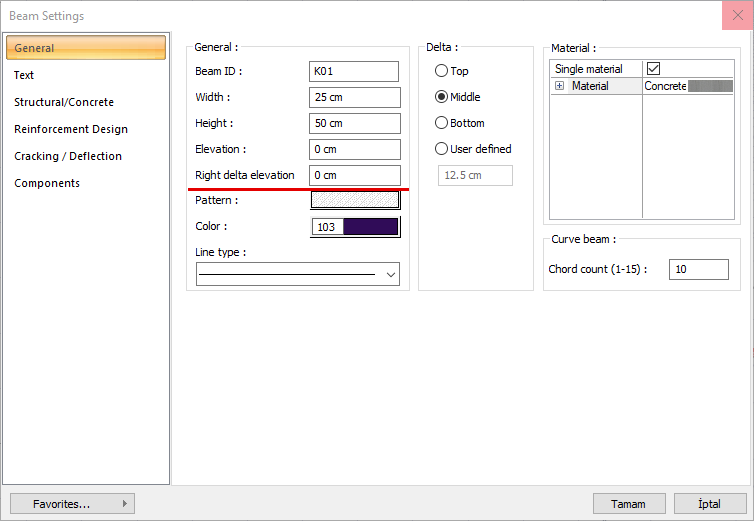

Location of Right Delta Elevation Feature

You can access the right delta elevation feature from the Beam Settings dialog.

Usage Steps

  • Select the beam you will incline and enter its settings.

  • Enter the elevation value in the right delta elevation line.

  • Click the OK button to close the dialog.

  • Your beam will change according to the value you enter.

  • You can adjust the elevations after you have defined the beams, or before you draw the beams.

Usage step

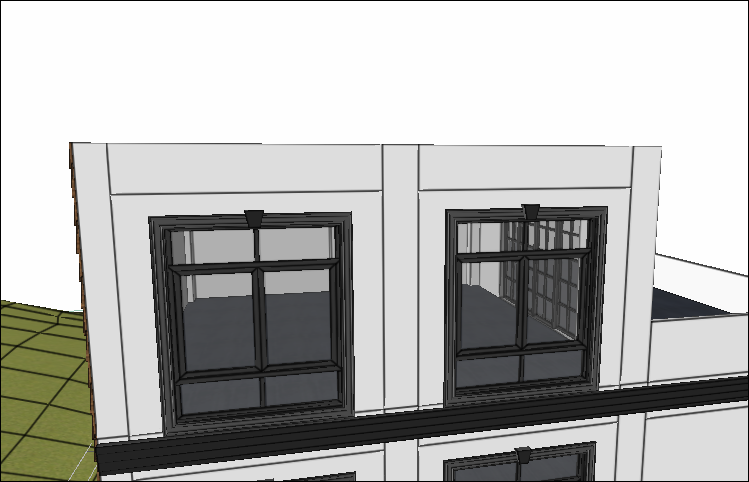

Beam before right delta elevation changes

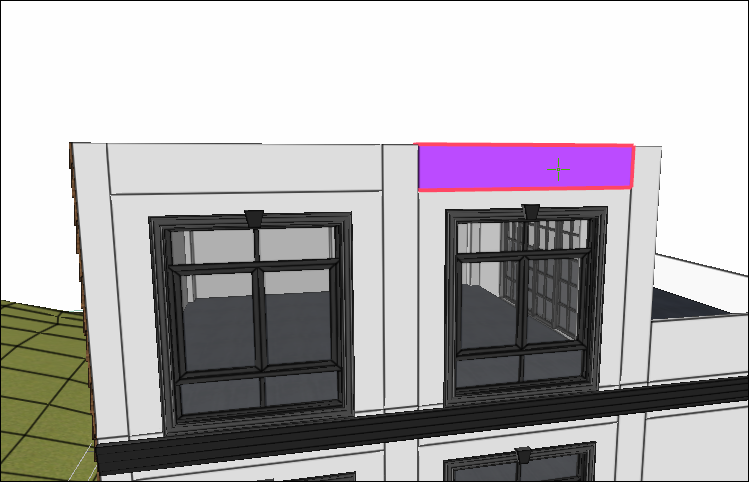

Choosing the beam to be inclined

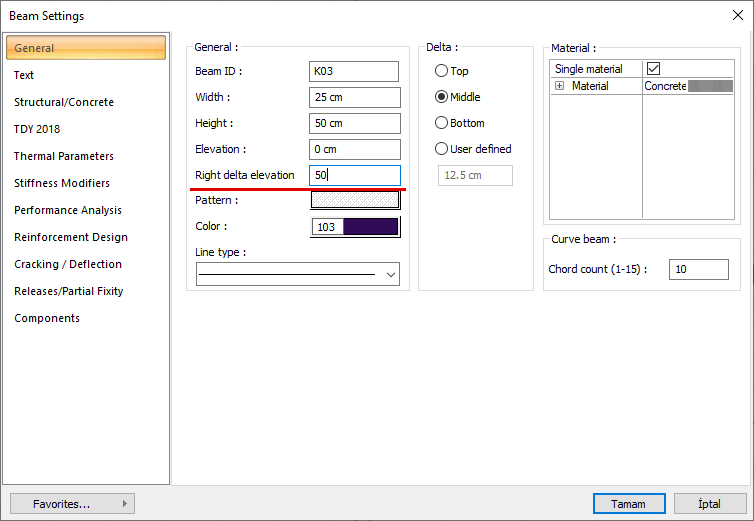

Entering a value to the right delta elevation

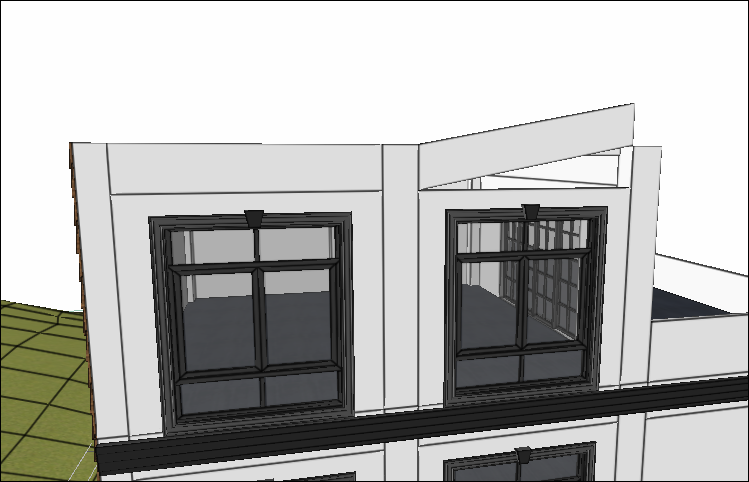

Beam after right delta elevation change
