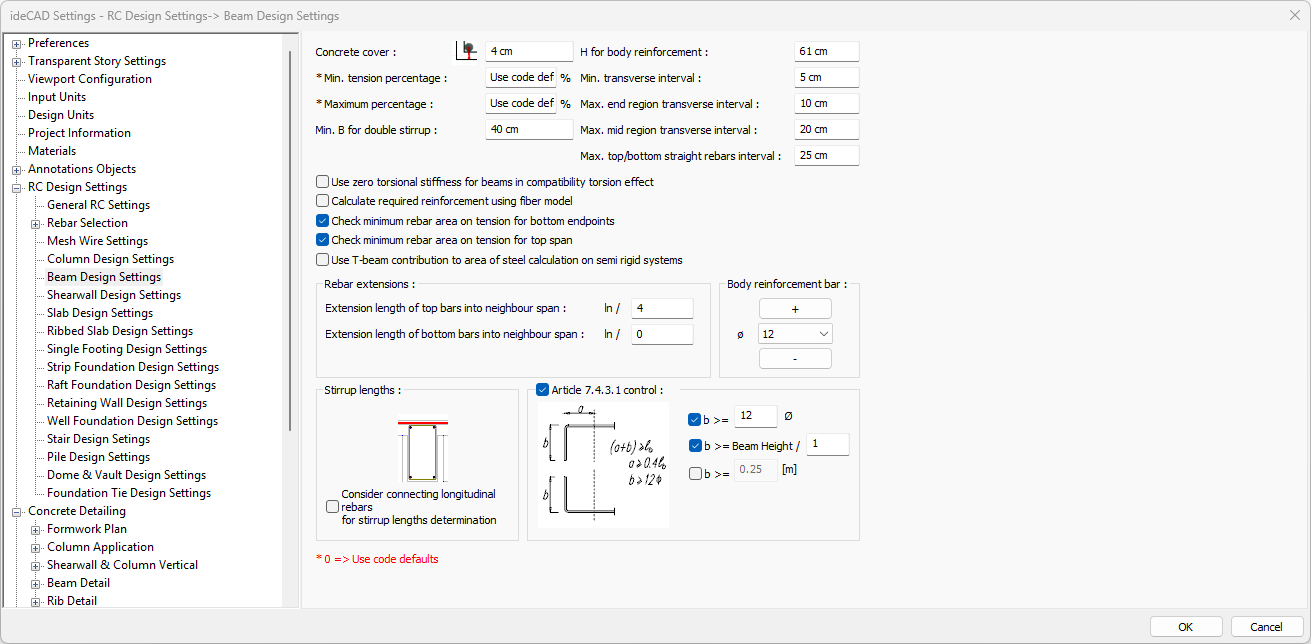

Beam Design Settings Section

Concrete cover

It is the distance from the center of gravity of the tension or compression rebar inside the beam to the outer face of the concrete.

Min. span tensile percentage

It is the parameter that determines the minimum rebar to be placed in the tension zone in the beam. This parameter is used at the bottom of the beam and the top of the beam support. Under no circumstances is the rebar selected less than the limit set by this parameter.

Max. percentage

It determines the upper limit of the tensile rebar (upper rebar in support, lower rrebar in the span) to be placed on the beam. Under no circumstances can the rebar be selected more than the limit specified by this parameter. If more rebar is required than the limit, the program gives the message "section insufficient" for the beam with more maximum strength.

Min. B for double stirrup

The beam width is compared with this parameter. As long as the beam width does not exceed the minimum width specified in this parameter, the beams are rebar with a double arm stirrup. Otherwise, they are equipped with 2 double-armed stirrups. Rebar is made for all beams in the project.

Also, if the double stirrup option is selected in the structural/concrete tab in the beam settings dialog, that beam is rebar with a double stirrup regardless of the min. B parameter for double stirrups. In other words, for which beam or beams this adjustment is made, double stirrups are thrown on only those beams and beams.

H for body reinforcement

If the beam height is more than the value specified in this parameter, the body rebar is placed on the beam.

Min. transverse interval

The spacing of the stirrup to be placed in the beam wrapping area is selected not less than the value specified in this parameter.

Max. end region transverse interval

The spacing of the stirrup to be placed in the beam wrapping area is selected so that it is not more than the value specified in this parameter.

Max. mid region transverse interval

The spacing of the stirrup to be placed in the beam mid region is selected so that it is not more than the value specified in this parameter.

Max. upper/lower straight bars interval

The beam width is divided by the value written in this line and the minimum assembly or flat rebar range to be placed on the beam is determined according to this value. In all conditions, at least two 12-gauge straight and assembly rebar are placed on the beam. In cases of double stirrups or bringing more than 2 rebars, the program selects straight and the number of assemblies as much as possible. For example, in a beam that requires 4 assemblies, 4 straight erbars are tried to be placed.

Body reinforcement bar

User is the diameter of the body rebar to be placed on the beams.

Use zero torsional stiffness for beams in compability torsion effect

If marked use zero torsional stiffness for beams in compability torsion effect, and the beam torsional moment of inertia is taken as zero.

Calculate required reinforcement using fiber model

If marked, the required longitudinal reinforcement area in reinforced concrete beams is calculated by defining appropriate concrete and reinforcement models and section fibers in the beam cross section.

Check minimum rebar area on tension for bottom endpoints

If it is marked, the minimum rebar area on tension for bottom endpoint of the support is controlled.

Check minimum rebar area on tension for top span

If it is marked, the minimum rebar area on tension for top span is controlled.

Extension length of top bars into neighbour span

The value of the part of the continuous beams whose top rebars are connected to the support, to be extended into the adjacent beam, depending on the beam clear span is determined from this line.

Extension length of bottom bars into neighbour span

The value of the part of the continuous beams whose bottom rebars are connected to the support, to be extended into the adjacent beam, depending on the beam clear span is determined from this line.

Article 7.4.3.1 control

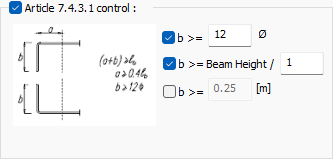

If TDY article 7.4.3.1 will be checked, this option is selected. With this control, the program checks the adequacy of the beam longitudinal rebars extended into the side columns. The minimum conditions are written in the diagram and can be changed if desired.

Consider connecting longitudinal rebars for stirrup lengths determination

While calculating the length of the beam stirrup, it is thought that it will be placed so as to surround the flat rebar at the bottom with the mounting at the top. When this option is checked, it is assumed that the flat rebars coming from the adjacent beam, if any, together with the top assembly are also included in the stirrup. As a result, the stirrup length is calculated with allowance for the rebars coming from the neighboring entrance at the top and the opening is drawn in that way.
