Setting Location of Beam

The location of the lower and upper beams are determined by lower and upper beam location settings. Since the walk ways fit on the lower beams, the location of the walk ways is determined at the same time when the locations of the lower beams are determined.

Location of Lower and Upper Beam Location Settings

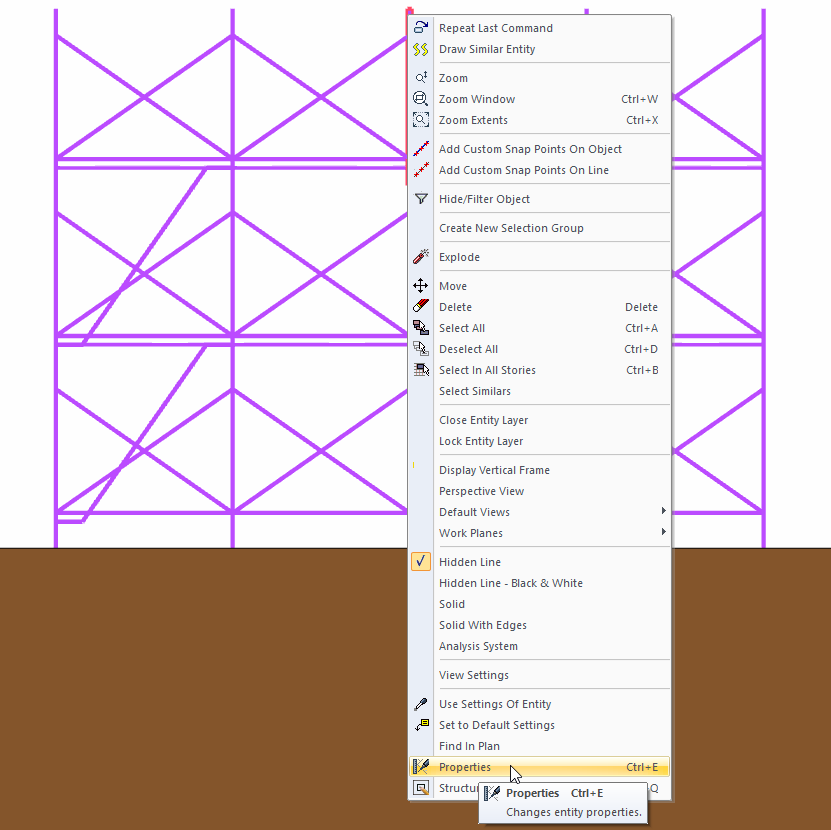

Select the scaffolding for which you want to change the beams and click the right mouse button. Click Properties from the right-click menu that opens .

You can also access the scaffolding settings dialog by double-clicking on your scaffolding with the left mouse button.

Usage Steps

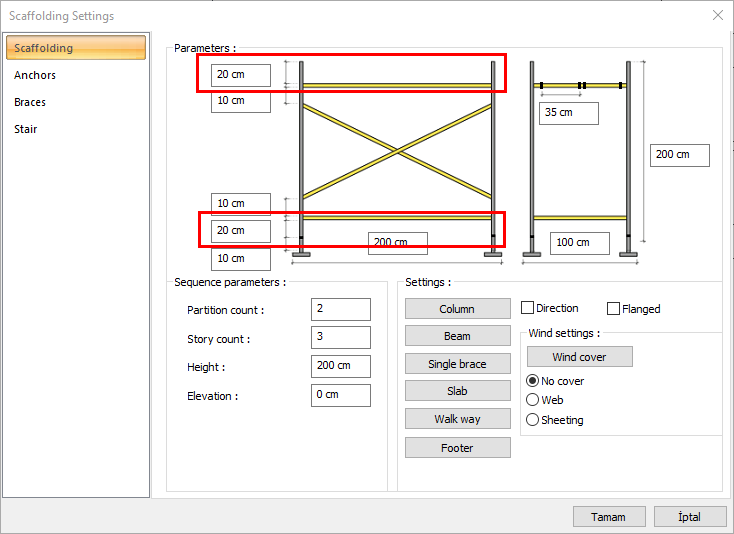

  • Enter the scaffolding settings dialog.

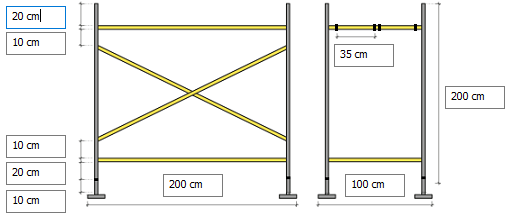

  • In the upper beam box, enter the distance value for the beam to the top header.

  • In the lower beam box, enter the distance value of the beam to the sub header.

  • The location of the lower and upper beams will change according to the value you enter.

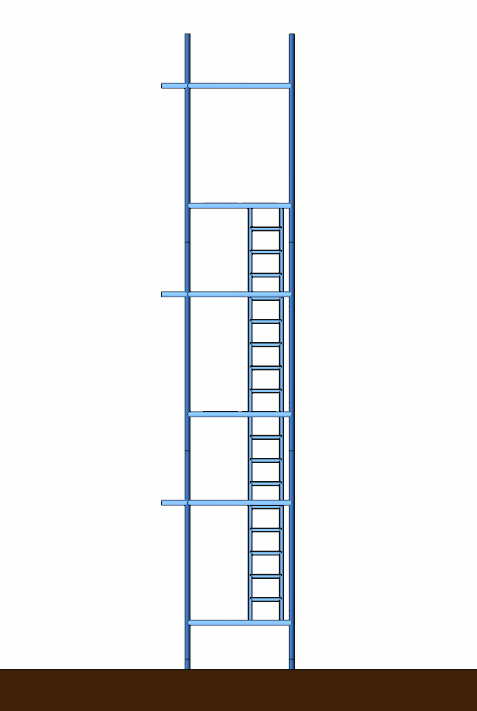

Scaffolding view before repositioning lower and upper beams

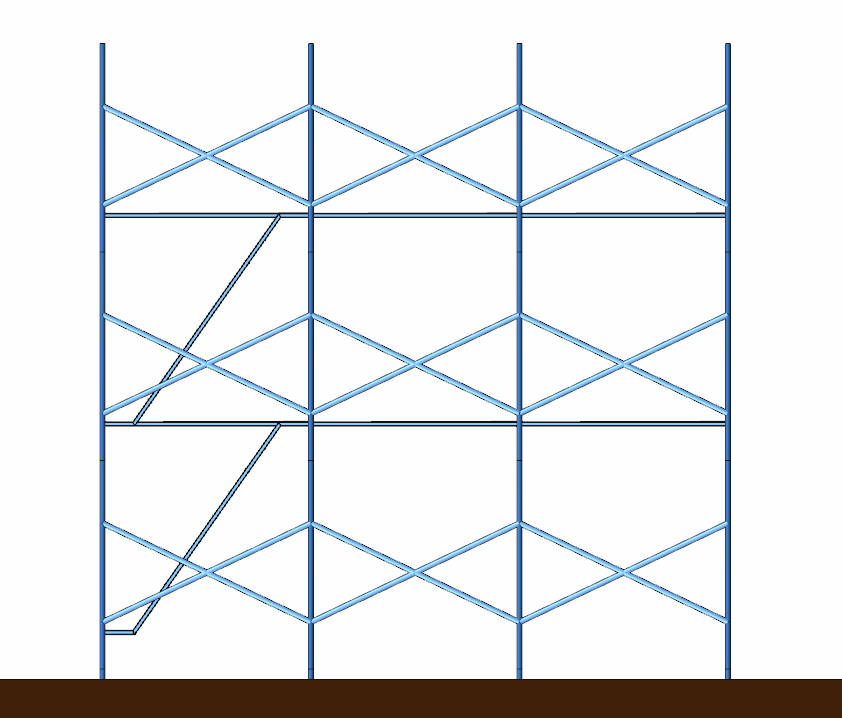

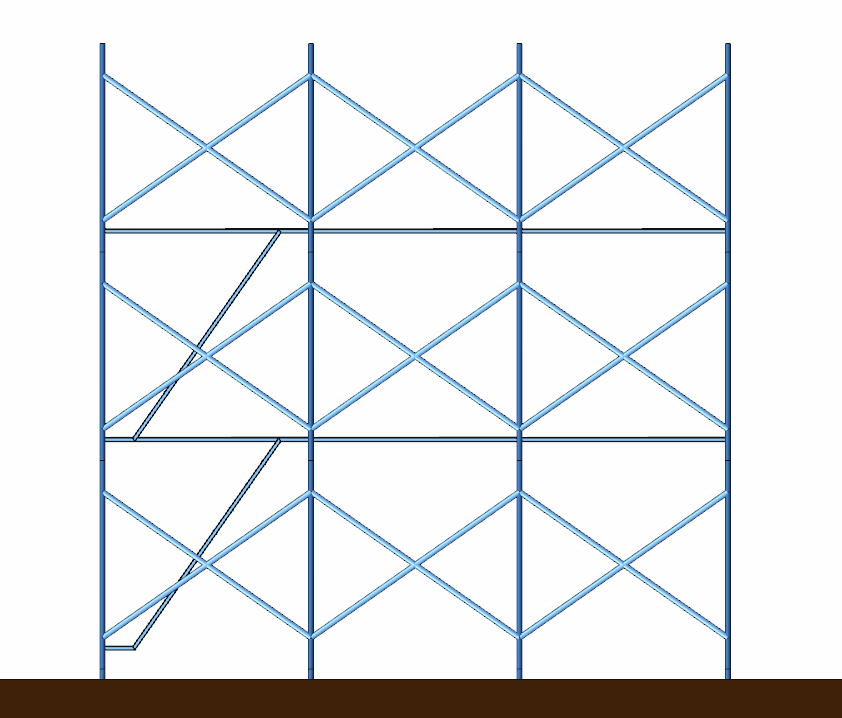

Scaffolding view after repositioning the lower beam to 35 cm

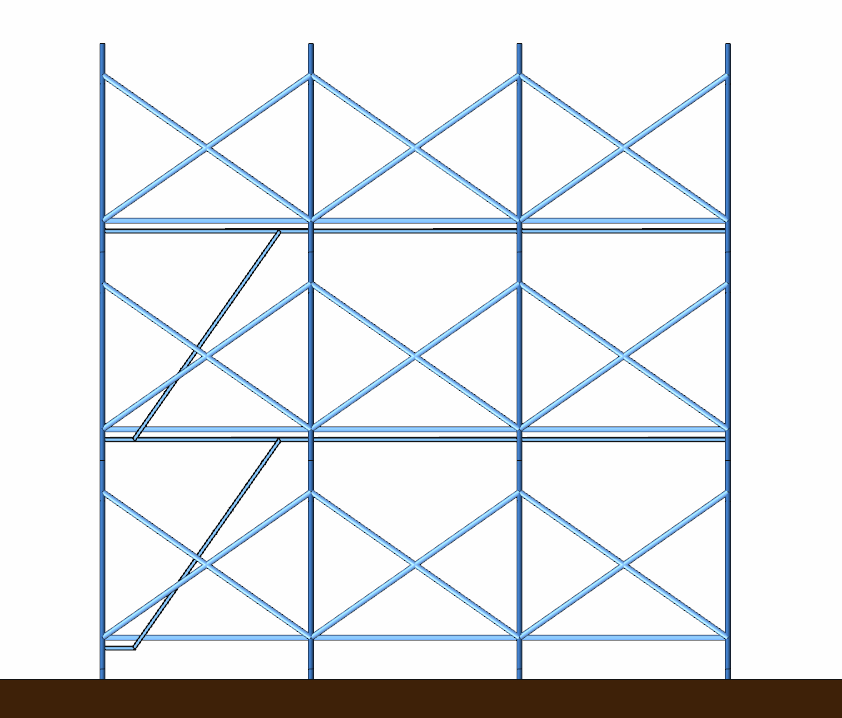

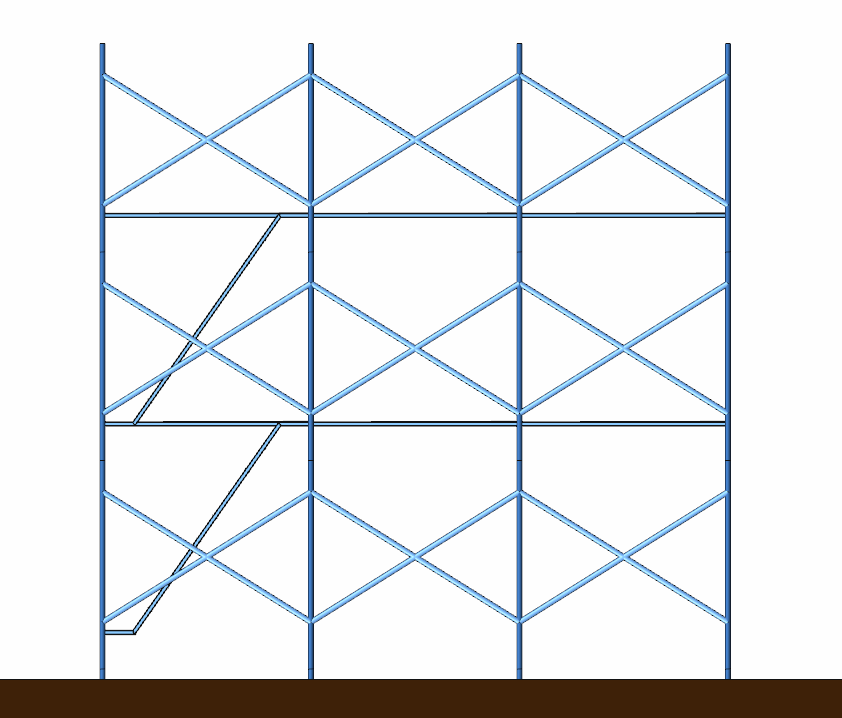

Scaffolding view after repositioning the upper beam to 50 cm


Back and Side Support Beams

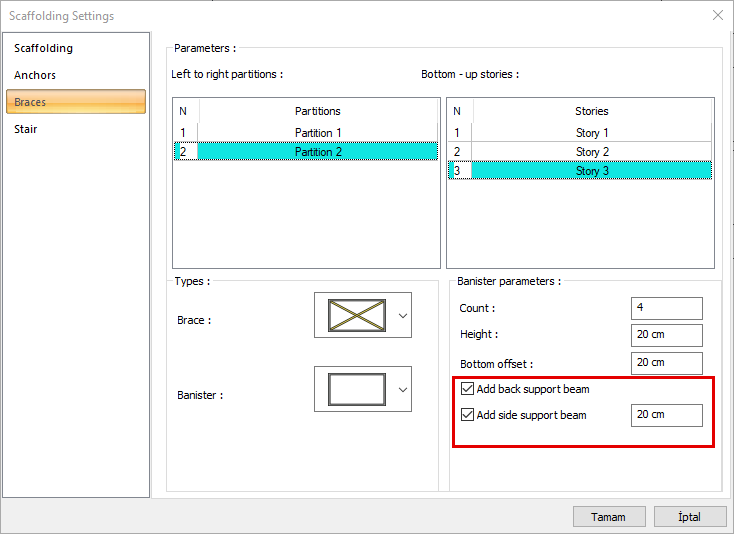

You can define the back and side support beams to your scaffolding by activating the scaffolding settings in the braces tab.

The back support beams will be placed at the ends of your braces. You can determine the location of your side support beams by entering the intended distance.

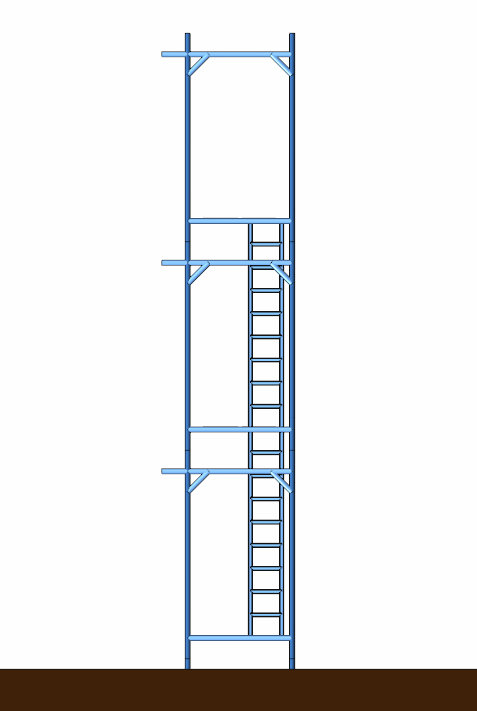

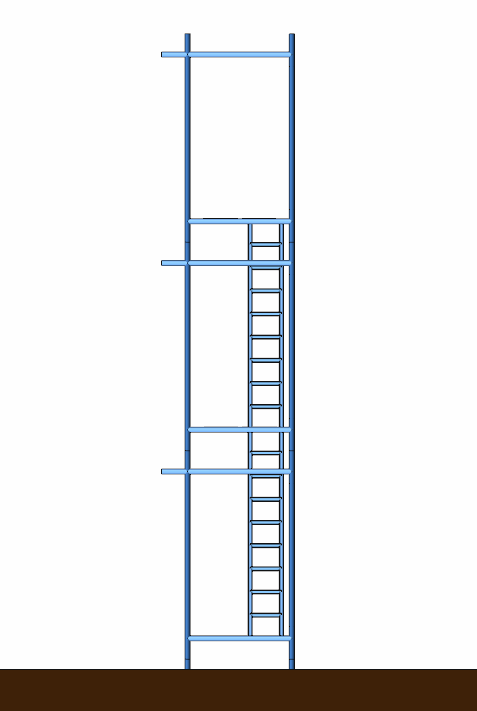

Scaffolding view before the back and side support beam is activated

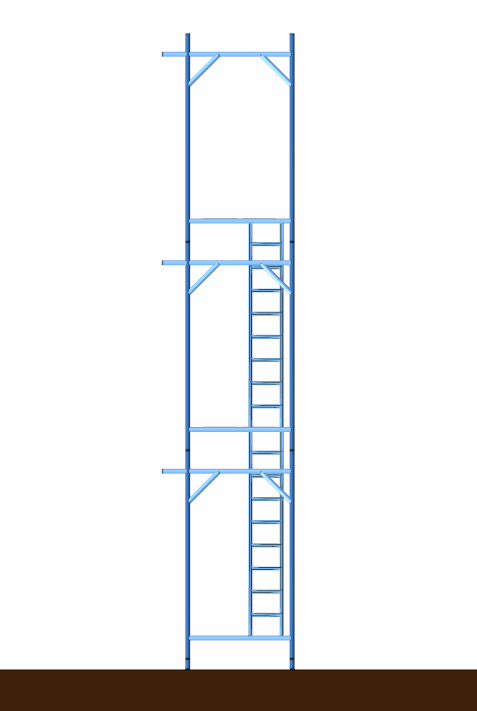

Scaffolding view after the back support beam is activated

Scaffolding view after the side support beam is activated (distance value 20 cm)

Scaffolding view after the side support beam distance value is determined as 35 cm
