Strip Foundation Design Setting Section

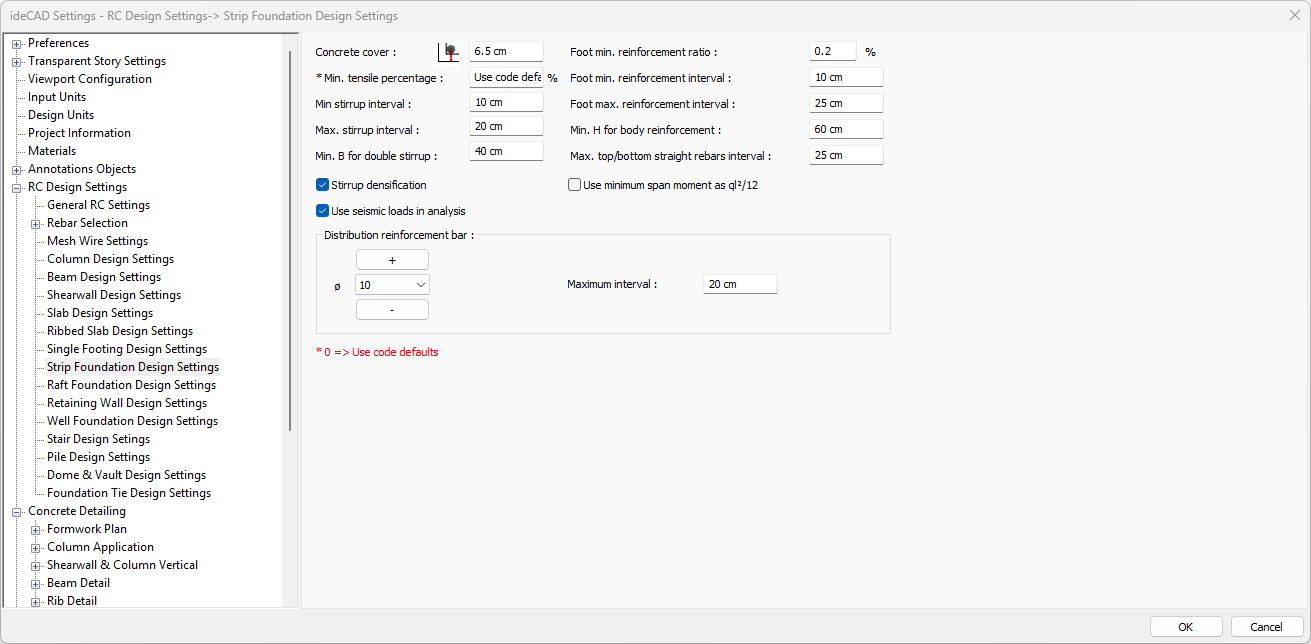

With the Strip Foundation Design Settings, the design parameters used in the Concrete Strip Foundation Design are determined. Concrete cover, maximum and minimum stirrup interval, foot reinforcement percentage etc. parameters are determined from the strip foundation design settings window.
![](../__attachments/2378236388/image-20231107-114725.png?inst-v=5c738f36-5d0a-4235-b600-0cef56c14e9d)
Specifications |
---|
Concrete cover ![]() It is the distance from the center of gravity of the rebar inside the foundation beam to the outer face of the concrete. |
Min. tensile percentage ![]() It is the parameter that determines the minimum rebar to be placed in the tension zone in the foundation beam. This parameter is used at the bottom of the span of the foundation beam and at the top of the support of the foundation beam. Under no circumstances can the rebar be less than the limit set by this parameter. In addition, the control is made so that the minimum draw ratio is greater than 0.8 fctd / fyd. |
Min. stirrup interval ![]() In the program, the spacing of the stirrup to be placed on the foundation beam is selected not less than the value specified in this parameter. |
Max. stirrup interval ![]() In the program, the spacing of the stirrup to be placed on the foundation beam is selected so that it is not more than the value specified in this parameter. |
Min. B for double stirrups ![]() The width of the foundation beam is compared with this parameter. As long as the width does not exceed the minimum width specified in this parameter, the foundation beam is equipped with a double arm stirrup. Otherwise, a stirrup with double arms is opened every 40 cm. |
Foot min. reinforcement ratio ![]() It is the parameter that determines the minimum reinforcement to be put on the ampatement on a strip foundation. Foot rebar cannot be less than the limit specified by this parameter under any circumstances. The calculation rebar is compared with the calculation rebar found from the minimum rebar moment. |
Foot min. reinforcement interval ![]() In the program, the spacing of the rebar to be placed in the foot on a strip foundation is chosen not to be less than the value specified in this parameter. |
Foot max. reinforcement interval ![]() In the program, the spacing of the rebar to be put into the foot on a strip foundation is selected not to be more than the value specified in this parameter. |
Min. H for body reinforcement ![]() If the height of the foundation beam is higher than the value specified in this parameter, the body rebar is placed on the foundation beam. |
Max. mounting + straight interval ![]() The beam width is divided by the value written in this line and the minimum number of assembly or flat rebar to be placed on the beam is determined according to this value. |
Stirrup densification ![]() If it is marked, the stirrup densification is made in a gap equal to half of the stirrup gap placed in the opening in the support area on a strip foundation. If it is not marked, the stirrup is placed on the strip foundation support at the same distance as the opening. |
Use seismic loads in analysis ![]() In the foundation calculation, in addition to the column effects caused by vertical (fixed and mobile) loading from the superstructure, the column effects due to seismic loads are also taken into account and the foundation calculations are made according to the most negative combination. If not checked, only column moments from vertical loading are taken into account. |
Use minimum span moment as ql2/12 ![]() If this option is selected, the opening moment in strip foundations is assumed to be at least the moment until the span = q * l * l / 12. The rebar design is made according to this moment. If the opening moment calculated from the calculation is greater than q * l * l / 12, the opening moment calculated from the calculation is used in the design of the rebar. l = Strip foundation clean span |
Distribution equipment ![]() The diameter of the distribution rebar to be used is specified. |
Maximum interval ![]() In the program, the range of the distribution (distribution) equipment to be placed on the foot of the foundation is selected so that it is not more than the value specified in this parameter. |
